Protective cap 3.9 | Pure orange; RAL 2004

morepic-1

morepic-2

Protective cap

Item no. 6003750 | EAN 4012195872887

Item no. / Types

Wire diameter

Colour	Pure orange; RAL 2004

Product description

Product description

Protective cap to cover cut wire ends of mesh cable trays.

Technical data

Technical data

Accessories	yes
Colour	Pure orange; RAL 2004
Diameter	5,8 mm
Dimension	3,9mm
Length	15 mm
Material	Polyvinylchloride

Spare part	no
Suitable for profile shapes	Miscellaneous
Type of accessory	Miscellaneous
Version for	End cap
Wire diameter	3,9 mm

All types

All types

Types	Wire diameter	Colour	Item no.	Quantity	SSU
GR KS 3.9 OR	3.9 mm	Pure orange; RAL 2004	6003750	piece	500 piece
GR KS 4.8 OR	4.8 mm	Pure orange; RAL 2004	6003754	piece	500 piece

Downloads

Data sheet GR KS 3.9 OR / 6003750 , 0.16MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity GR KS 3.9 OR / 6003750 , 0.15MB , pdf

REACH Declaration of conformity GR KS 3.9 OR / 6003750 , 0.12MB , pdf

Download

RoHS Declaration of conformity GR KS 3.9 OR / 6003750 , 0.13MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

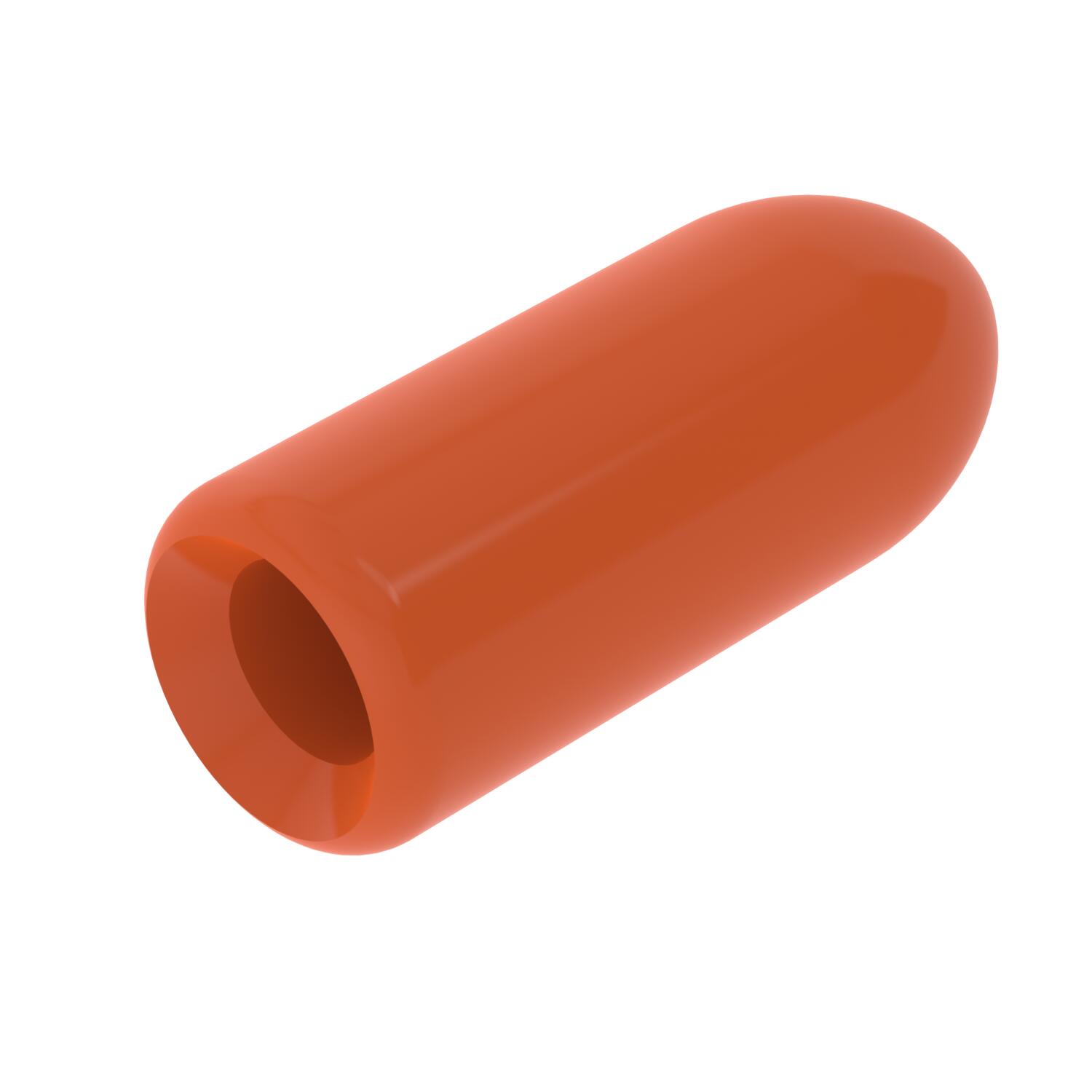

Product graphic GR KS 3.9 OR / 6003750, 34.63 kB, jpg

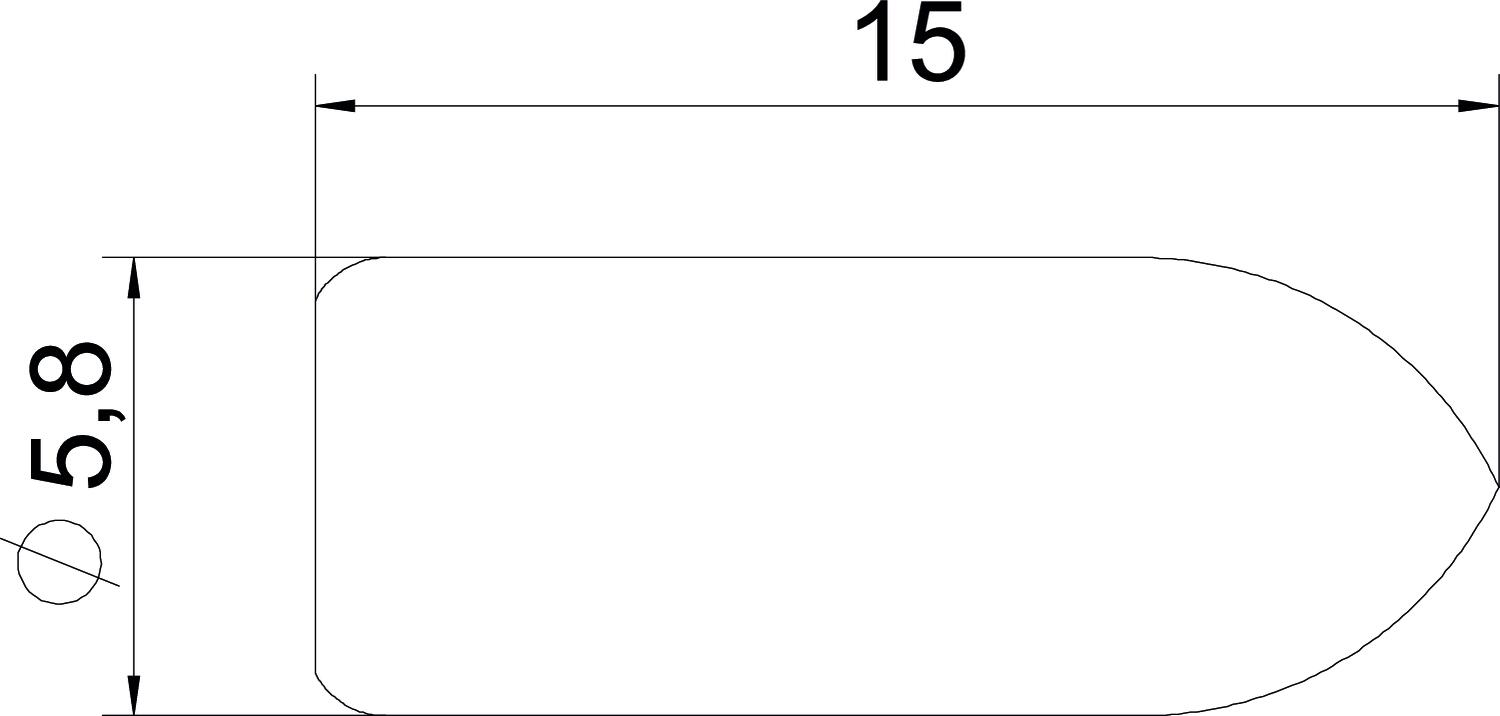

Scale drawing GR KS 3.9 OR / 6003750, 29.70 kB, jpg

GR KS 3.9 OR / 6003750

6003750_KSTP1.stp, 26.79 kB
