Protection conductor terminal, with screw contacts, 7 terminals
Item no. 2054019 | EAN 4012195183259
- Product description
-

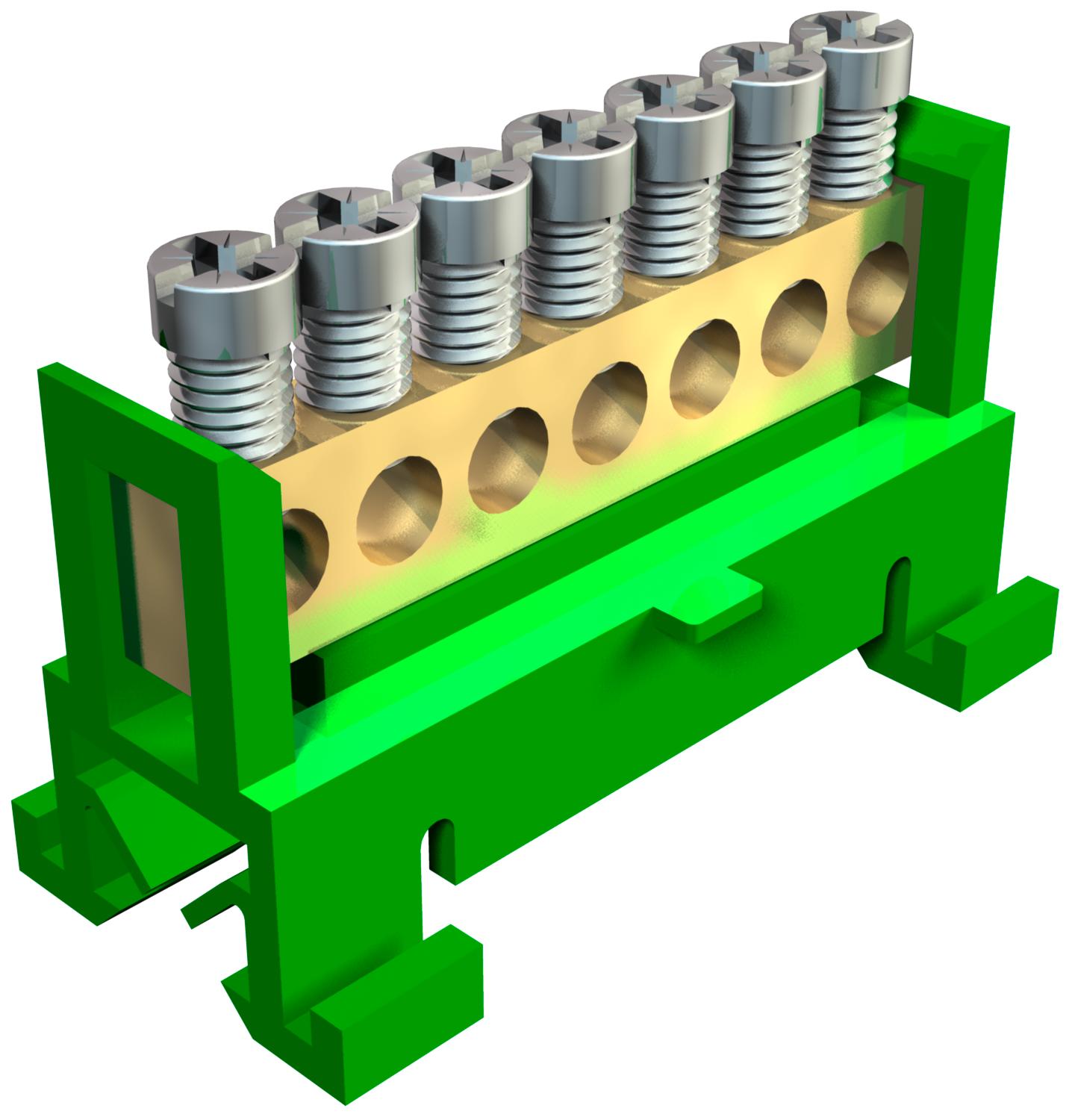

Product descriptionProtective conductor connection terminal with 7 terminals up to 16 mm².
Clamping rail, brass, steel screws, electrogalvanised and transparently passivated, for snapping onto 35 x 7.5 mm hat profile rails to DIN EN 60715 (previously DIN EN 50022) (transverse) or flat rails 10 x 2–2.5 mm (lengthwise).
60/N 7 and 60/S 7: with 7 terminals to 16 mm².
-
- Technical data
-
Technical data

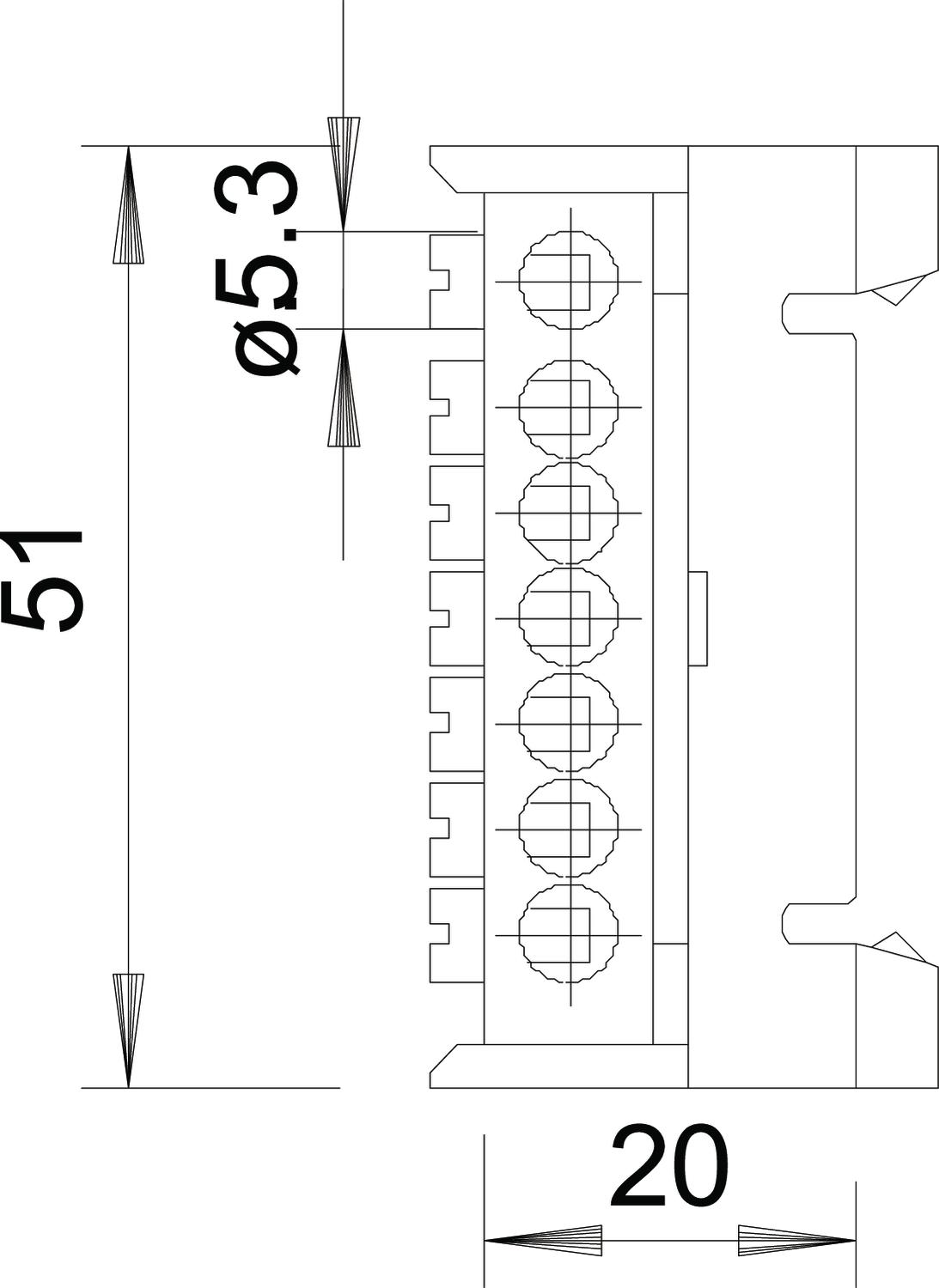

Closing plate required no Colour Green Cross-section 7 terminals to 16 mm² mm² Dimension 7x16mm² Explosion-tested version no Height 20 mm Length 51 mm Material Polyamide No. of terminals 7 Nominal cross-section, max. 16 mm² Nominal cross-section, min. 10 mm² Pole number 7 Suitable for flexible conductors no Suitable for multi-wire conductors no Suitable for solid conductors no - All types
- Downloads
-
Data sheet 60 S 7x16 GN / 2054019 , 0.20MB , pdfEU declaration of conformity 60 S 7x16 GN / 2054019 , 0.05MB , pdfREACH Declaration of conformity 60 S 7x16 GN / 2054019 , 0.13MB , pdfRoHS Declaration of conformity 60 S 7x16 GN / 2054019 , 0.13MB , pdf
