Profile earth rod with connecting lug

Item no. 5003040 | EAN 4012195373810

Item no. / Types

Length

Product description

Product description

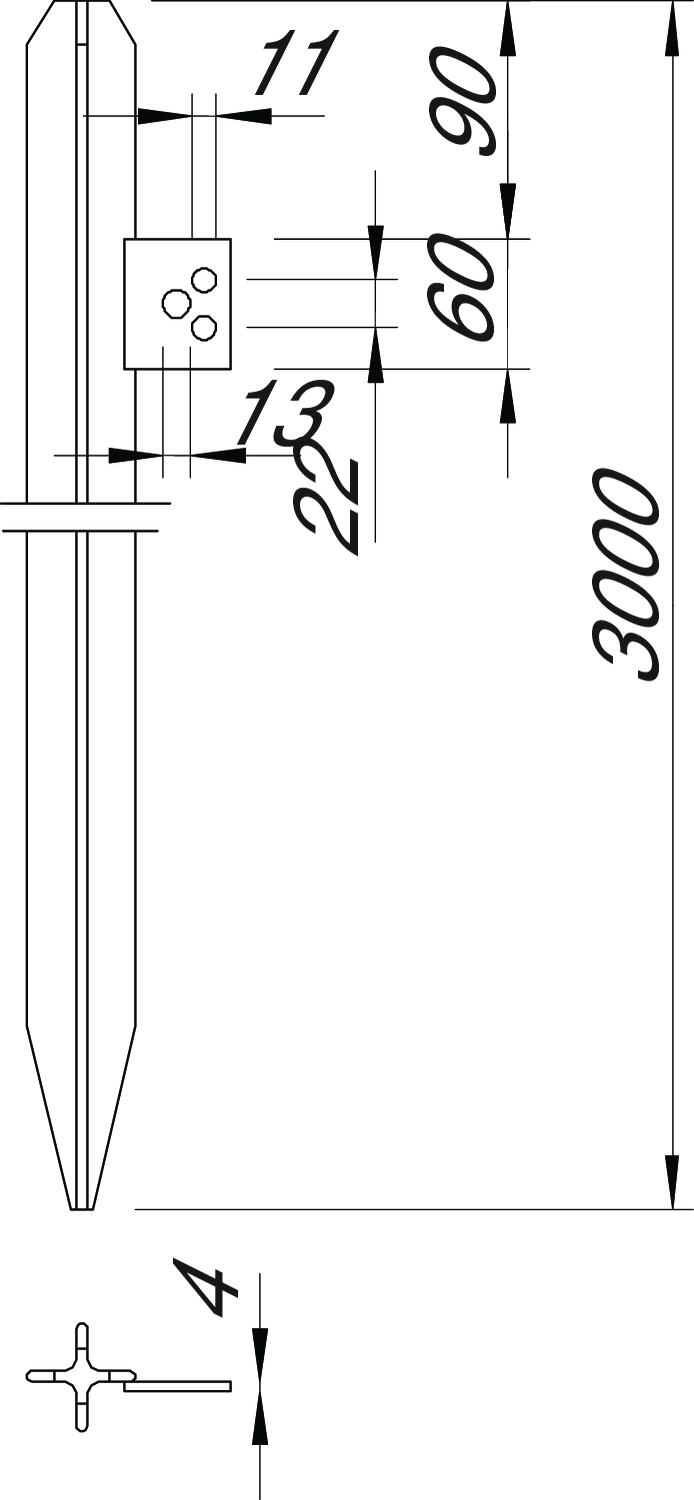

• Cross-profile 50 x 50 x 3 mm

• With connecting strap

• 1 through hole Ø 13 mm

• 2 through holes Ø 11 mm

• Round conductor fastening, e.g. with type 5001 DIN-FT possible

• For the construction of earthing systems, e.g. antenna or earthing of

building site distribution boards

Technical data

Technical data

Dimension	3000mm
Dimension L	3000 mm
Length	3000 mm

Material	Steel
Profile type	Cross
Surface	Hot-dip galvanised

All types

All types

Types	Length	Item no.	Quantity	SSU
213 1000 DIN	1000 mm	5003008	piece	1 piece
213 1500 DIN	1500 mm	5003016	piece	1 piece
213 2000 DIN	2000 mm	5003024	piece	1 piece
213 2500 DIN	2500 mm	5003032	piece	1 piece
213 3000 DIN	3000 mm	5003040	piece	1 piece
