- Product description
-
Product description

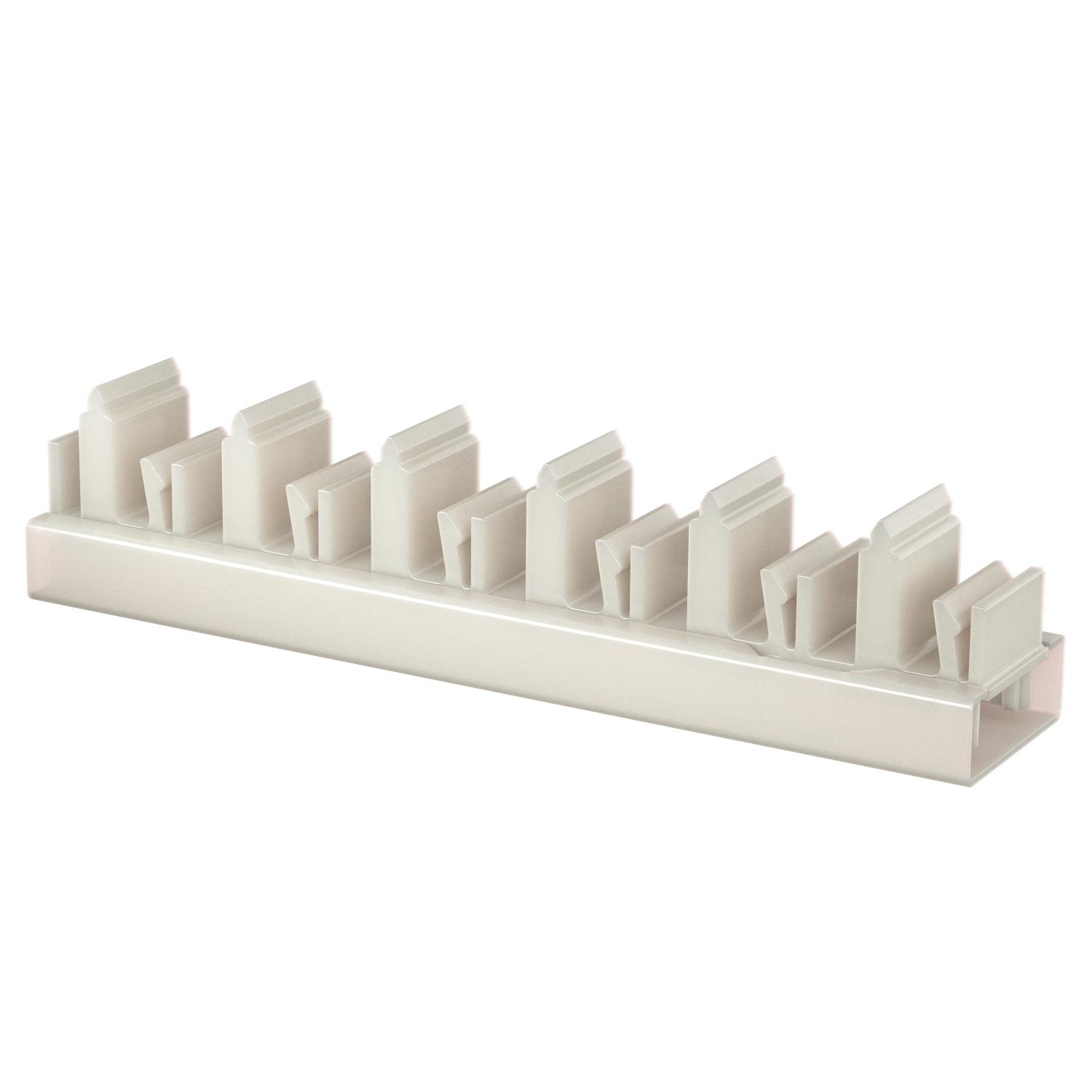

Vertical profile connector with guide slits to lock convection grid profiles for the creation of a compact grid unit. The vertical convection grids can run some way down the front side of the trunking, although a gap should be left near the floor for cleaning, or should be run to the floor and fastened with the BVL floor panel. This version represents a variant of the convector panelling. Alternatively to the convection grid profiles, heating convector panelling can also be created with closed sheet steel panelling.
The mesh slats are simply attached to the slat holder.
- Technical data
-
Technical data
Dimension 32x34x150 Halogen-free yes installation position Vertical Material Polypropylene Number of profiles 6 Dimensions

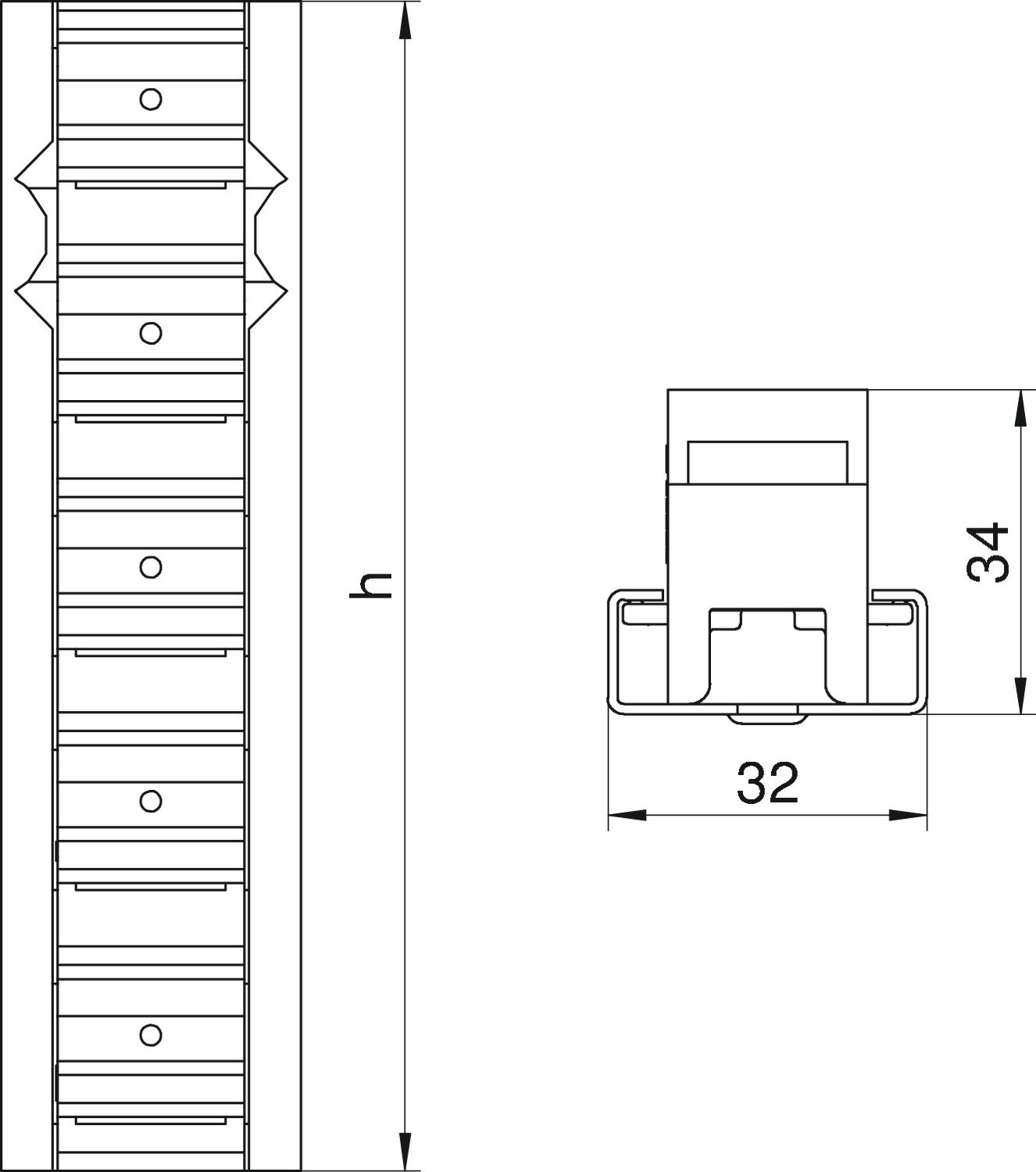

Dimension h 150 mm Height 34 mm Length 150 mm Width 32 mm - All types
- Downloads
-
Data sheet PVV N2 150 / 6288034 , 0.23MB , pdfDeclaration of conformity PVV N2 150 / 6288034 , 0.13MB , pdfUK Declaration of Conformity PVV N2 150 / 6288034 , 0.14MB , pdf
