Pressure screw, PG thread, light grey 9 | PG | Polystyrene | Light grey; RAL 7035
morepic-1 morepic-2

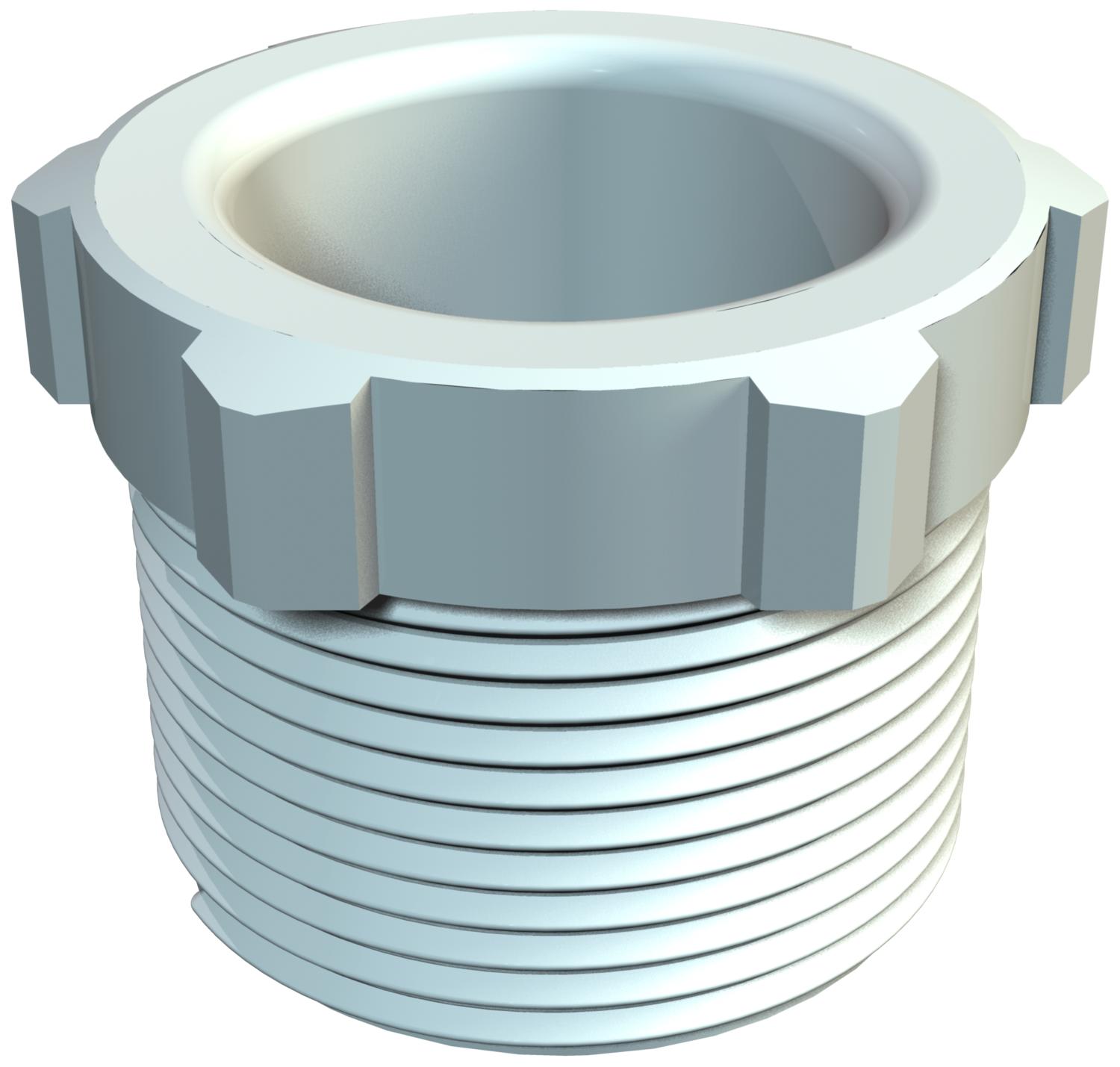

Pressure screw, PG thread, light grey

Item no. 2025094 | EAN 4012195163039

PG
Polystyrene
Light grey; RAL 7035
Product description
Product description
Pressure screw (Part 1) to DIN 46320, with Pg thread DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

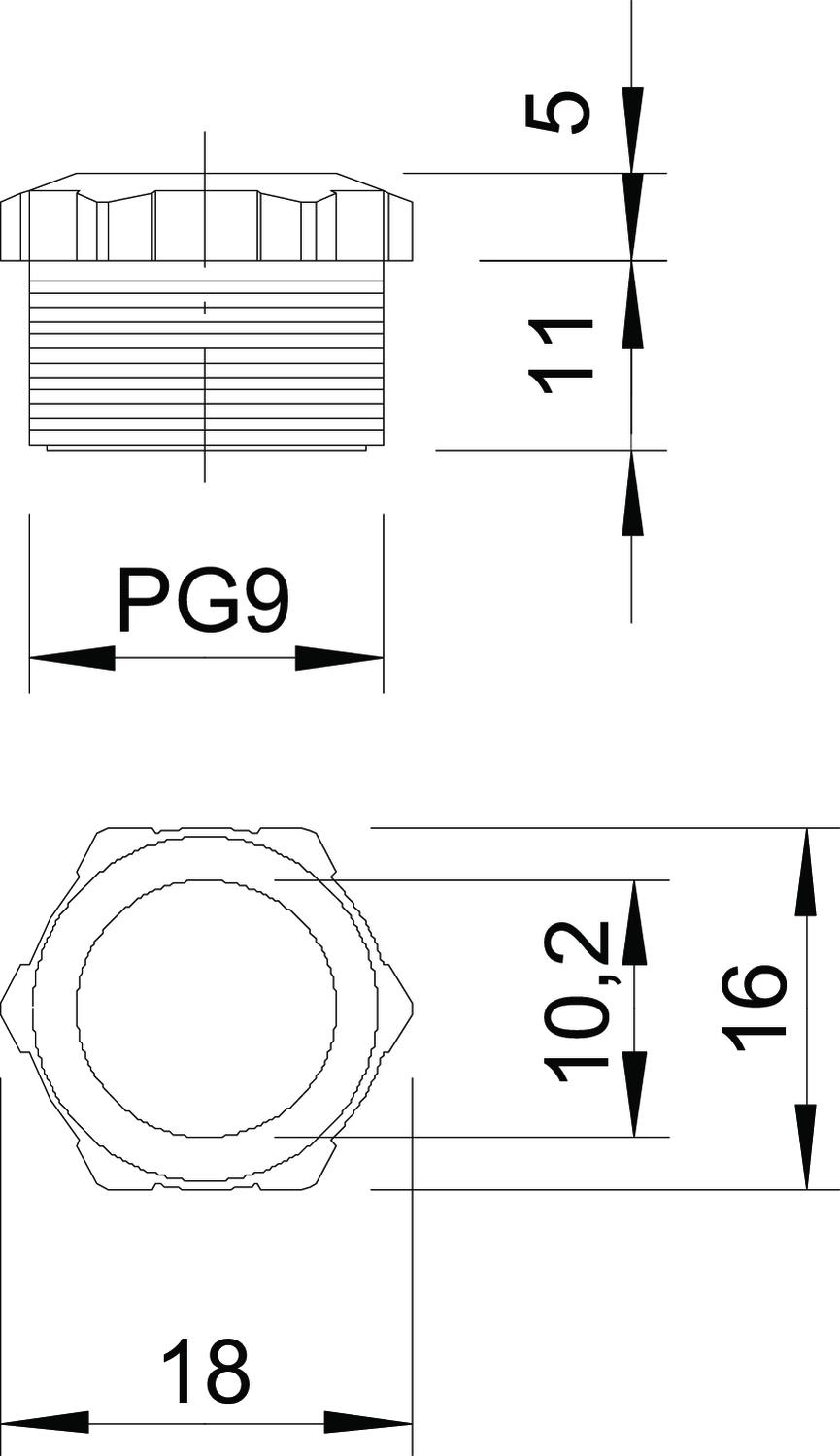

Dimension PG9
Dimension D 10,2 mm
Dimension E 18 mm
Dimension L1 9 mm
Dimension L2 5 mm
Fibre-glass reinforced no
Halogen-free yes
Material Polystyrene
Nominal thread size 9
Strain relief option no
Thread increase 1,41 mm
Thread type PG
WAF 16
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 E PG7 PS 7 PG Polystyrene Light grey; RAL 7035 2025078
100 piece
107 E PG9 PS 9 PG Polystyrene Light grey; RAL 7035 2025094
100 piece
107 E PG11 PS 11 PG Polystyrene Light grey; RAL 7035 2025116
100 piece
107 E PG13.5 PS 13.5 PG Polystyrene Light grey; RAL 7035 2025132
100 piece
107 E PG16 PS 16 PG Polystyrene Light grey; RAL 7035 2025167
100 piece
107 E PG21 PS 21 PG Polystyrene Light grey; RAL 7035 2025213
50 piece
107 E PG29 PS 29 PG Polystyrene Light grey; RAL 7035 2025299
25 piece
107 E PG36 PS 36 PG Polystyrene Light grey; RAL 7035 2025361
25 piece
107 E PG42 PS 42 PG Polystyrene Light grey; RAL 7035 2025426
10 piece
107 E PG48 PS 48 PG Polystyrene Light grey; RAL 7035 2025485
10 piece
Downloads

Download

Download

EU declaration of conformity 107 E PG9 PS / 2025094 , 0.05MB , pdf
