Pressure screw, PG thread, light grey 13.5 | PG | Polystyrene | Light grey; RAL 7035
morepic-1 morepic-2

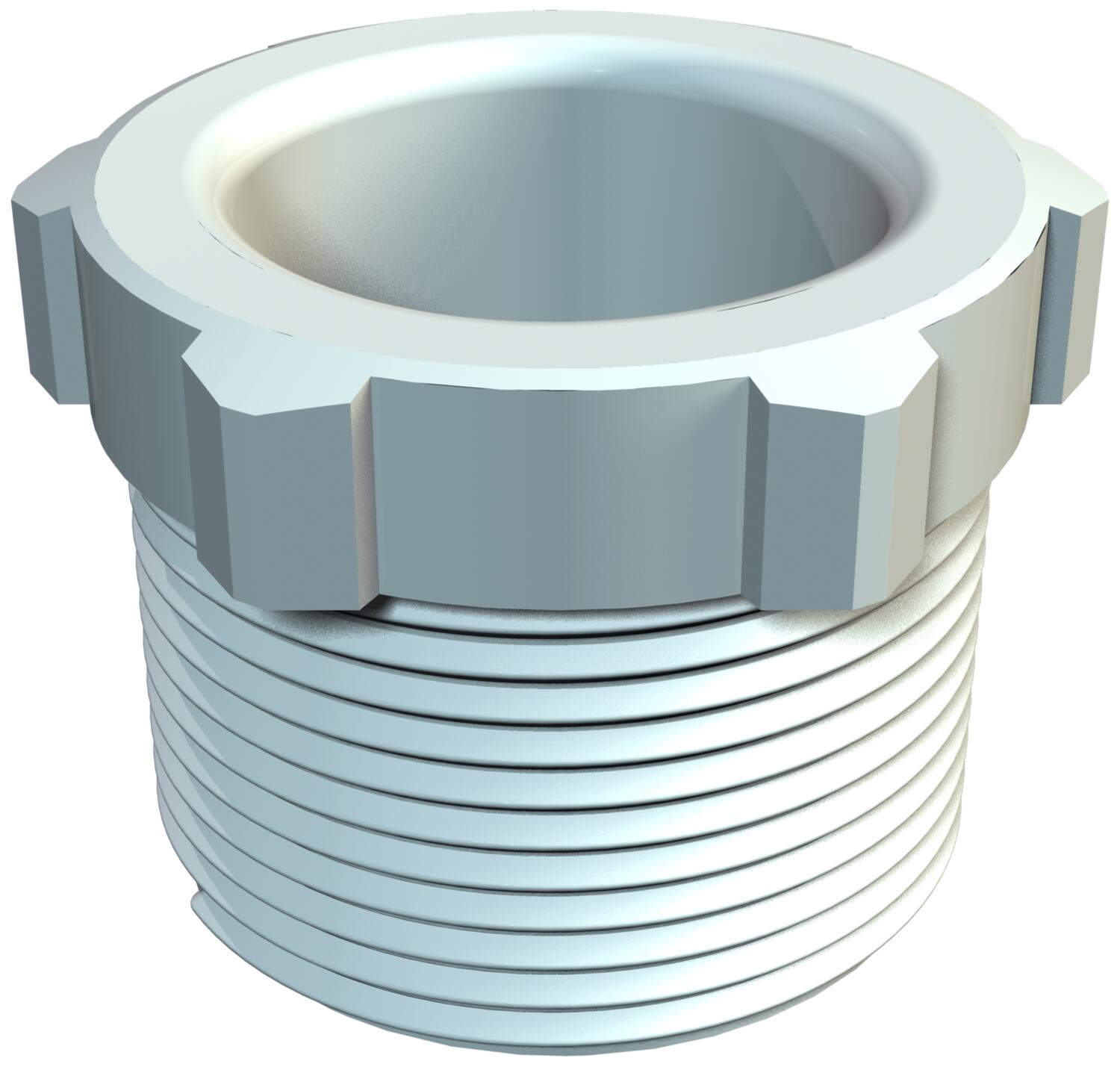

Pressure screw, PG thread, light grey

Item no. 2025132 | EAN 4012195163152

PG
Polystyrene
Light grey; RAL 7035
Product description
Product description
Pressure screw (Part 1) to DIN 46320, with Pg thread DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

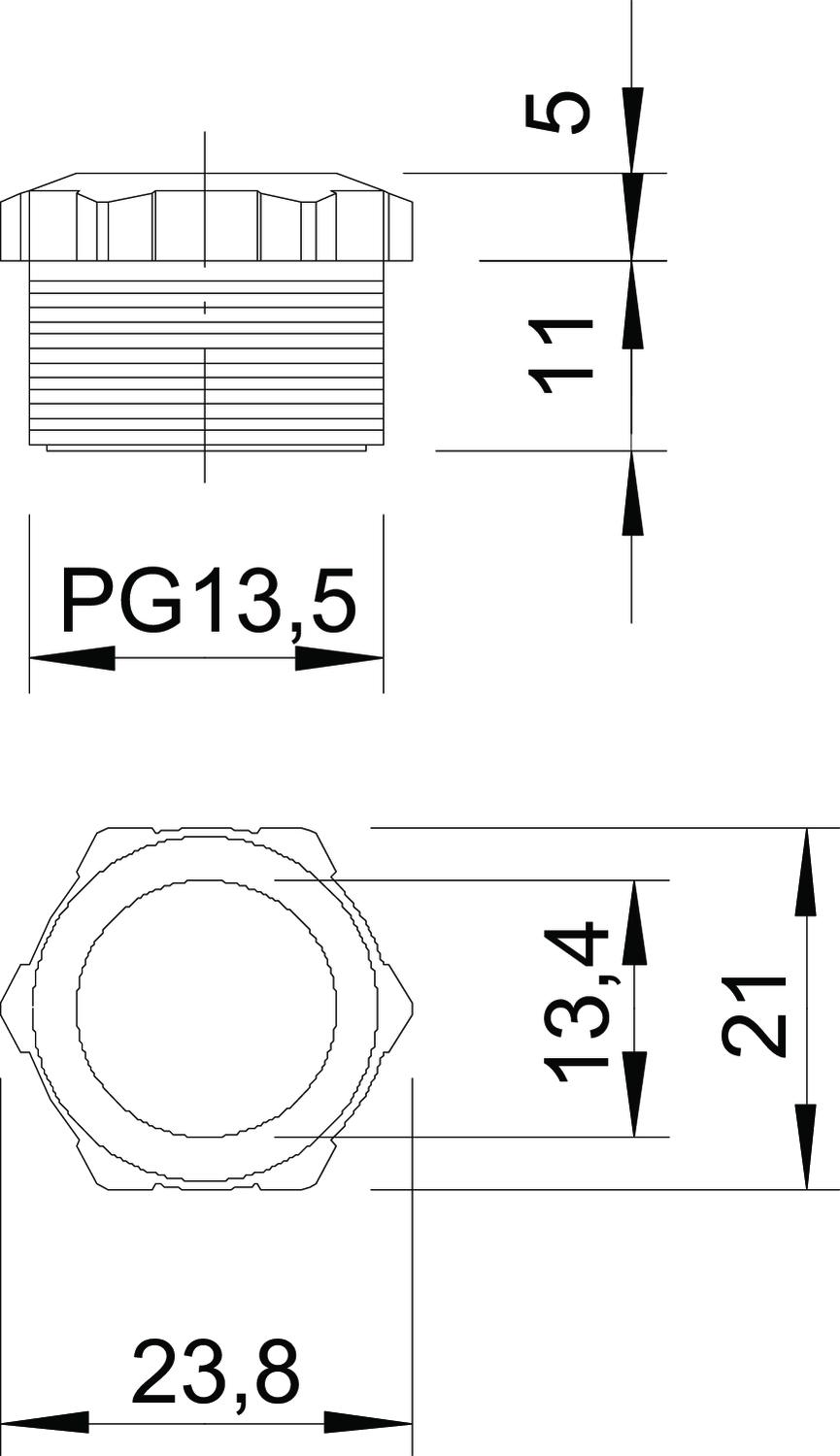

Dimension PG13,5
Dimension D 13,4 mm
Dimension E 23,8 mm
Dimension L1 10,5 mm
Dimension L2 5 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal thread size 13,5
Strain relief option no
Thread increase 1,41 mm
Thread type PG
WAF 21
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 E PG7 PS 7 PG Polystyrene Light grey; RAL 7035 2025078
100 piece
107 E PG9 PS 9 PG Polystyrene Light grey; RAL 7035 2025094
100 piece
107 E PG11 PS 11 PG Polystyrene Light grey; RAL 7035 2025116
100 piece
107 E PG13.5 PS 13.5 PG Polystyrene Light grey; RAL 7035 2025132
100 piece
107 E PG16 PS 16 PG Polystyrene Light grey; RAL 7035 2025167
100 piece
107 E PG21 PS 21 PG Polystyrene Light grey; RAL 7035 2025213
50 piece
107 E PG29 PS 29 PG Polystyrene Light grey; RAL 7035 2025299
25 piece
107 E PG36 PS 36 PG Polystyrene Light grey; RAL 7035 2025361
25 piece
107 E PG42 PS 42 PG Polystyrene Light grey; RAL 7035 2025426
10 piece
107 E PG48 PS 48 PG Polystyrene Light grey; RAL 7035 2025485
10 piece
