Pressure screw, PG strain relief 107 21 | PG | Polyamide | Light grey; RAL 7035
morepic-1 morepic-2

Pressure screw, PG strain relief 107

Item no. 2023210 | EAN 4012195161899

PG
Polyamide
Light grey; RAL 7035
Product description
Product description
Pressure screw with transverse clip strain relief, electrogalvanised steel screws,
PG thread to DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

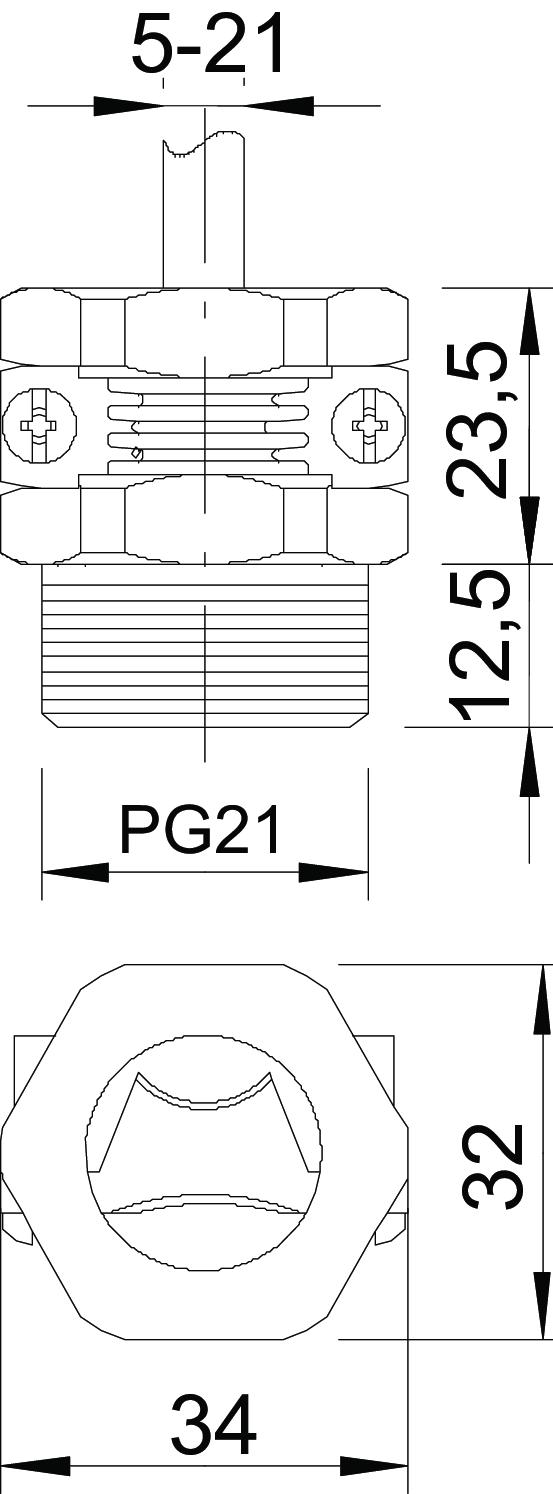

Clamping range, max. 21,2 mm
Clamping range, min. 5,9 mm
Colour Light grey; RAL 7035
Dimension PG21
Dimension E 34 mm
Dimension L1 12,5 mm
Dimension L2 23,5 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size 21
Strain relief option yes
Thread increase 1,59 mm
Thread type PG
WAF 32
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 Z PG 9 PA 9 PG Polyamide Light grey; RAL 7035 2023091
100 piece
107 Z PG11 PA 11 PG Polyamide Light grey; RAL 7035 2023113
100 piece
107 Z PG13.5 PA 13.5 PG Polyamide Light grey; RAL 7035 2023121
100 piece
107 Z PG16 PA 16 PG Polyamide Light grey; RAL 7035 2023164
50 piece
107 Z PG21 PA 21 PG Polyamide Light grey; RAL 7035 2023210
25 piece
107 Z PG29 PA 29 PG Polyamide Light grey; RAL 7035 2023296
25 piece
