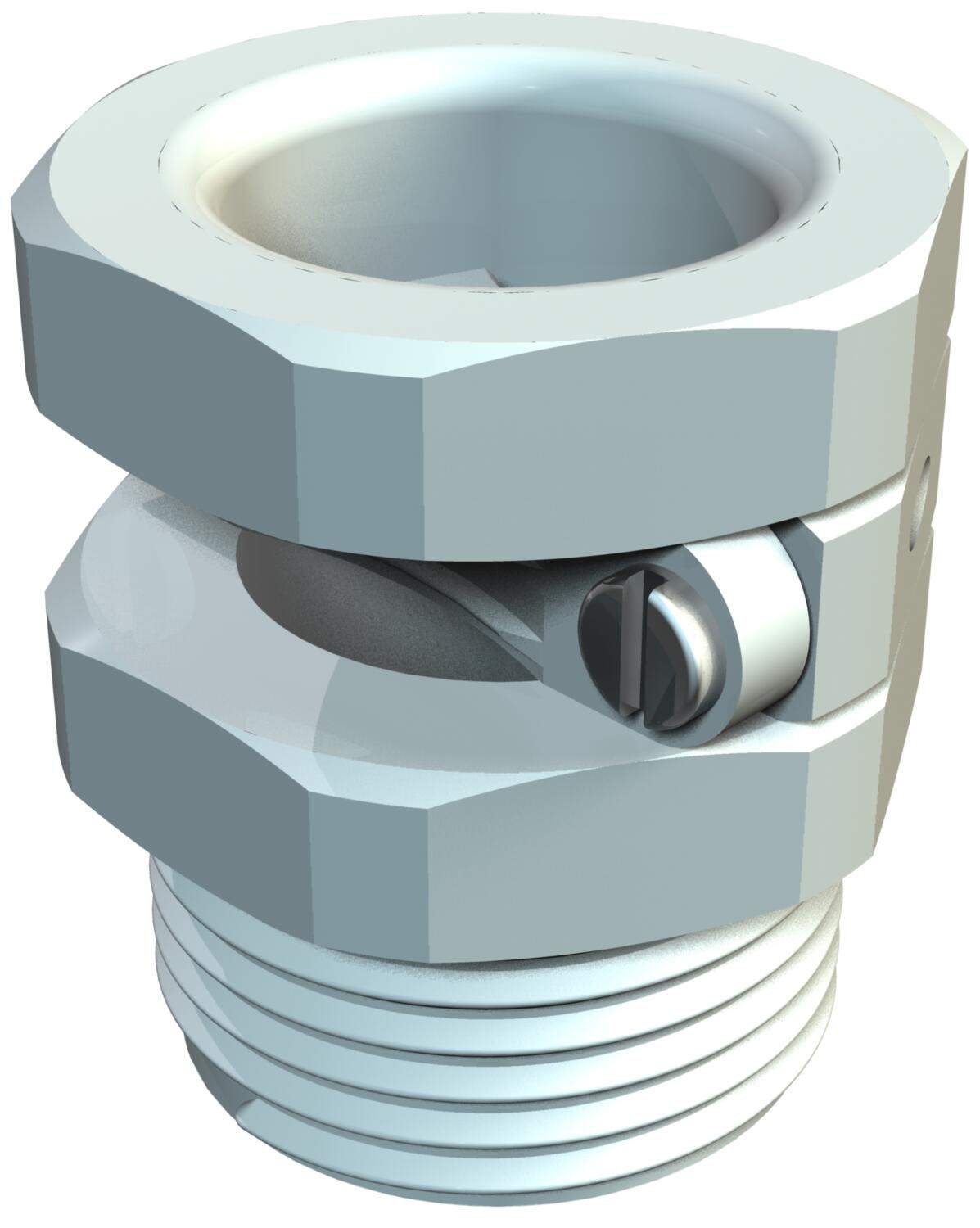

Pressure screw, PG strain relief 107

Item no. 2023164 | EAN 4012195161837

PG
Polyamide
Light grey; RAL 7035
Product description

Product description

Pressure screw with transverse clip strain relief, electrogalvanised steel screws,
PG thread to DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg

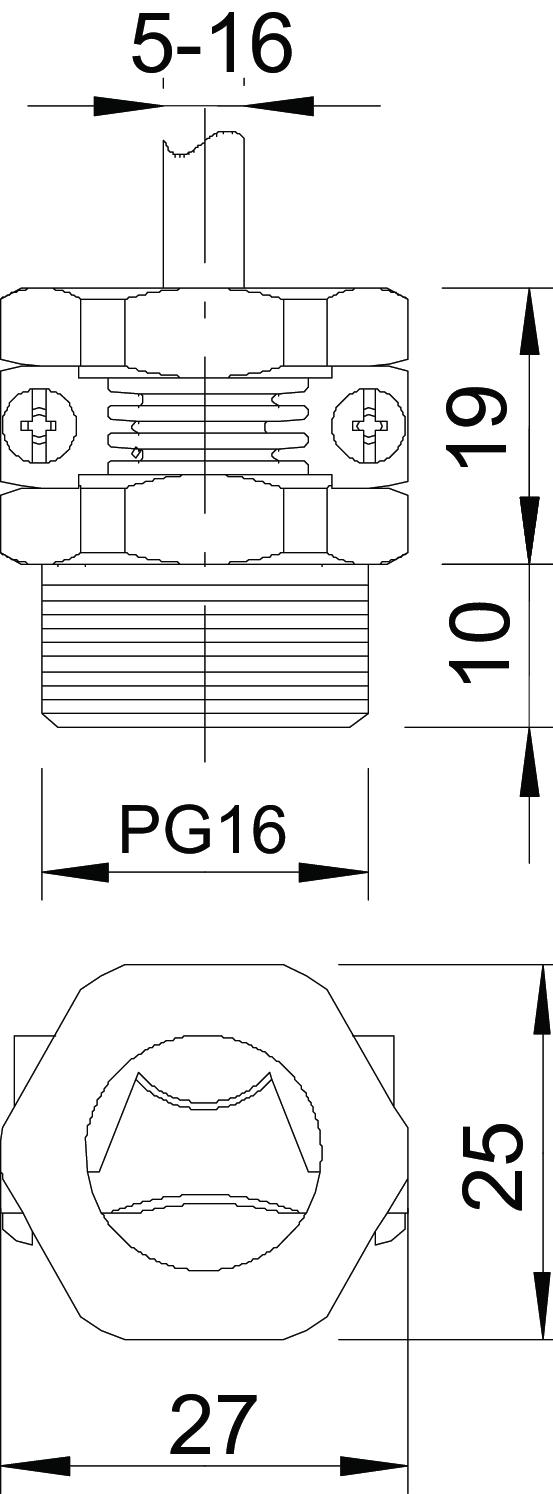

Technical data

Technical data

Clamping range, max. 16,2 mm
Clamping range, min. 5 mm
Colour Light grey; RAL 7035
Dimension PG16
Dimension E 27 mm
Dimension L1 10 mm
Dimension L2 19 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size 16
Strain relief option yes
Thread increase 1,41 mm
Thread type PG
WAF 25
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 Z PG 9 PA 9 PG Polyamide Light grey; RAL 7035 2023091
100 piece
107 Z PG11 PA 11 PG Polyamide Light grey; RAL 7035 2023113
100 piece
107 Z PG13.5 PA 13.5 PG Polyamide Light grey; RAL 7035 2023121
100 piece
107 Z PG16 PA 16 PG Polyamide Light grey; RAL 7035 2023164
50 piece
107 Z PG21 PA 21 PG Polyamide Light grey; RAL 7035 2023210
25 piece
107 Z PG29 PA 29 PG Polyamide Light grey; RAL 7035 2023296
25 piece
