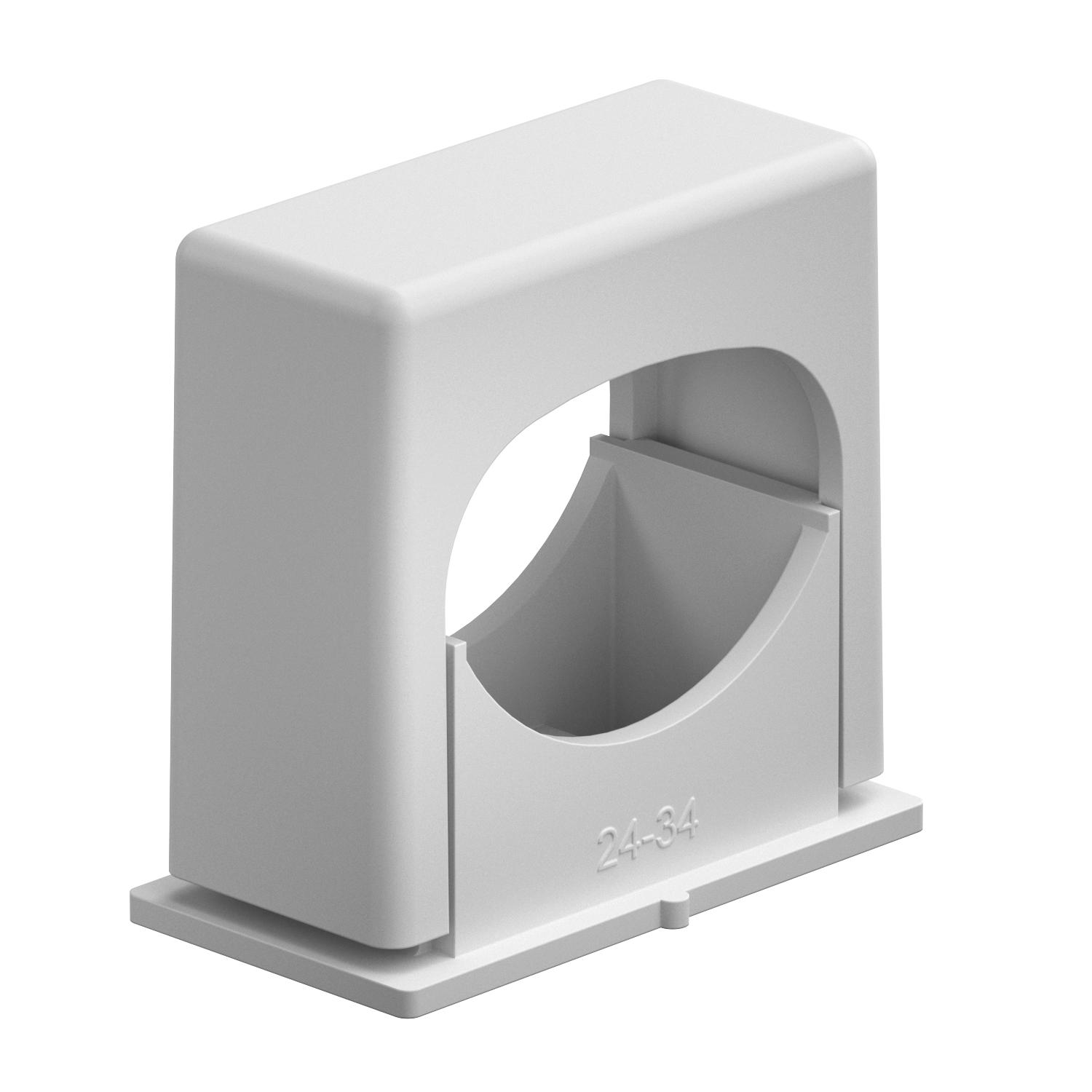

Pressure ISO clip 3052, single, light grey

Item no. 2101068 | EAN 4012195195375

2101068 / 3052 LGR
24 mm
34 mm
Light grey; RAL 7035
Product description

Product description

With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 34 mm
Clamping range D, min. 24 mm
Colour Light grey; RAL 7035

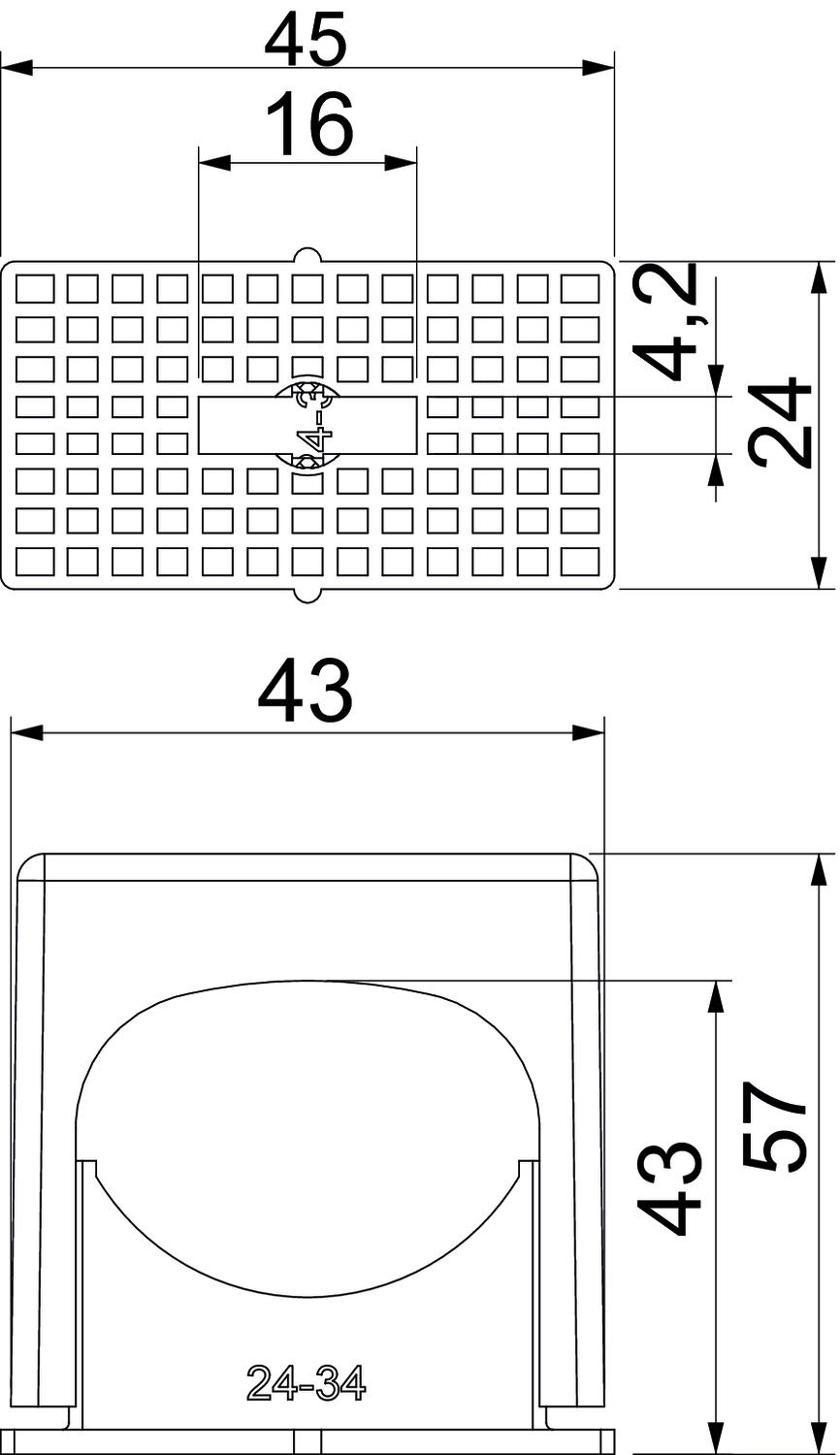

Dimension 24-34mm
Dimension a 45 mm
Dimension a1 (mm) 16 mm
Dimension b 24 mm
Dimension b1 4,2 mm
Dimension c 43 mm
Dimension d 43 mm
Dimension e 57 mm
Expandable no
Fastening type Screw hole
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Number of cables/pipes 1
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3052 LGR 24 mm 34 mm Light grey; RAL 7035 2101068
25 piece
