Pressure ISO clip 3051, single, light grey 14 | 24 | Light grey; RAL 7035
morepic-1 morepic-2

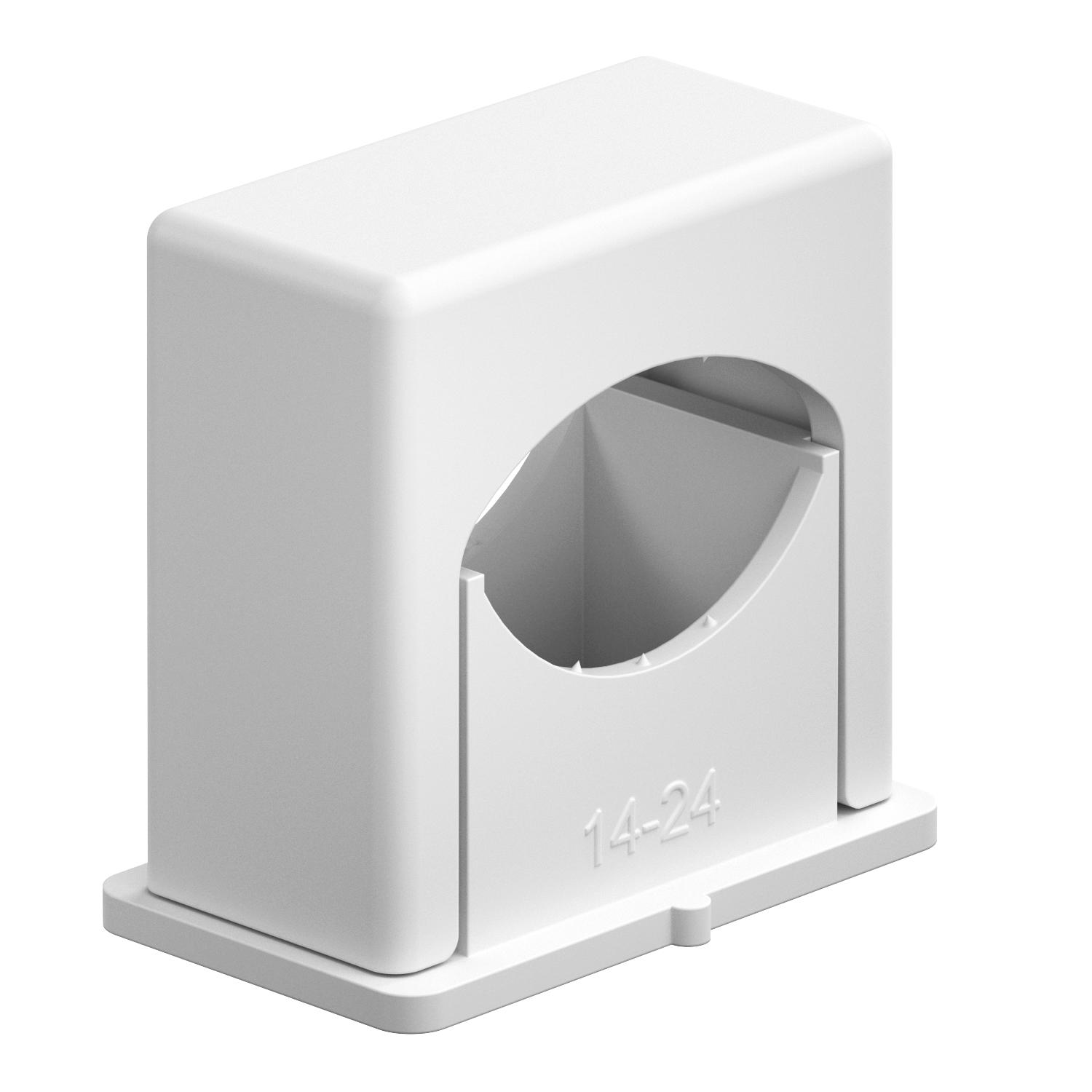

Pressure ISO clip 3051, single, light grey

Item no. 2101033 | EAN 4012195195313

2101033 / 3051 LGR
14 mm
24 mm
Light grey; RAL 7035
Product description

Product description

With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 24 mm
Clamping range D, min. 14 mm
Colour Light grey; RAL 7035
Dimension 14-24mm
Expandable no
Fastening type Screw hole
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Number of cables/pipes 1

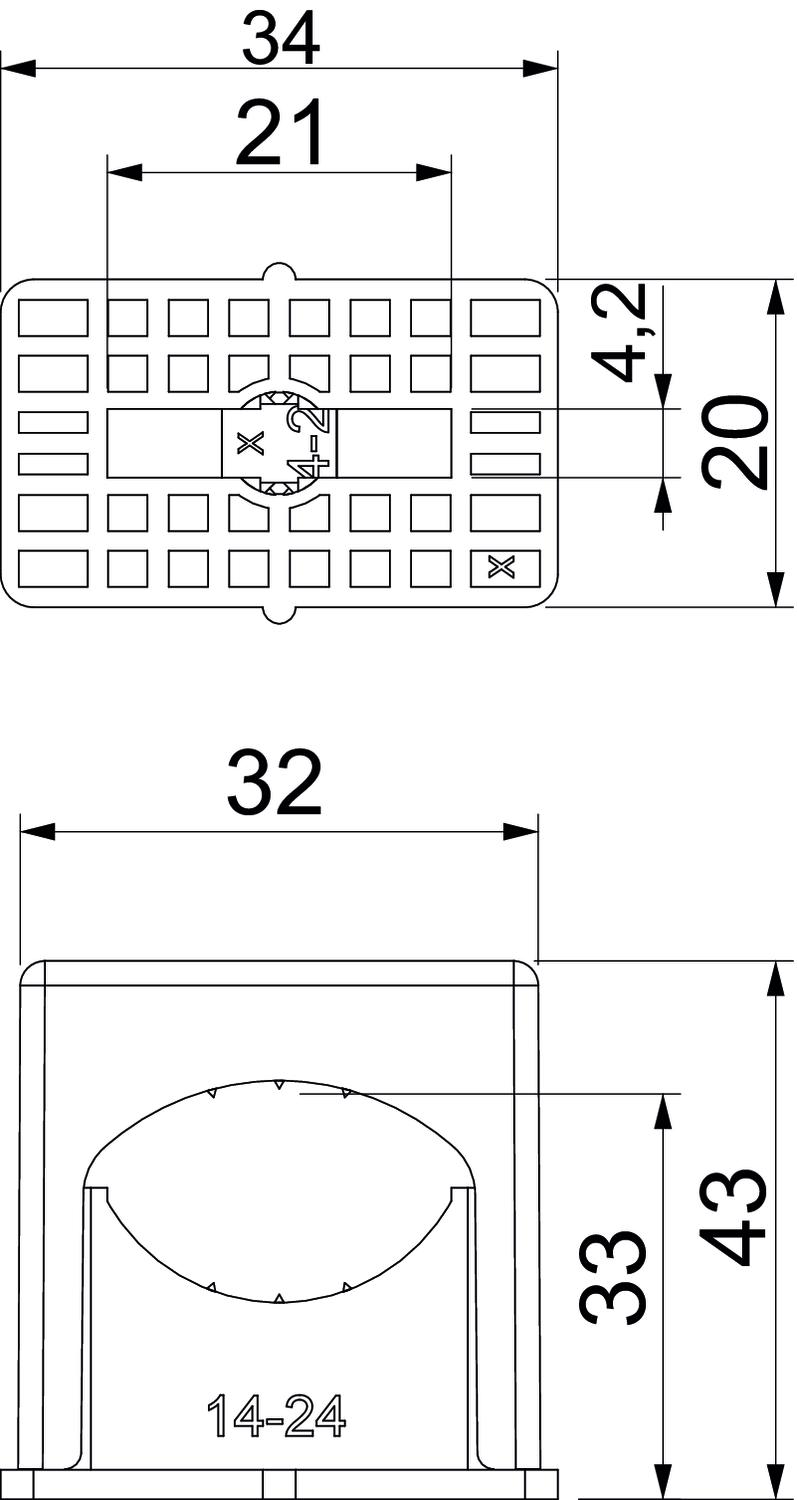

Dimensions

Dimension a 34 mm
Dimension a1 (mm) 21 mm
Dimension b 20 mm
Dimension b1 4,2 mm
Dimension c 32 mm
Dimension d 33 mm
Dimension e 43 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3051 LGR 14 mm 24 mm Light grey; RAL 7035 2101033
50 piece
Downloads

Download

Download

Declaration of conformity 3051 LGR / 2101033 , 0.13MB , pdf
Download
REACH Declaration of conformity 3051 LGR / 2101033 , 0.12MB , pdf
Download
RoHS Declaration of conformity 3051 LGR / 2101033 , 0.12MB , pdf
Download

3051 LGR / 2101033
