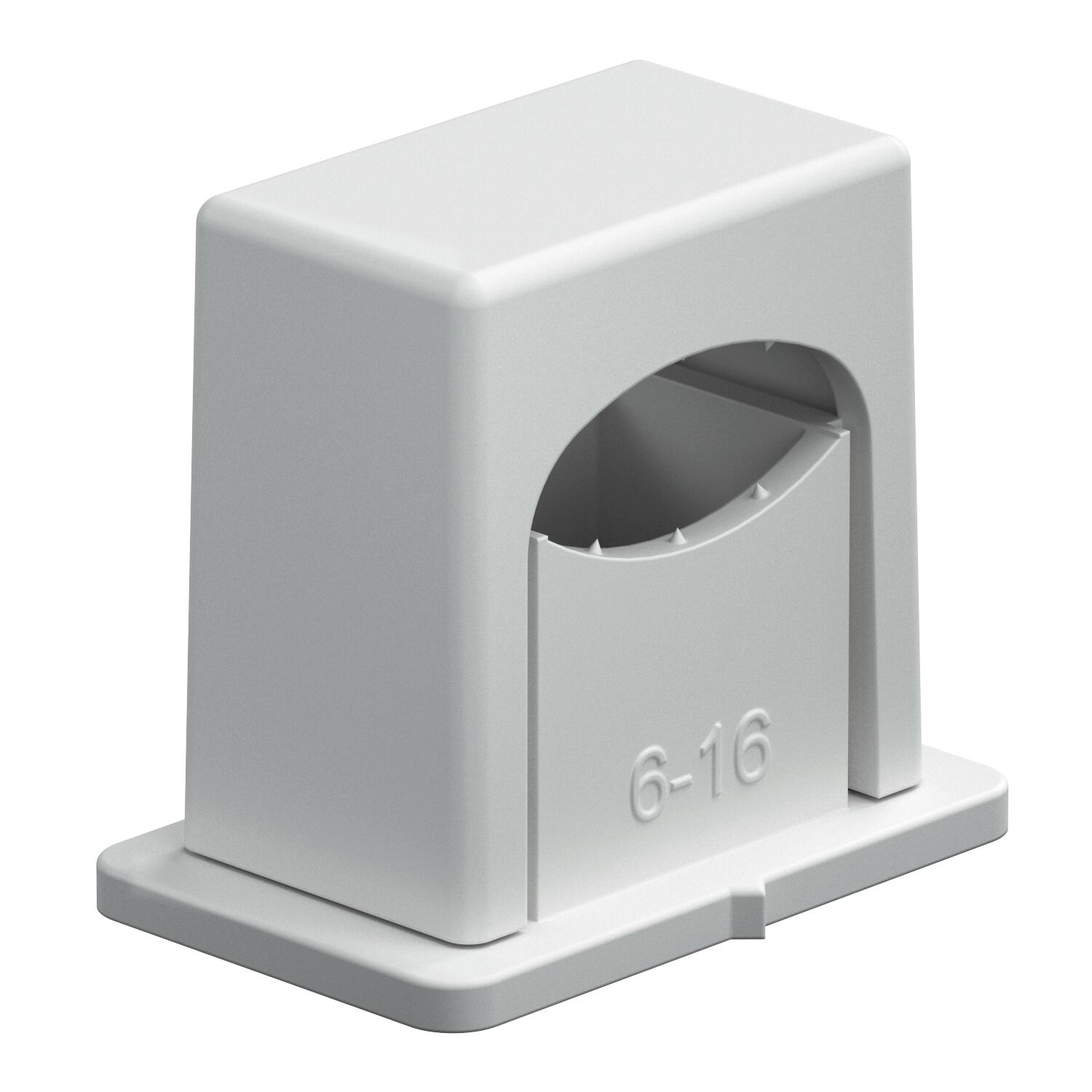

Pressure ISO clip 3050, single, light grey

Item no. 2101017 | EAN 4012195195252

2101017 / 3050 LGR
6 mm
16 mm
Light grey; RAL 7035
Product description

Product description

With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 16 mm
Clamping range D, min. 6 mm
Colour Light grey; RAL 7035
Dimension 6-16mm
Expandable no
Fastening type Screw hole
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Number of cables/pipes 1

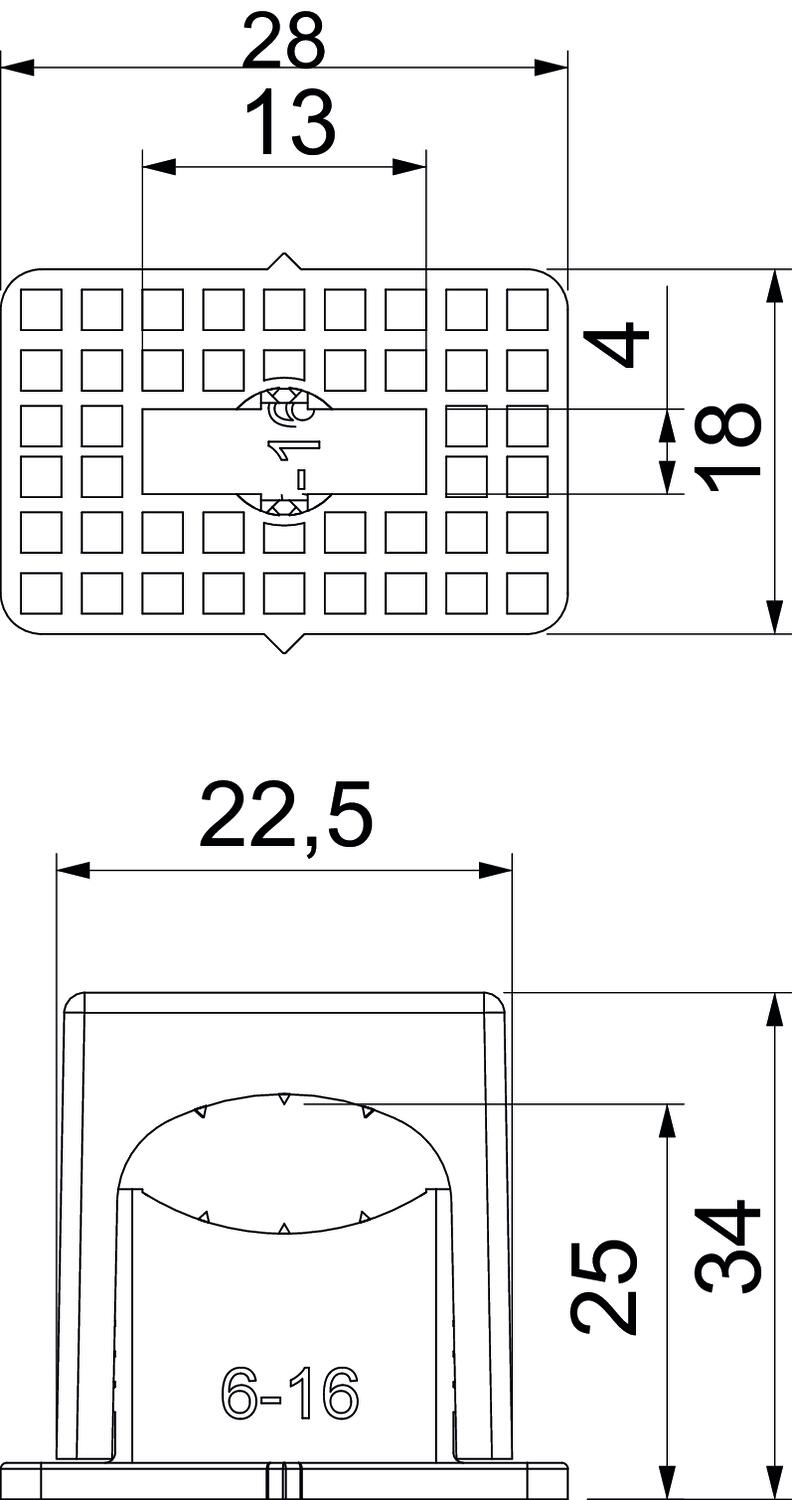

Dimensions

Dimension a 28 mm
Dimension a1 (mm) 13 mm
Dimension b 18 mm
Dimension b1 4 mm
Dimension c 22,5 mm
Dimension d 25 mm
Dimension e 34 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3050 LGR 6 mm 16 mm Light grey; RAL 7035 2101017
100 piece
