- Product description
-
Product description

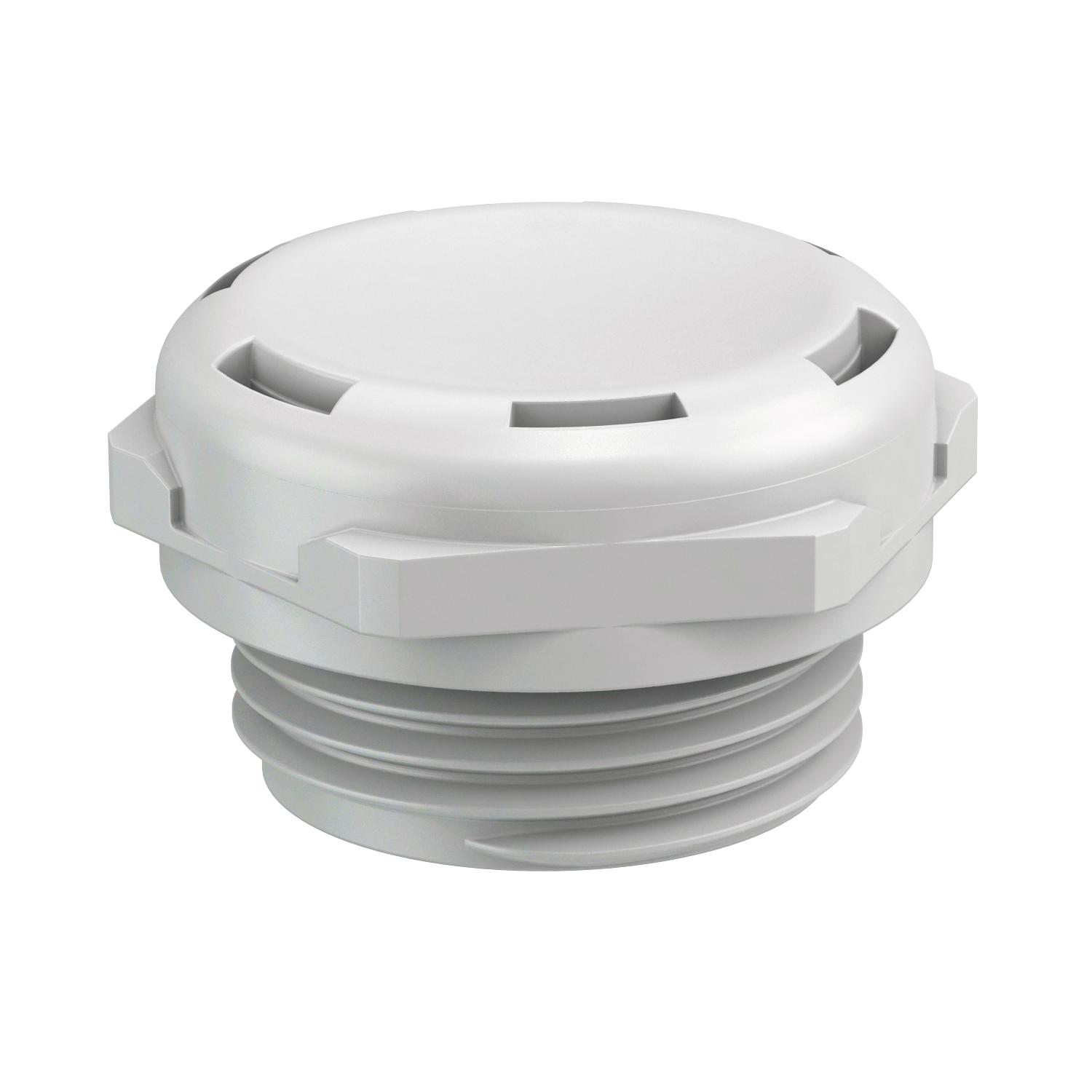

The pressure compensation element, type 109 M20 LGR compensates for pressure differences in junction boxes, small distributors and connection sockets with an M20 opening and avoids the formation of condensation water in sealed housings. The polyamide pressure compensation element has an IP68/IP69 protection rating. This remains intact, even after the installation of the pressure compensation element. The pressure compensation element is suitable for use in industrial environments and in exterior areas.
The pressure compensation element is surrounded by an ePTFE membrane, which is permeable in both directions to air. The air throughput at a pressure difference of 70 mbar is 110 L/h. At the same time, moisture cannot enter the housing from outside.
- Technical data
-
Technical data

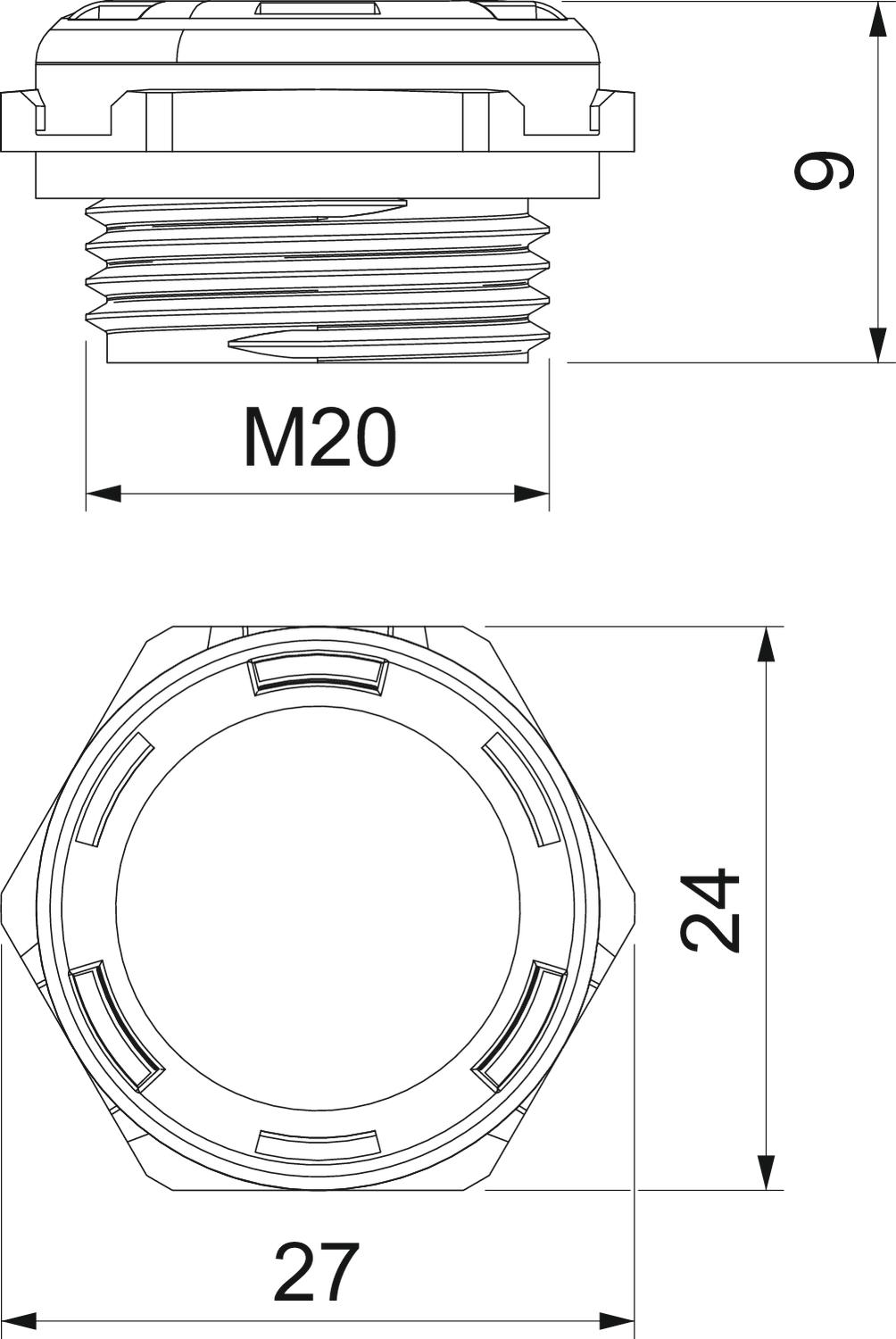

Colour Light grey; RAL 7035 Dimension M20x1,5 Dimension E 27 mm Dimension L 9 mm explosion-proof no Fibre-glass reinforced yes Height 15,4 mm Impact-resistant yes Nominal thread size metric/PG 20 Permitted temperature range, max. 100 °C Permitted temperature range, min. -40 °C Protection rating IP68 Thread M20 x 1,5 Thread increase 1,5 mm Thread type Metric WAF 24 - All types
- Downloads
-
Data sheet 109 M20 LGR / 2034680 , 0.23MB , pdf
