Pressure clip for 8 cables, flame resistant
Item no. 2204908 | EAN 4012195211099
- Product description
-
Product descriptionFlame-resistant version, specially for use in suspended ceilings.
Thermoplast. Polyester, stone grey RAL 7030, flame-resistant to VDE 0471/DIN IEC 695 Part 2-1, Test temperature 960 °C, respectively V-O to UL 94, halogen-free.

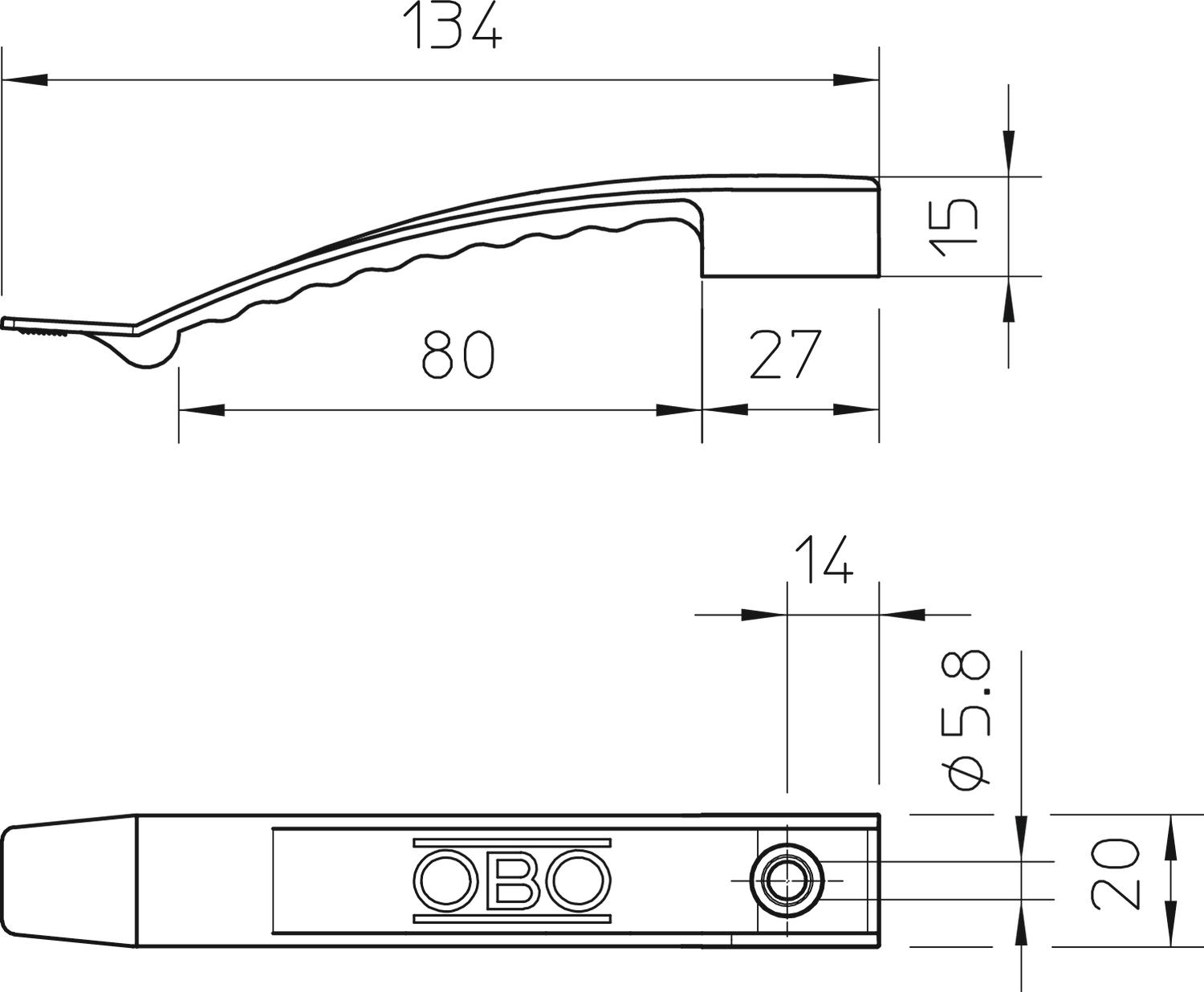

Clamping height: 9 mm, with spacer 13 mm.
Fastening hole: 6 mm Ø.
2032/F for max. 8 conductors NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Colour Stone grey; RAL 7030 CO₂ Footprint (GWP) Cradle-to-Gate 0,009 kg CO₂e / 1 Piece Dimension 1x8 NYM3x1,5 Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C Flame-resistant version no Halogen-free yes Maintain electrical functions no Material Polybutylene terephthalate No. of conductors NYM 3 x 1.5 8 With anchor no - All types
- Downloads
-
Data sheet 2032 F / 2204908 , 0.20MB , pdfEU declaration of conformity 2032 F / 2204908 , 0.06MB , pdfREACH Declaration of conformity 2032 F / 2204908 , 0.12MB , pdfRoHS Declaration of conformity 2032 F / 2204908 , 0.12MB , pdf
