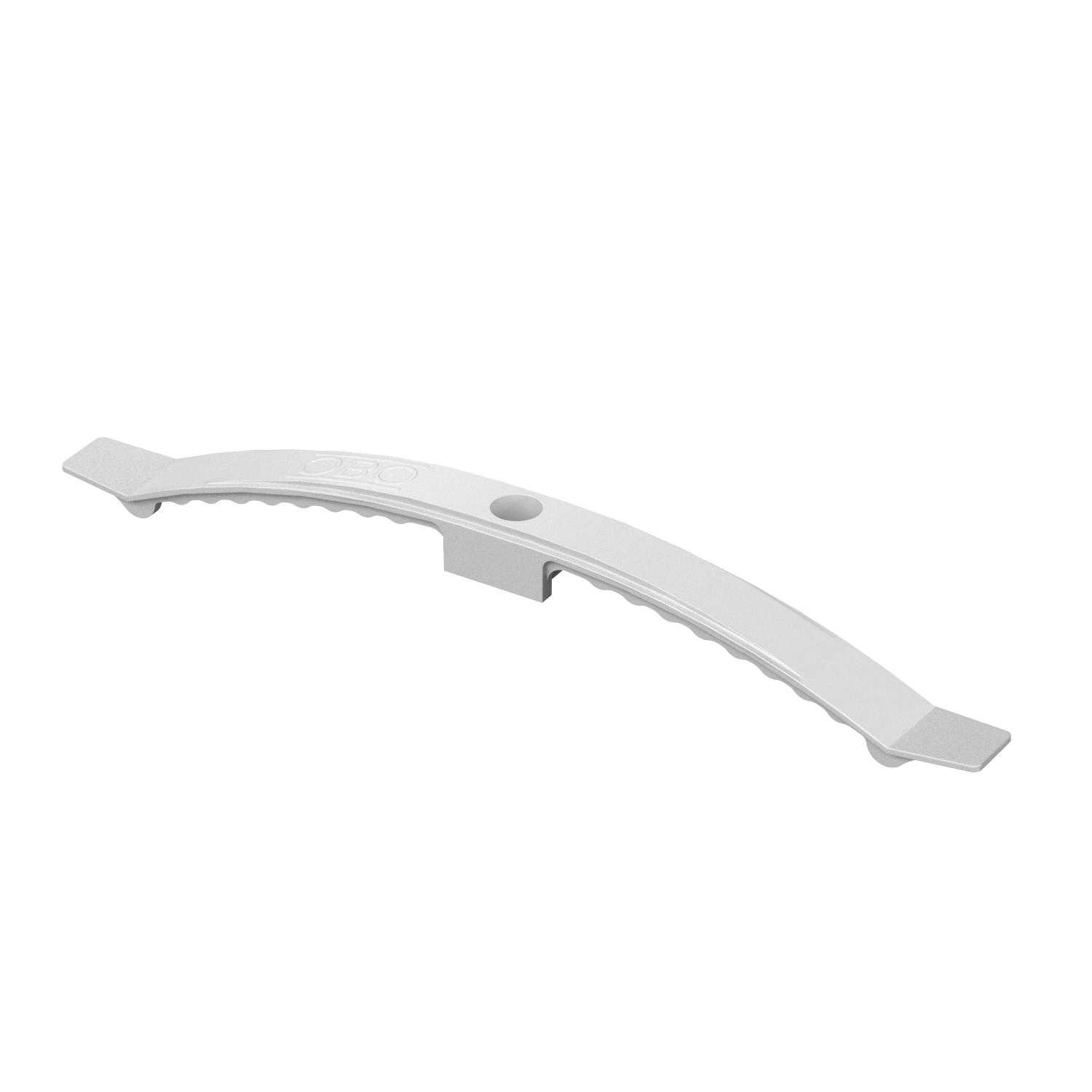

Pressure clip for 16 cables, connectable
Item no. 2205053 | EAN 4012195710035
- Product description
-
Product description
The quicker, the better – this also applies to installations in false ceilings.
OBO pressure clips simplify the routing of cables under the ceiling. OBO pressure clip is the perfect installation partner for areas in which every centimetre counts. Mounting is carried out simply using an M6 knock-in anchor. The striking surface on the top guarantees high striking accuracy in the screw. After assembly, the cables are passed under the clips in a "lasso technique" hand movement – and that's all there is to it!
The pressure clip is made of high-quality polyamide.
2033 for max. 16 cables NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 2x8 NYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions no Material Polyamide No. of conductors NYM 3 x 1.5 16 With anchor no - All types
- Downloads
-
Data sheet 2033 AS / 2205053 , 0.14MB , pdfDeclaration of conformity 2033 AS / 2205053 , 0.06MB , pdfREACH Declaration of conformity 2033 AS / 2205053 , 0.12MB , pdfRoHS Declaration of conformity 2033 AS / 2205053 , 0.12MB , pdf
