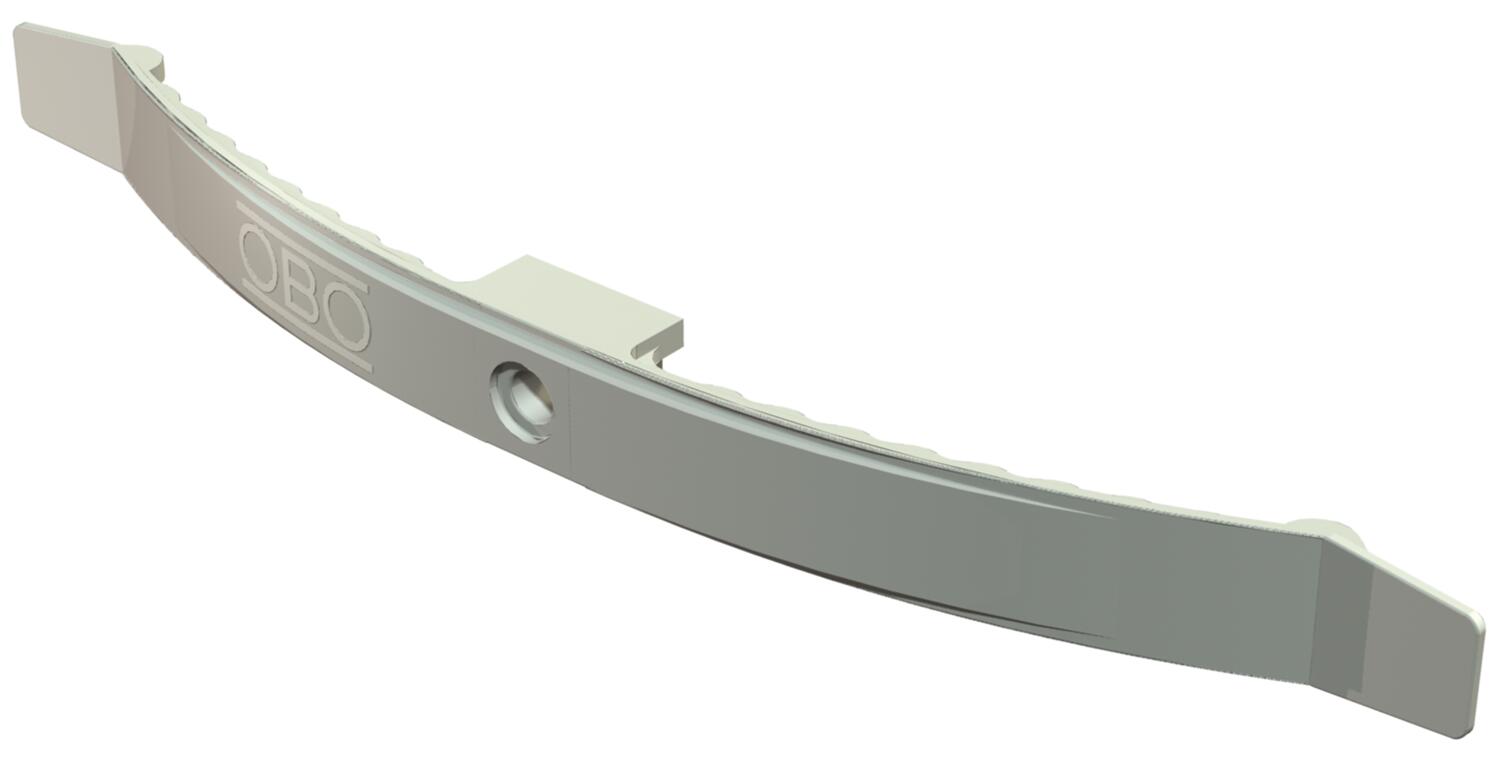

Pressure clip for 16 cables

Item no. 2204983 | EAN 4012195597735

16
Product description

Product description

Standard version for general use, e.g. on intermediate ceilings and partition walls.

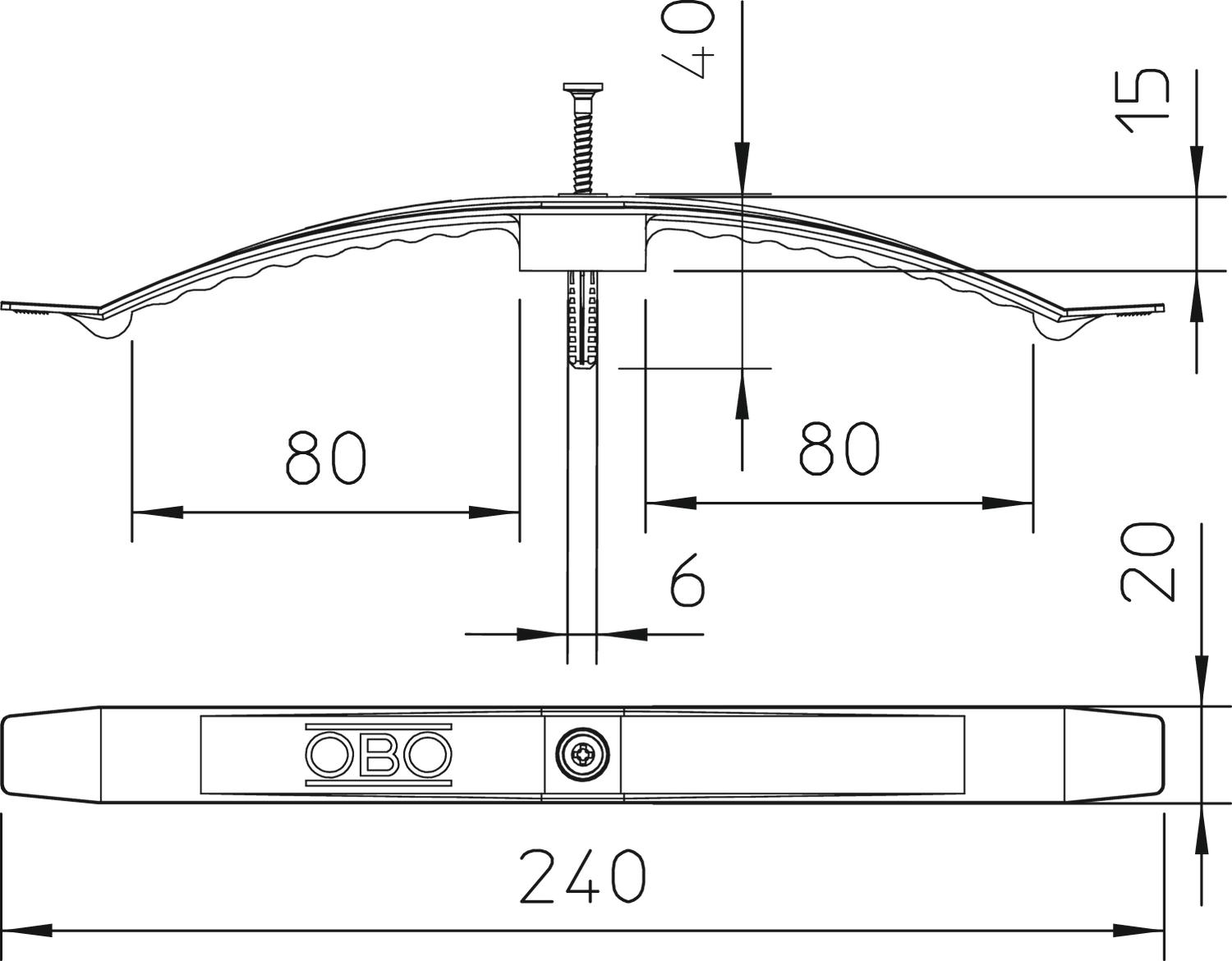

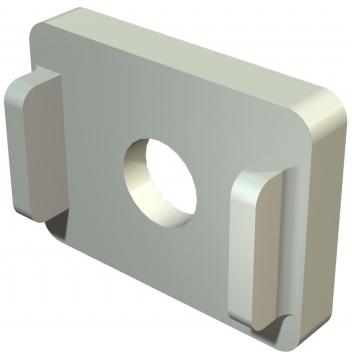

Clamping height 9 mm – with spacer 13 mm.
Fastening hole: 6 mm Ø.
2033 for max. 16 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 16
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2033 SP 16 2204983
100 piece

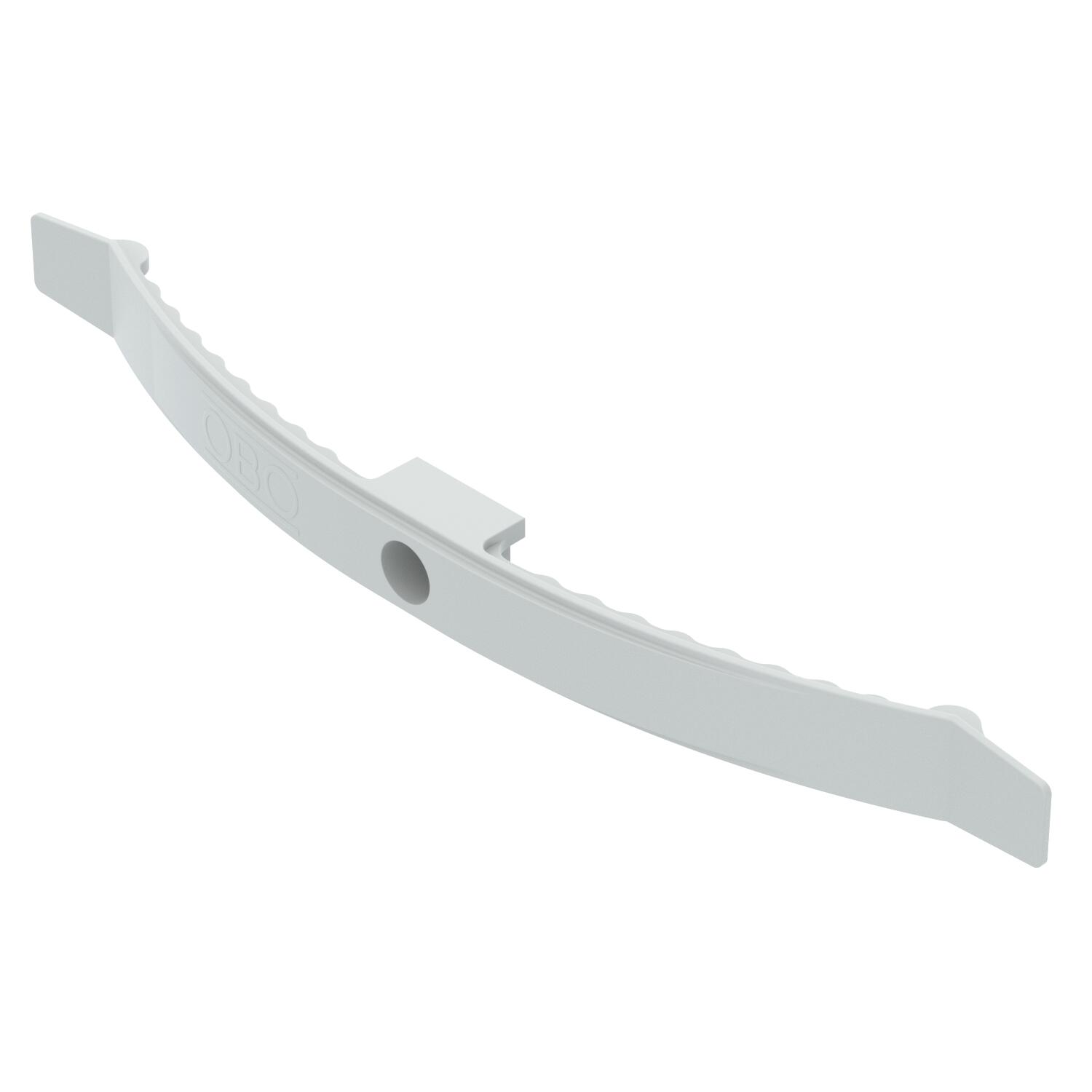

2033 16 2205033
25 piece
