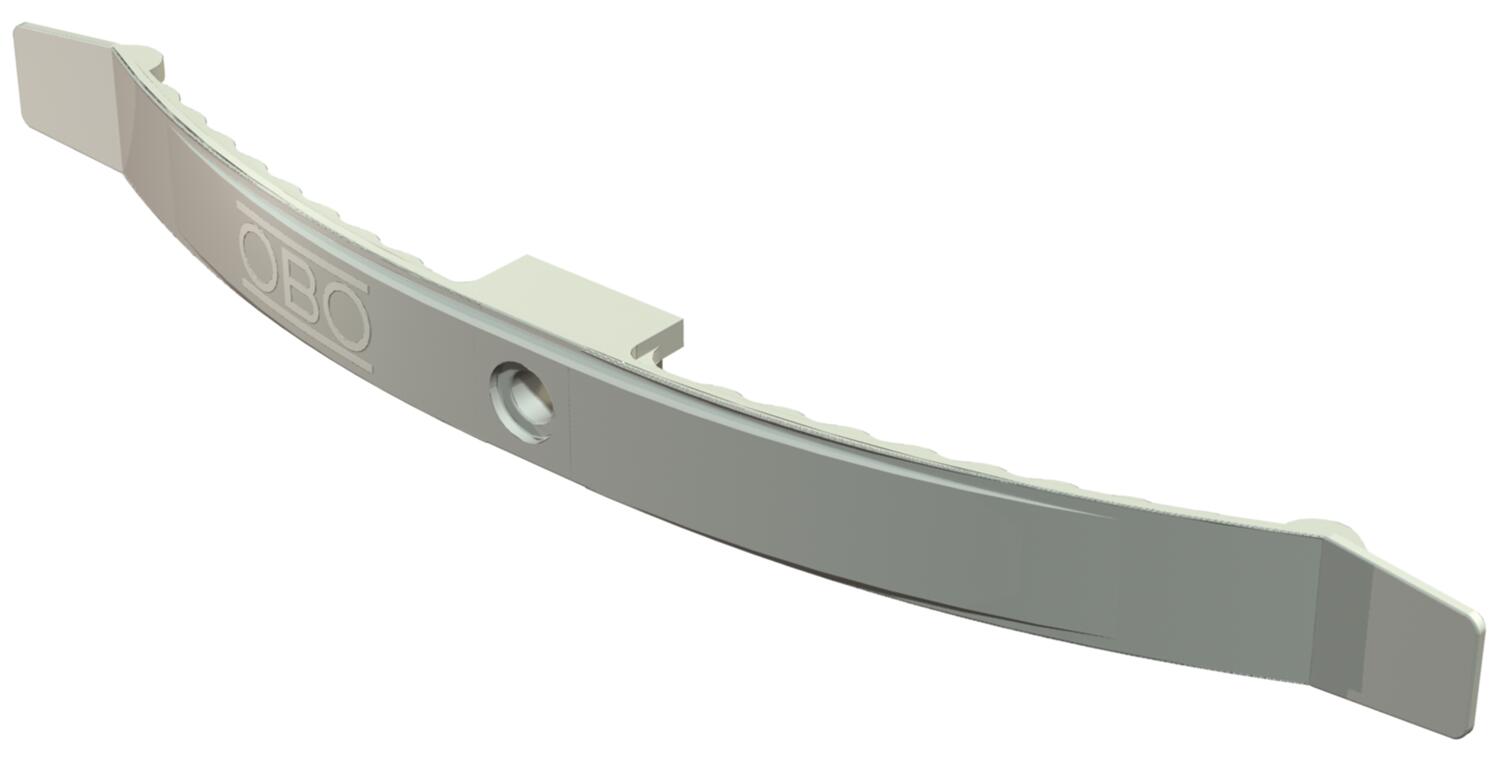

Pressure clip for 10 cables, flame resistant
Item no. 2204924 | EAN 4012195211211
- Product description
-
Product description
Flame-resistant version, specially for use in suspended ceilings.
Thermoplast. Polyester, stone grey RAL 7030, flame-resistant to VDE 0471/DIN IEC 695 Part 2-1, Test temperature 960 °C, respectively V-O to UL 94, halogen-free.

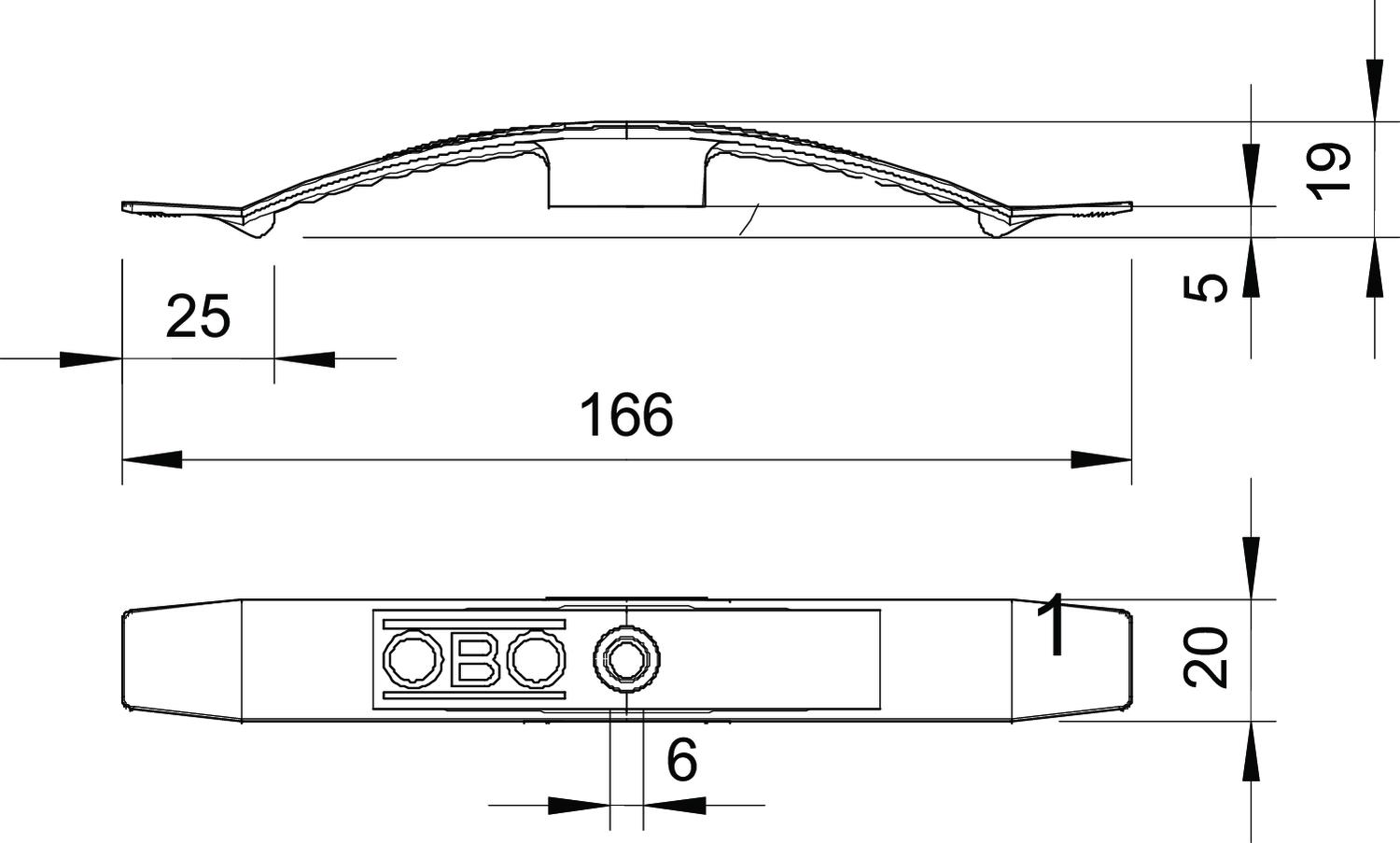

Clamping height: 9 mm, with spacer 13 mm.
Fastening hole: 6 mm Ø.
2034/F for max. 10 conductors NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Colour Stone grey; RAL 7030 Dimension 2x5 NYM3x1,5 Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C Flame-resistant version no Halogen-free yes Maintain electrical functions no Material Polybutylene terephthalate No. of conductors NYM 3 x 1.5 10 With anchor no - All types
