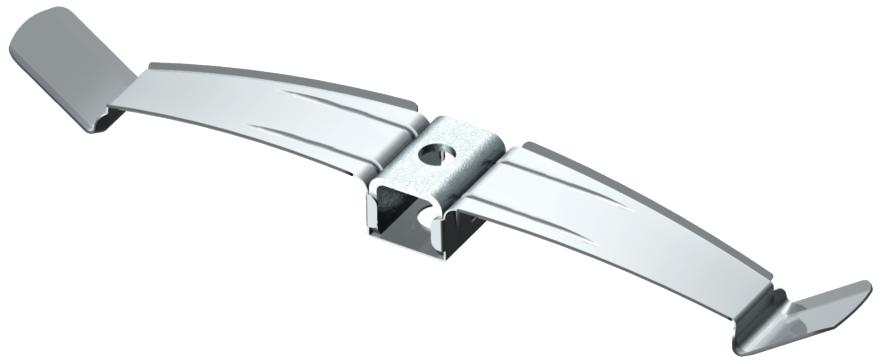

Pressure clip for 10 cables
Item no. 2204010 | EAN 4012195210672
- Product description
-
Product description
The metal pressure clip is halogen and fire load-free, and maintains a good mechanical stability even in fires. The pressure clip is also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 Part 12. The spacer 2033 D 15 x 3 G (must be ordered separately) increases the clamping height of pressure clips from 10 to 13 mm. The pressure clips are suitable for fireproof mounting above suspended fire protection ceilings in accordance with DIN 4102.
-
- Technical data
-
Technical data

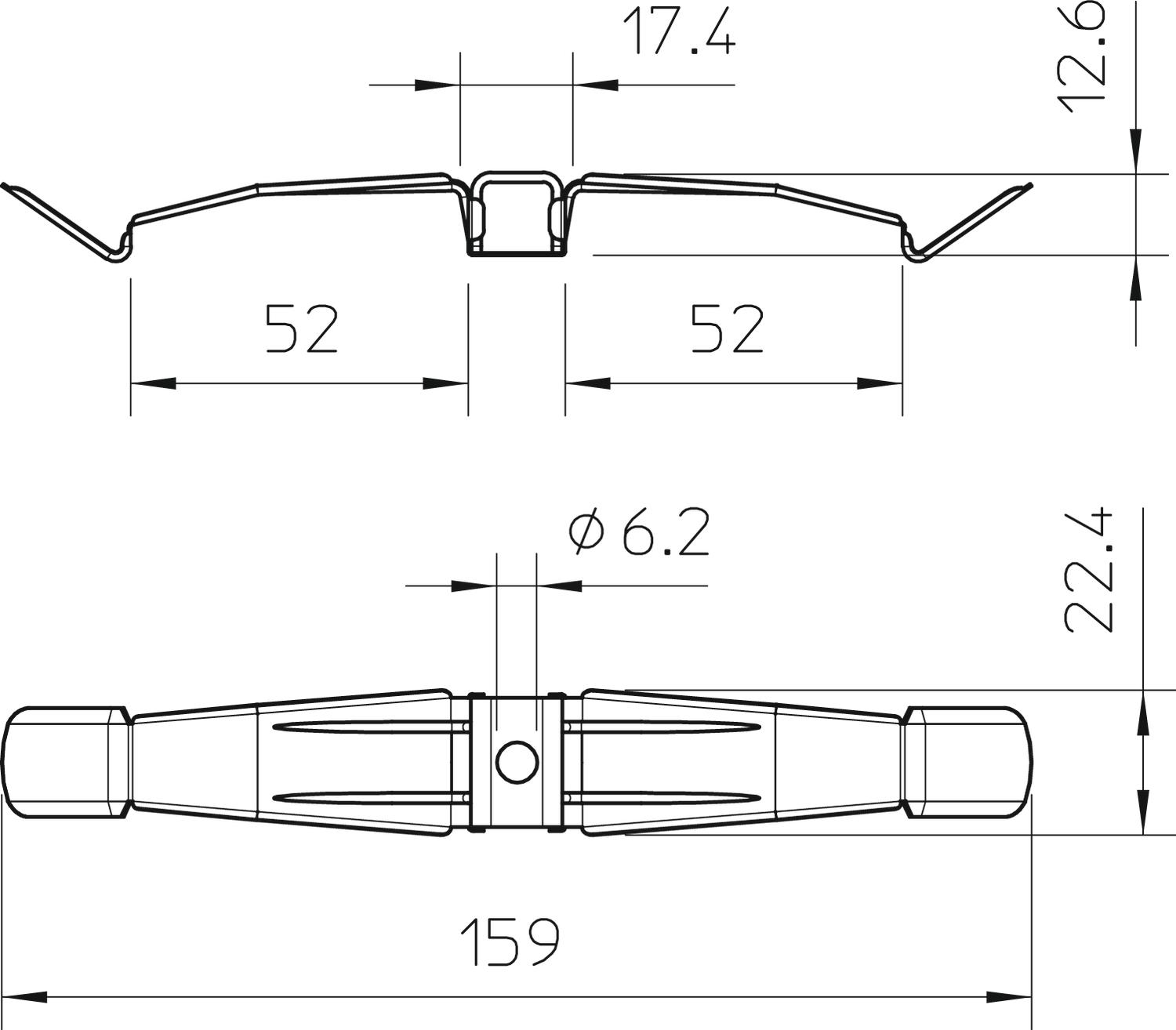

Dimension 2x5 NYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions yes Material Stainless steel No. of conductors NYM 3 x 1.5 10 Surface Bright, treated With anchor no - All types
- Downloads
-
Data sheet 2034 M A2 / 2204010 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2034 M A2 / 2204010 , 0.05MB , pdfREACH Declaration of conformity 2034 M A2 / 2204010 , 0.12MB , pdfRoHS Declaration of conformity 2034 M A2 / 2204010 , 0.12MB , pdf
