Plug-in seal for pipes, light grey
Item no. 2011530 | EAN 4012195246930
- Product description
-
Product descriptionPlug-in seal for junction boxes for direct insertion of metric pipes
-
- Technical data
-
Technical data

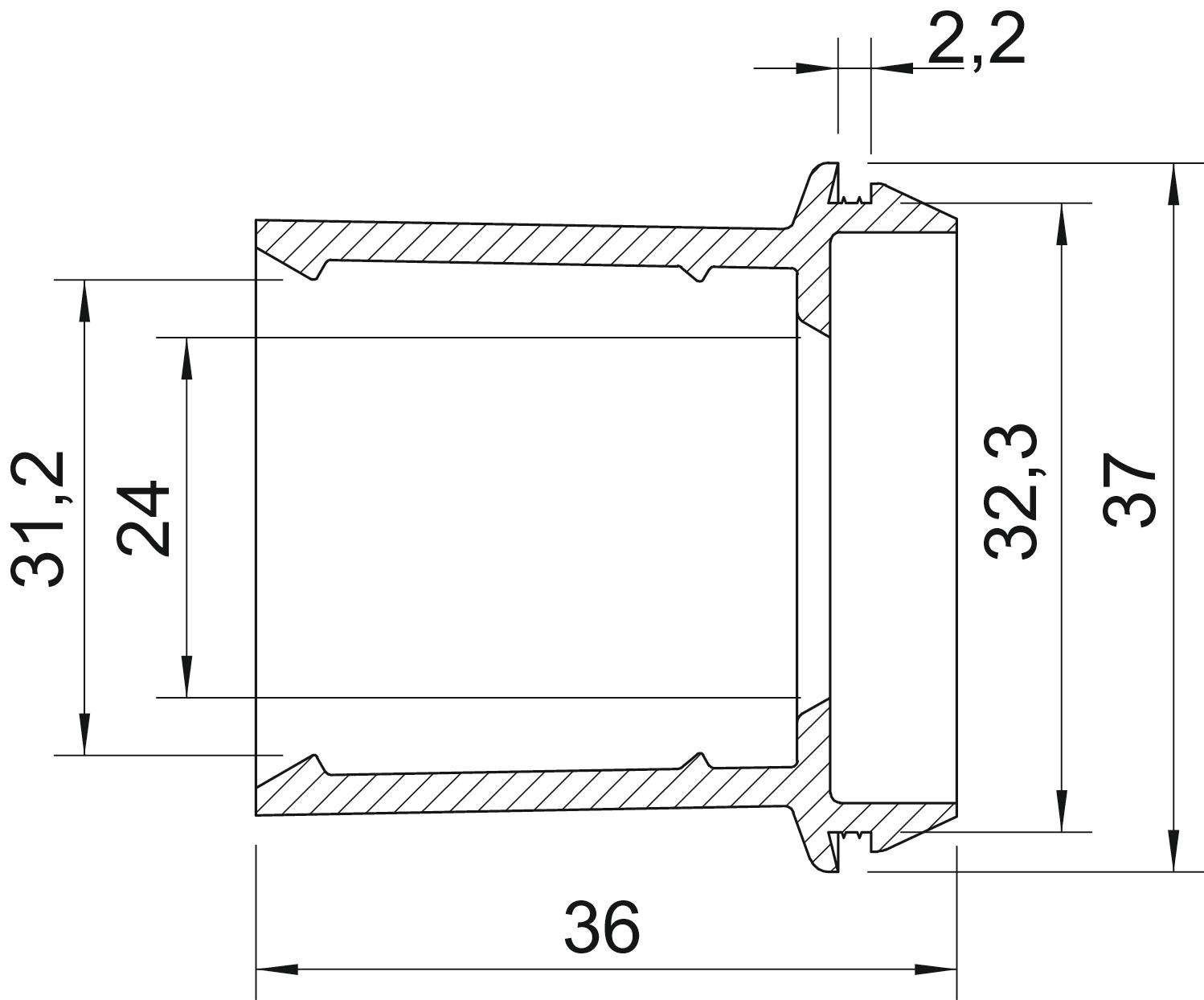

Colour Light grey; RAL 7035 Dimension Ø32/25-32 Dimension A 2,2 mm Dimension D1 37 mm Dimension D2 32,3 mm Dimension D3 24 mm Dimension D4 31,2 mm Dimension L 36 mm for diameter, max. 32 mm for diameter, min. 25 mm for wall thickness, max. 2,2 for wall thickness, min. 2,2 Halogen-free yes Material Thermoplastic elastomer Nominal diameter 32 mm Protection rating IP55 Size M32 Version for Open - All types
-
All types
- Downloads
-
Data sheet EDR 32 25-32 LGR / 2011530 , 0.18MB , pdfEU declaration of conformity EDR 32 25-32 LGR / 2011530 , 0.05MB , pdfREACH Declaration of conformity EDR 32 25-32 LGR / 2011530 , 0.12MB , pdfRoHS Declaration of conformity EDR 32 25-32 LGR / 2011530 , 0.12MB , pdf
