Plug-in seal EDVS, light grey | 17 | M20 | Light grey; RAL 7035
morepic-1 morepic-2

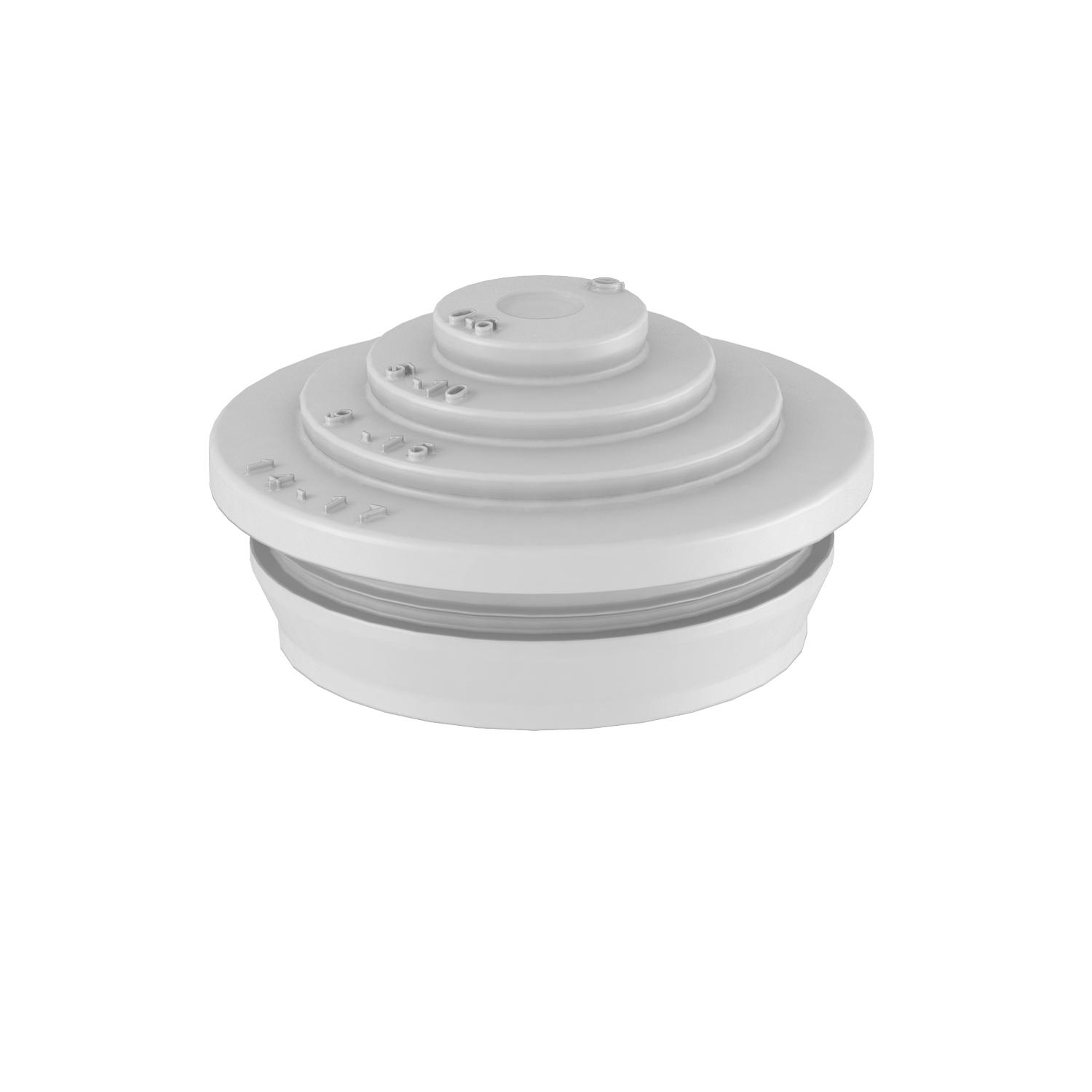

Plug-in seal EDVS, light grey

Item no. 2012375 | EAN 4012195105251

Light grey; RAL 7035
Product description

Product description

The push-in nipple can be cut back to suit the relevant cable diameter.
  • Indication of metric products
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension M20
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 17 mm
Halogen-free yes
Material Ethylene vinyl acetate
Nominal diameter 20 mm
Protection rating IP54
Size M20
Version for Cuttable

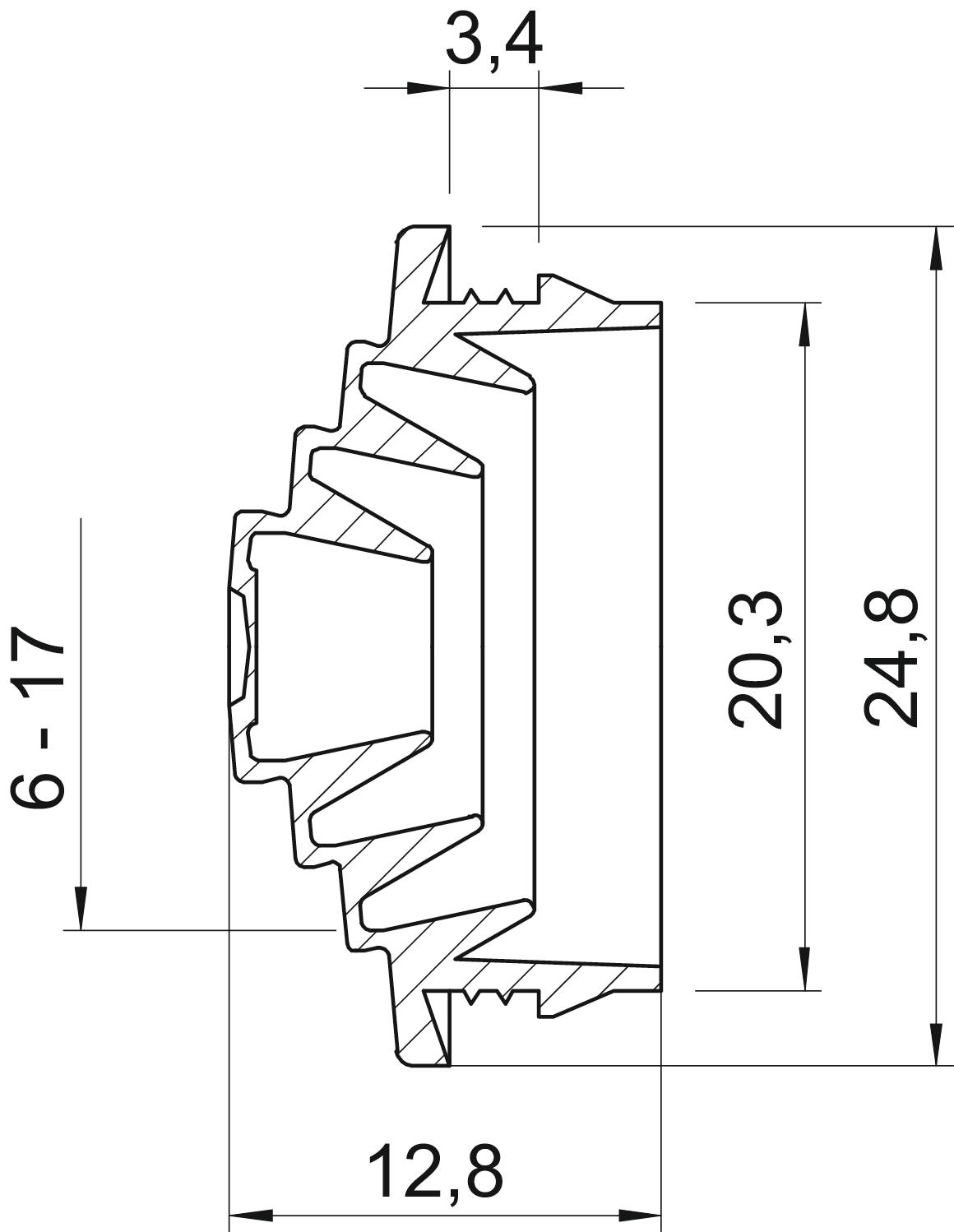

Dimensions

Dimension A 3,4 mm
Dimension D1 24,8 mm
Dimension D2 20,3 mm
Dimension D3 6 mm
Dimension D4 10 mm
Dimension D5 15 mm
Dimension L 12,8 mm
Dimension t 3,4 mm
All types

All types

Types for diameter, max. Size Colour Item no. Quantity SSU
EDVS M20 LGR 17 mm M20 Light grey; RAL 7035 2012375
100 piece
EDVS M25 LGR 22 mm M25 Light grey; RAL 7035 2012383
100 piece
EDVS M32 LGR 28 mm M32 Light grey; RAL 7035 2012391
50 piece
Downloads

Download

Download

Declaration of conformity EDVS M20 LGR / 2012375 , 0.05MB , pdf
Download
REACH Declaration of conformity EDVS M20 LGR / 2012375 , 0.12MB , pdf
Download
RoHS Declaration of conformity EDVS M20 LGR / 2012375 , 0.12MB , pdf
Download

EDVS M20 LGR / 2012375
