Plug-in seal EDK pure white

Item no. 2011689 | EAN 4012195303206

Item no. / Types

for diameter, min.	5 mm

for diameter, max.

Size

Colour

Product description

Product description

The plug-in seal can be cut back to suit the relevant cable diameter.

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	Ø25/5-20
Dimension A	2,2 mm
Dimension D1	29,5 mm
Dimension D2	25,4 mm
Dimension D3	5 mm
Dimension D4	14 mm
Dimension D5	15 mm
Dimension L	10,1 mm
for diameter, max.	20 mm

for diameter, min.	5 mm
for wall thickness, max.	2,2
for wall thickness, min.	2,2
Halogen-free	yes
Material	Thermoplastic elastomer
Nominal diameter	25 mm
Protection rating	IP55
Size	M25
Version for	Cuttable

All types

All types

Types	for diameter, min.	for diameter, max.	Size	Colour	Item no.	Quantity	SSU
EDK 25 LGR	5 mm	20 mm	M25	Light grey; RAL 7035	2011638	piece	100 piece
EDK 32 LGR	5 mm	25 mm	M32	Light grey; RAL 7035	2011646	piece	50 piece
EDK 40 LGR	5 mm	32 mm	M40	Light grey; RAL 7035	2011654	piece	25 piece
EDK 25 RW	5 mm	20 mm	M25	Pure white; RAL 9010	2011689	piece	100 piece
EDK 32 RW	5 mm	25 mm	M32	Pure white; RAL 9010	2011697	piece	50 piece
EDK 40 RW	5 mm	32 mm	M40	Pure white; RAL 9010	2011700	piece	25 piece

Downloads

Data sheet EDK 25 RW / 2011689 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

REACH Declaration of conformity EDK 25 RW / 2011689 , 0.12MB , pdf

Download

RoHS Declaration of conformity EDK 25 RW / 2011689 , 0.12MB , pdf

Download

Product graphic EDK 25 RW / 2011689, 62.05 kB, jpg

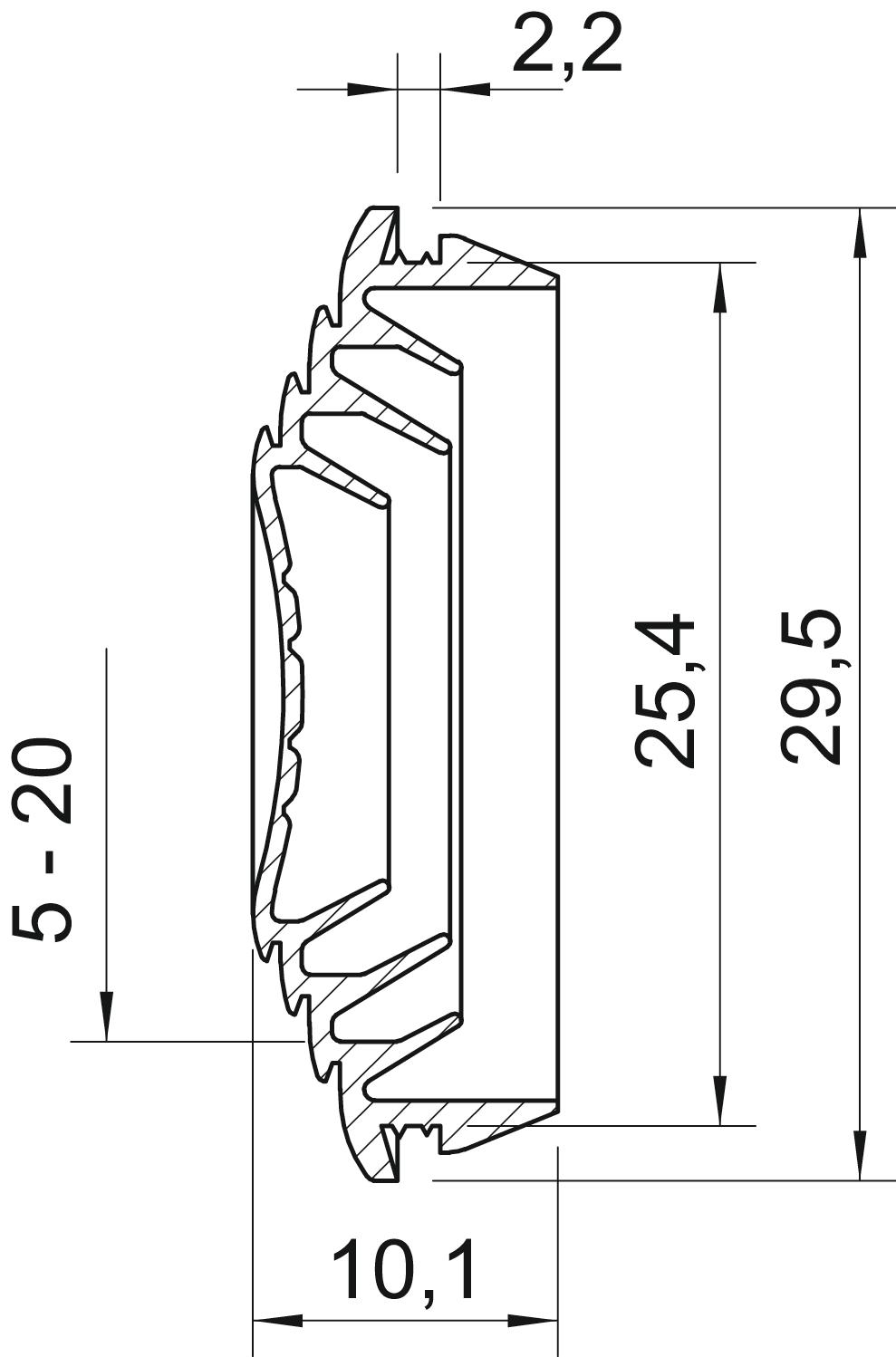

Scale drawing EDK 25 RW / 2011689, 74.43 kB, jpg
