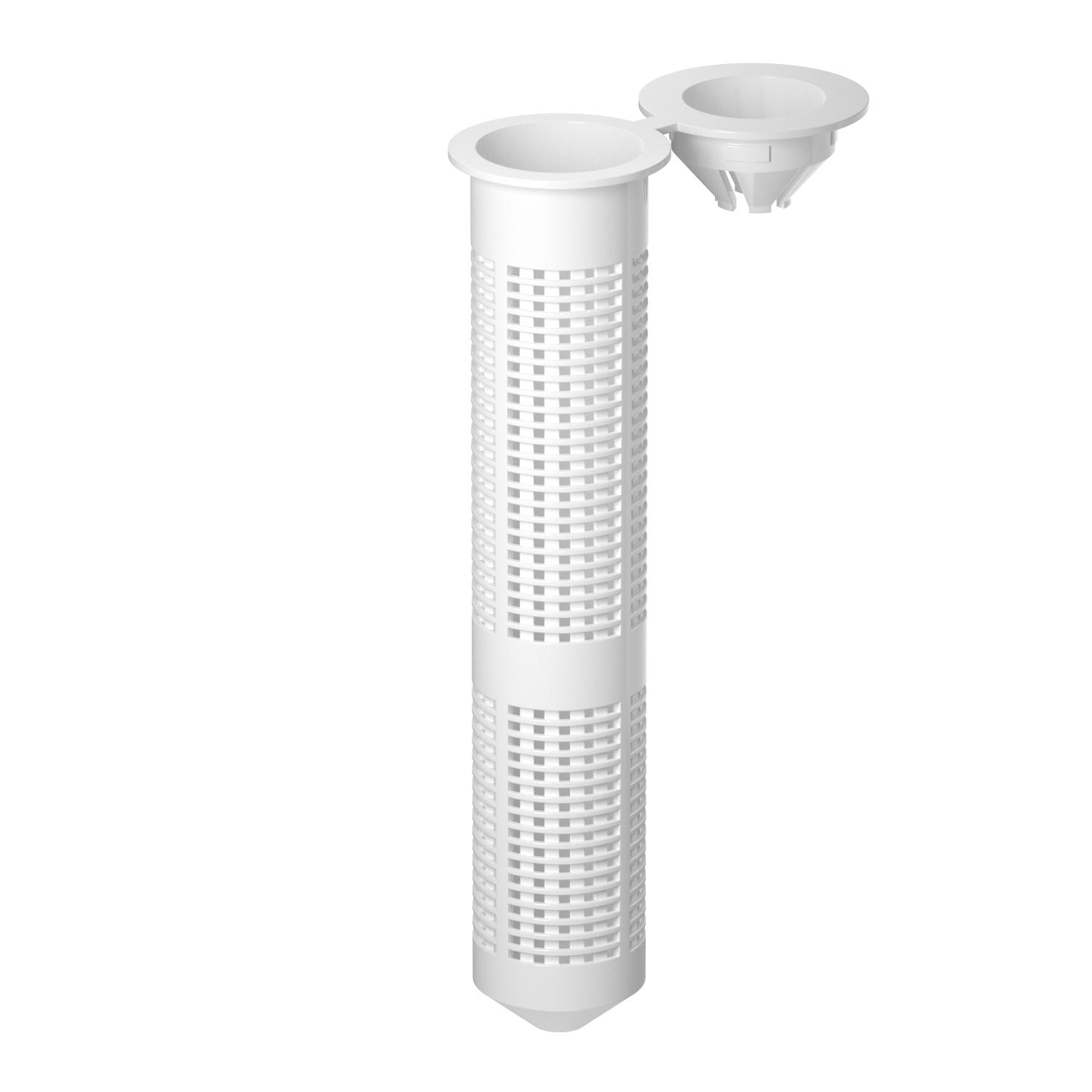

Plastic wire sleeve

Item no. 3497860 | EAN 4012196606900

Item no. / Types

Length

Dimension d

Product description

Product description

The plastic wire sleeve is a supplement to the anchor rod or internal thread sleeve and is used to install components on masonry.

The plastic wire sleeve VM-SH 12x80 is mounted with the anchor rod VMU-A 8x110.
The plastic wire sleeve VM-SH 16x85 is mounted with the anchor rods VMU-A 10x130 and VMU-A 10x150 or the internal thread sleeve VMU-IG M6x80.
The plastic wire sleeve VM-SH 16x130 is mounted with the anchor rod VMU-A 10x150.
The plastic wire sleeve VM-SH 20x85 is mounted with the anchor rod VMU-A 12x155 or the internal thread sleeve VMU-IG M8x80 and VMU-IG M10x80.

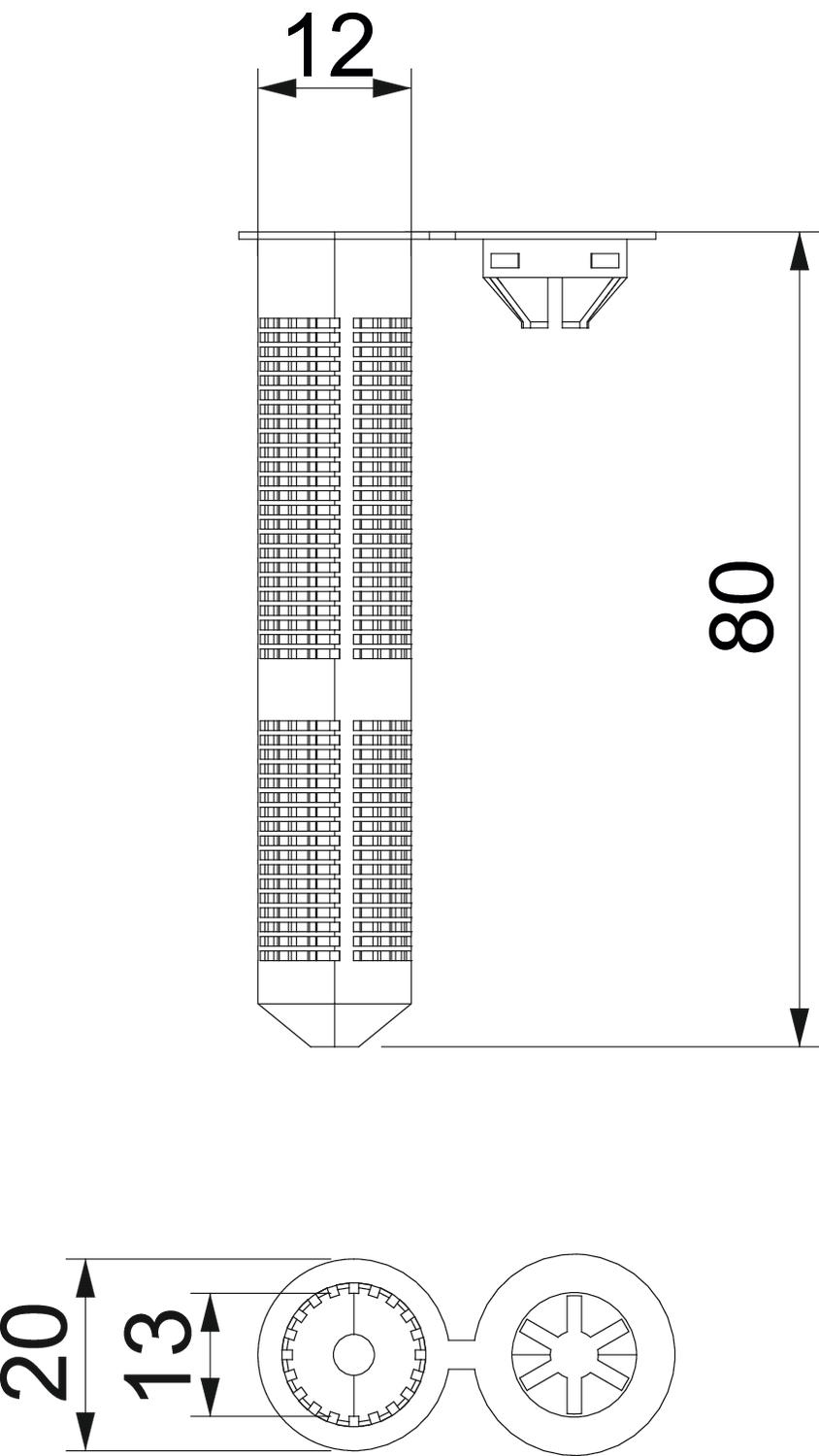

Technical data

Technical data

Colour	White
Dimension d	12 mm
Dimension L	80 mm
Length	80 mm

Material	Polyamide
Self-tapping	no
Version for	For pushing in
With flange	yes

All types

All types

Types	Length	Dimension d	Item no.	Quantity	SSU
VMU-SH 12x80	80 mm	12 mm	3497860	piece	10 piece
VMU-SH 16x85	85 mm	16 mm	3497862	piece	10 piece
VMU-SH 16x130	130 mm	16 mm	3497864	piece	10 piece
VMU-SH 20x85	85 mm	20 mm	3497866	piece	10 piece
