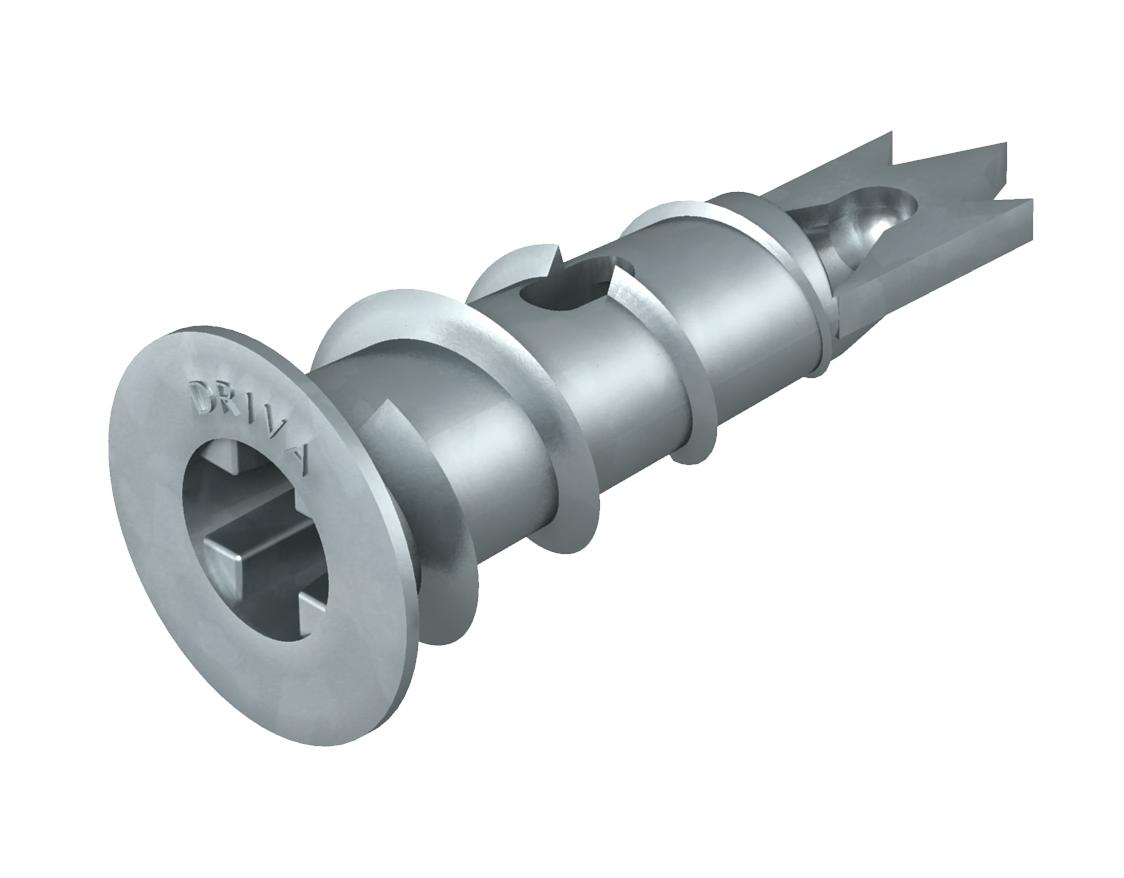

Plasterboard anchor
Item no. 3483214 | EAN 4012195418191
- Product description
-
Product description
To fasten components to plasterboard or fibre composite plates.
Minimum plate thickness: 12 mm.
For Ø 4.5 Golden Sprint or Sprint screws.
-
- Technical data
-
Technical data

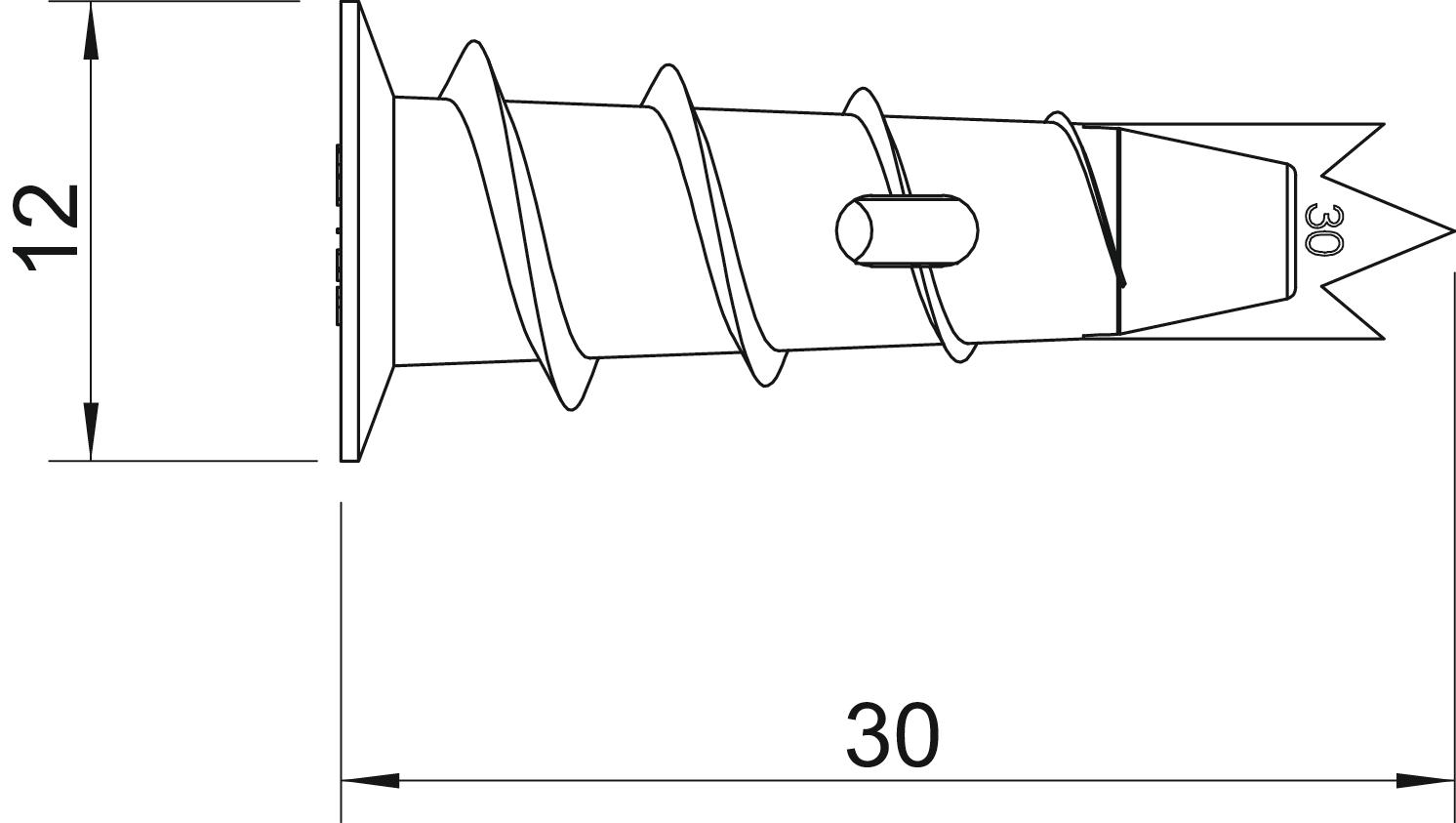

Diameter 12 mm Dimension Ø12x30 Material Die-cast zinc Permitted load range, tension zone 0,04 Version for Plasterboard anchor With bolts no With thread yes Dimensions
Dimension D 12 mm Dimension L 30 mm Length 30 mm - All types
- Downloads
-
Data sheet 910 GKDM 12x30 / 3483214 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdf
