Pipe sleeve with 4 fastening straps 63 | 65 | 94 | 67 | 26

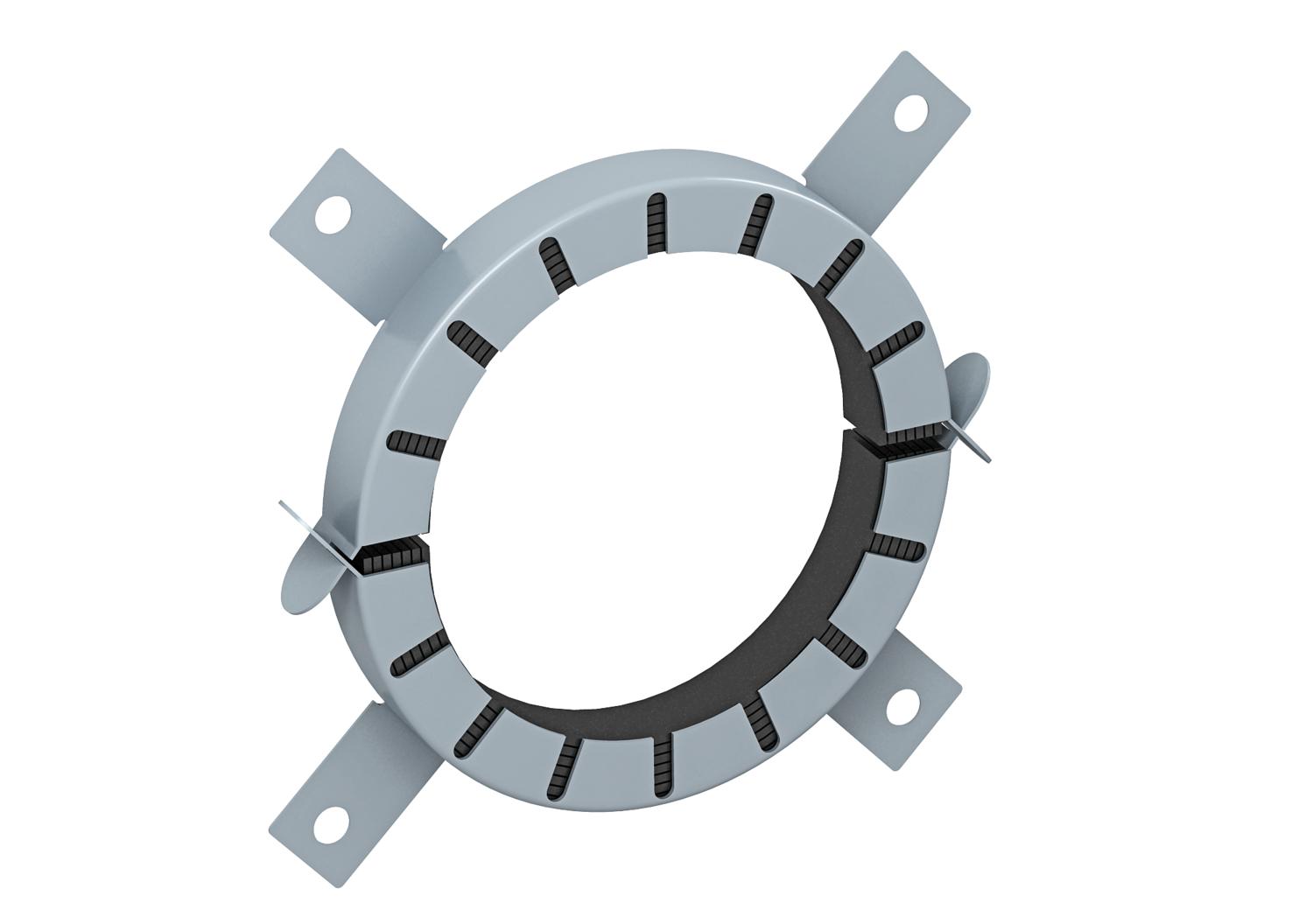

Pipe sleeve with 4 fastening straps

Item no. 7202204 | EAN 4012195856603

Item no. / Types

For pipe diameter, min.

For pipe diameter, max.

Dimension d min.

Dimension d

Dimension h

Product description

Product description

Pipe sleeve for combustible pipes.

If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.

Technical data

Technical data

Accessories required	yes
Colour	Grey
Dimension	Ø63mm
Dimension d	67 mm
Dimension d min.	94 mm

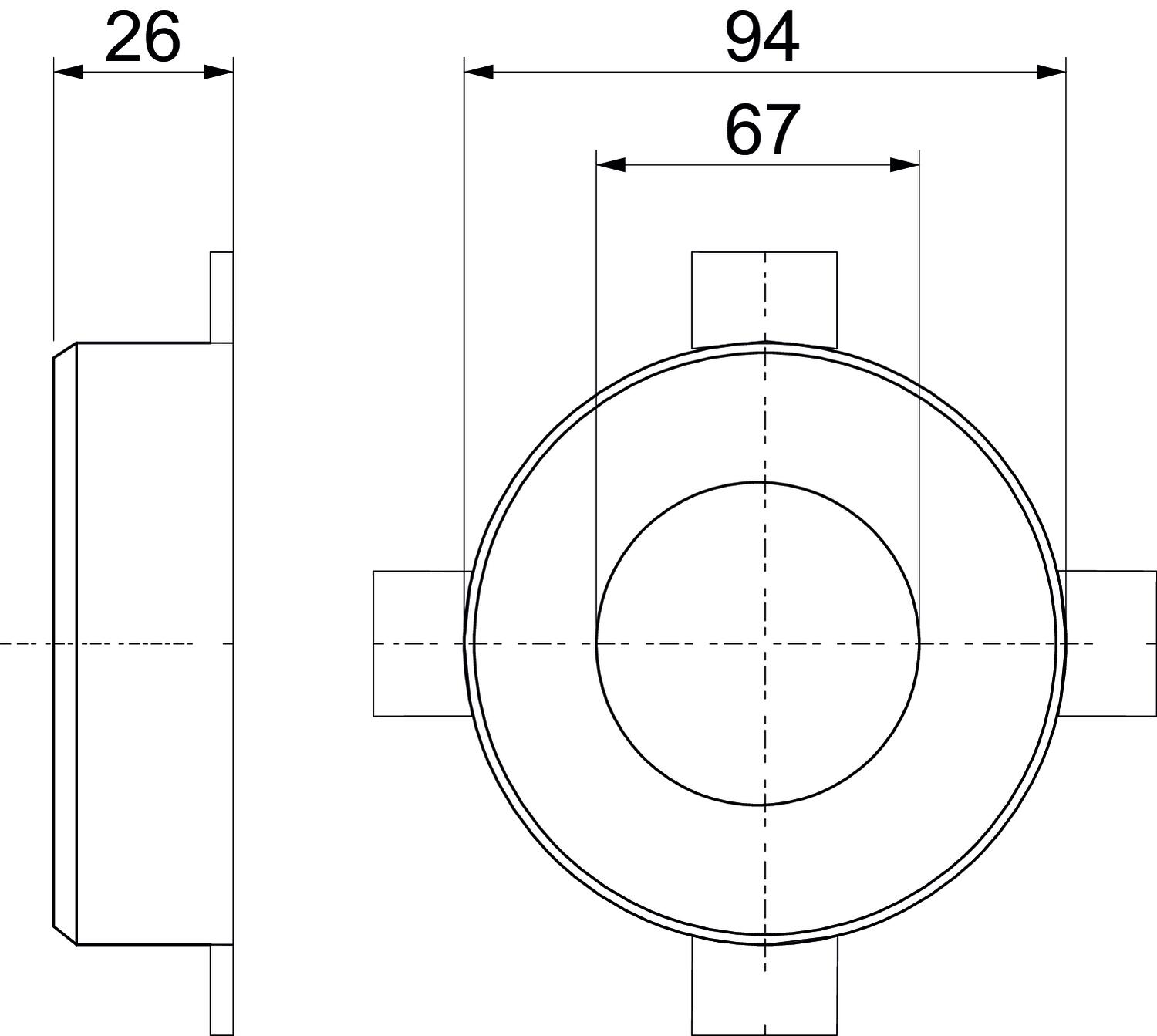

Dimension h	26 mm

For pipe diameter, max.	65 mm
For pipe diameter, min.	63 mm
Height	26 mm
Length	94 mm
Material	Intumescent material
Width	94 mm

All types

All types

Types	For pipe diameter, min.	For pipe diameter, max.	Dimension d min.	Dimension d	Dimension h	Item no.	Quantity	SSU
TCX-063	63 mm	65 mm	94 mm	67 mm	26 mm	7202204	piece	1 piece
TCX-075	75 mm	77 mm	106 mm	79 mm	26 mm	7202205	piece	1 piece
TCX-090	90 mm	92 mm	132 mm	94 mm	26.6 mm	7202206	piece	1 piece
TCX-110	110 mm	112 mm	155 mm	114 mm	26.6 mm	7202207	piece	1 piece
TCX-125	125 mm	127 mm	172 mm	129 mm	40 mm	7202208	piece	1 piece
