- Product description
-
Product description

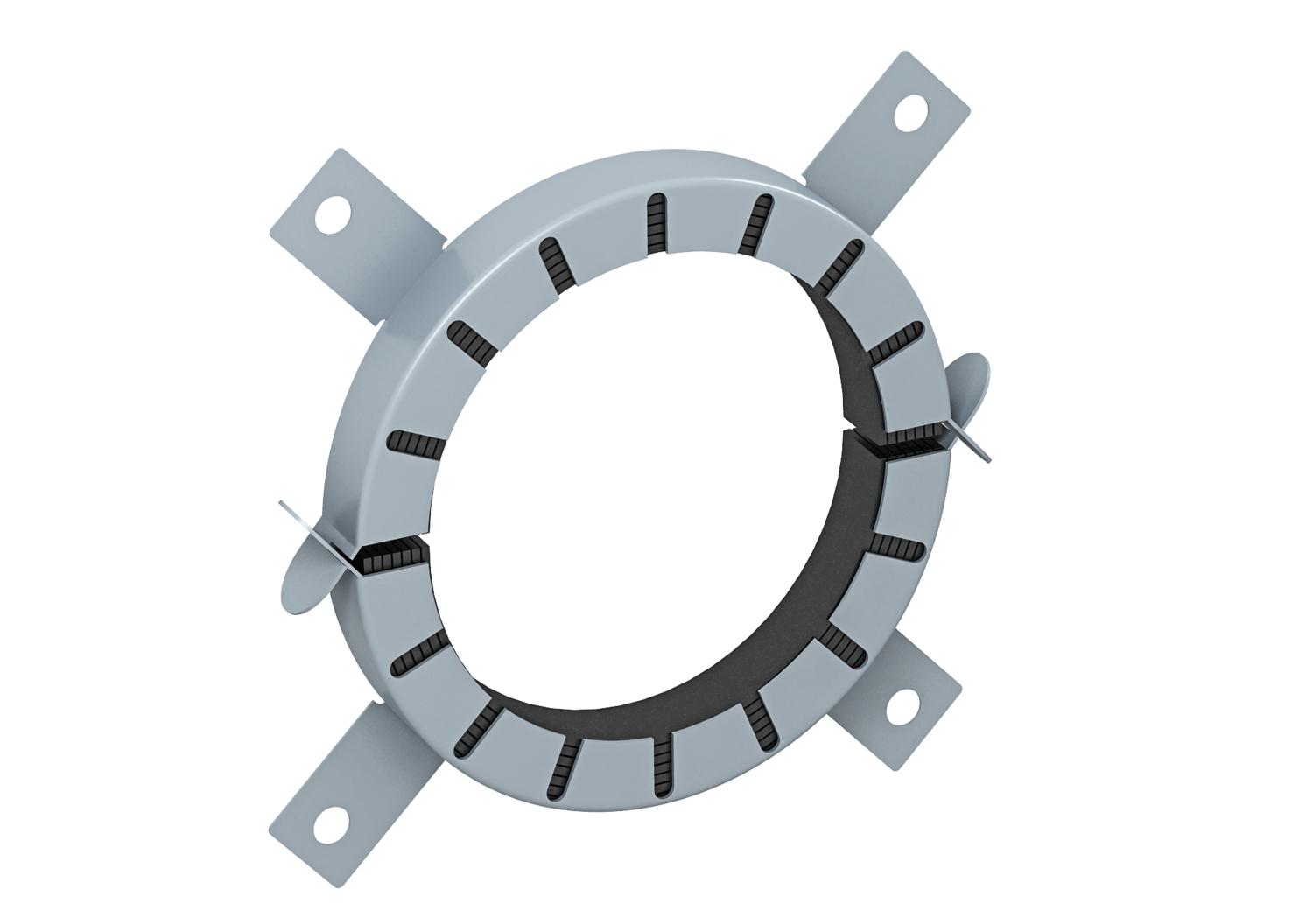

Pipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.
- Technical data
-
Technical data

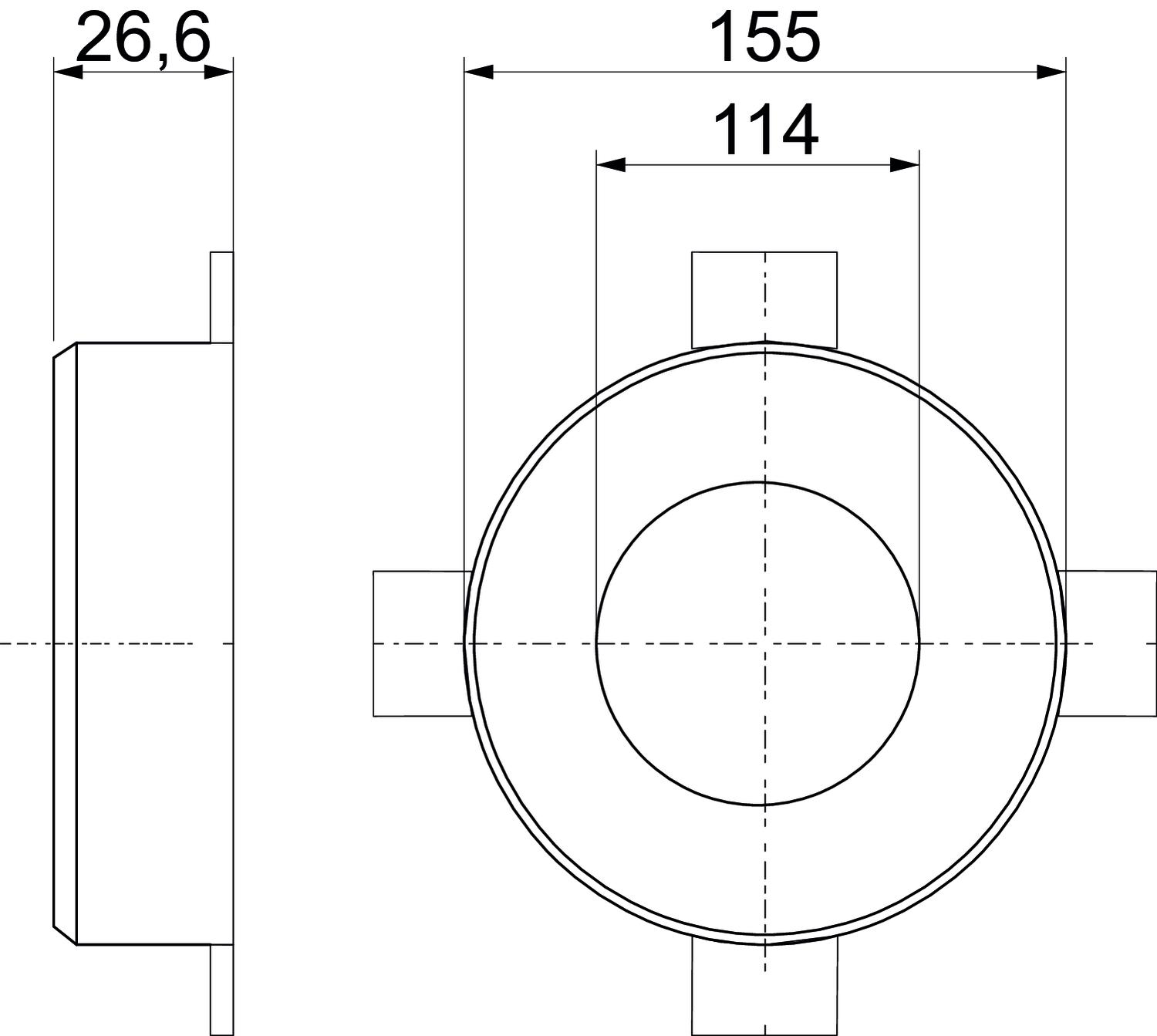

Accessories required yes Colour Grey Dimension Ø110mm Dimension d 114 mm Dimension d min. 155 mm Dimension h 26,6 mm For pipe diameter, max. 112 mm For pipe diameter, min. 110 mm Height 26,6 mm Length 155 mm Material Intumescent material Width 155 mm - All types
-
All types
- Downloads
-
Data sheet TCX-110 / 7202207 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfDeclaration of conformity TCX-110 / 7202207 , 0.11MB , pdfREACH Declaration of conformity TCX-110 / 7202207 , 0.12MB , pdfRoHS Declaration of conformity TCX-110 / 7202207 , 0.12MB , pdfApproval certificate European Technical Approval, PYROCOMB® , 0.13MB , pdfApproval certificate European technical approval, PYROCOMB® Tubes , 0.16MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, PYROCOMB® Tubes , 0.08MB , pdfSafety data sheet Safety data sheet, PYROCOMB® pipe sleeve , 0.06MB , pdf
