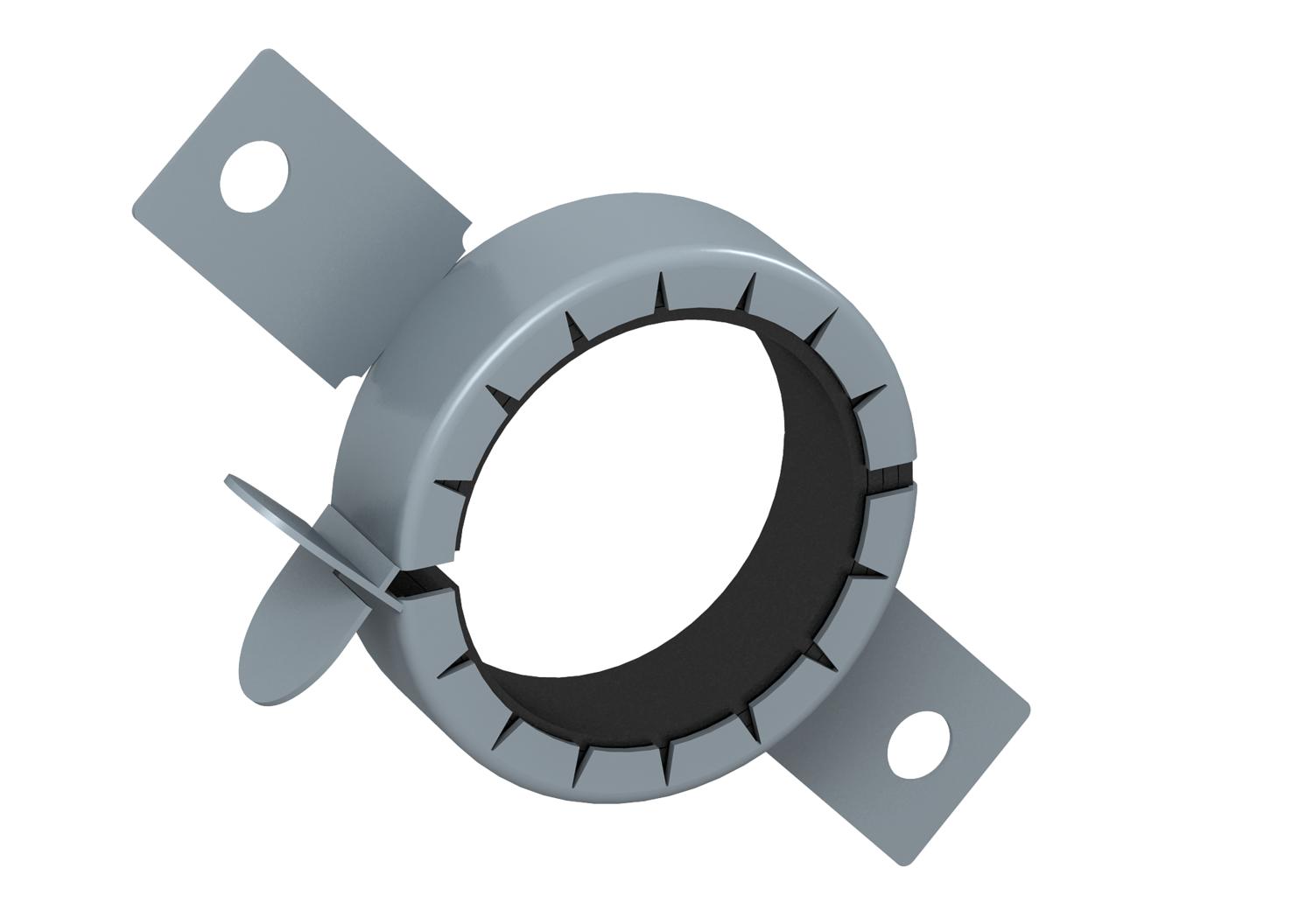

Pipe sleeve with 2 fastening straps 32 | 34 | 50 | 36 | 26

Pipe sleeve with 2 fastening straps

Item no. 7202200 | EAN 4012195856559

Item no. / Types

For pipe diameter, min.

For pipe diameter, max.

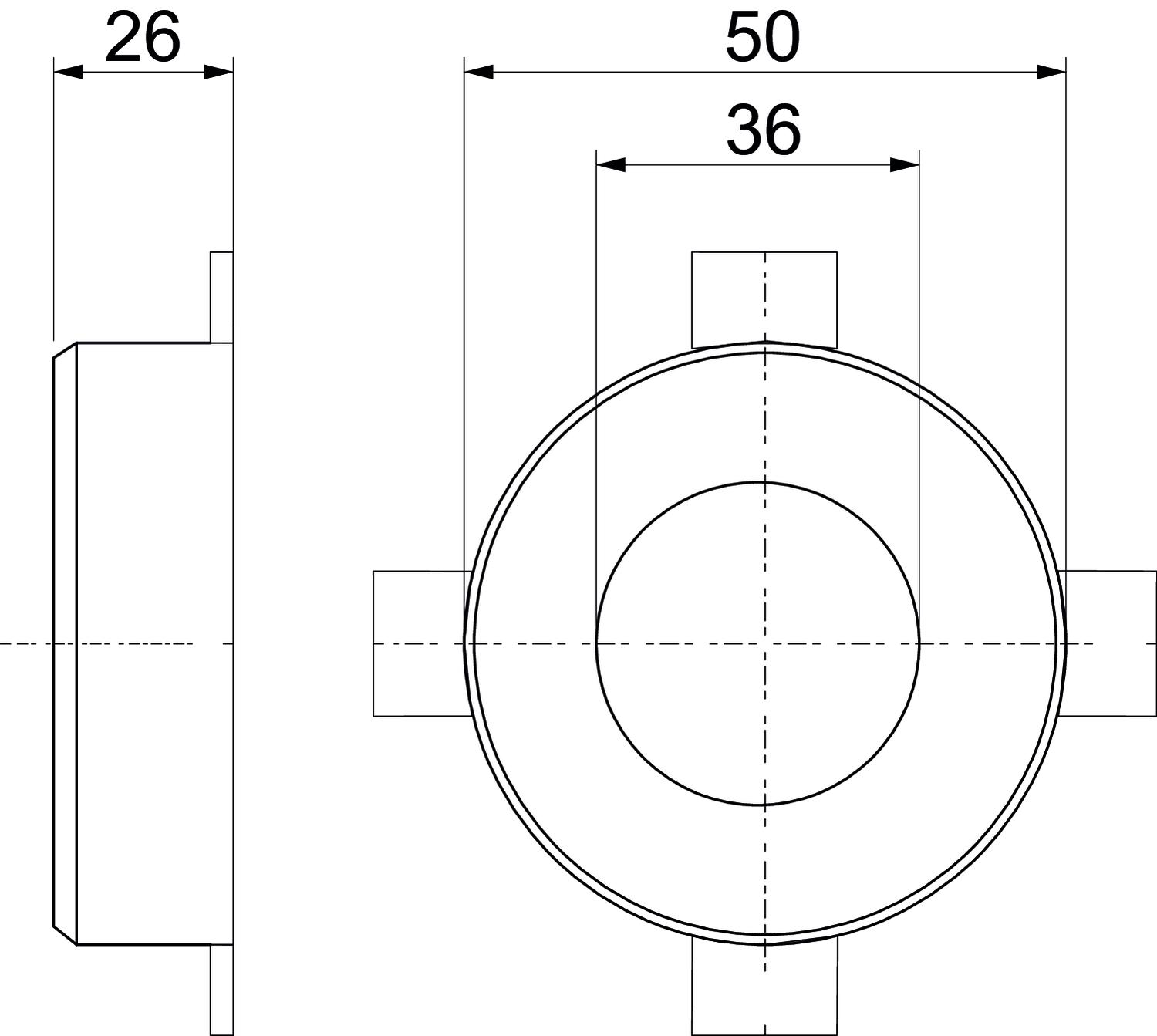

Dimension d min.

Dimension d

Dimension h	26 mm

Product description

Product description

Pipe sleeve for combustible pipes.

If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M6 threaded rods.

Technical data

Technical data

Accessories required	yes
Colour	Grey
Dimension	Ø32mm
Dimension d	36 mm
Dimension d min.	50 mm
Dimension h	26 mm

For pipe diameter, max.	34 mm
For pipe diameter, min.	32 mm
Height	26 mm
Length	50 mm
Material	Intumescent material
Width	50 mm

All types

All types

Types	For pipe diameter, min.	For pipe diameter, max.	Dimension d min.	Dimension d	Dimension h	Item no.	Quantity	SSU
TCX-032	32 mm	34 mm	50 mm	36 mm	26 mm	7202200	piece	1 piece
TCX-040	40 mm	42 mm	58 mm	44 mm	26 mm	7202201	piece	1 piece
TCX-050	50 mm	52 mm	68 mm	54 mm	26 mm	7202203	piece	1 piece
