Note: This article is discontinued.

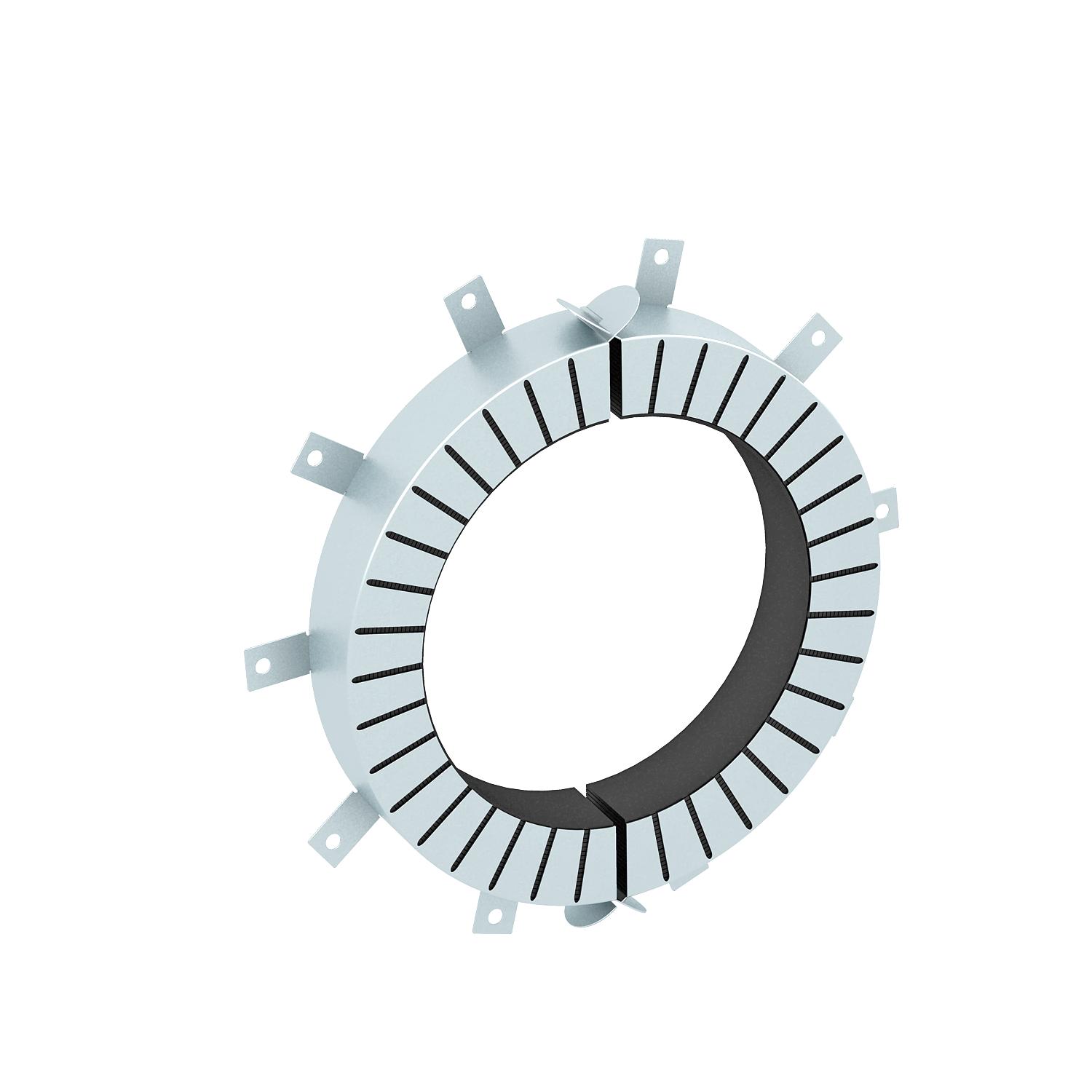

Pipe sleeve with 10 fastening straps
Item no. 7202215 | EAN 4012196086931
- Product description
-
Product descriptionPipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
-
- Technical data
-
Technical data

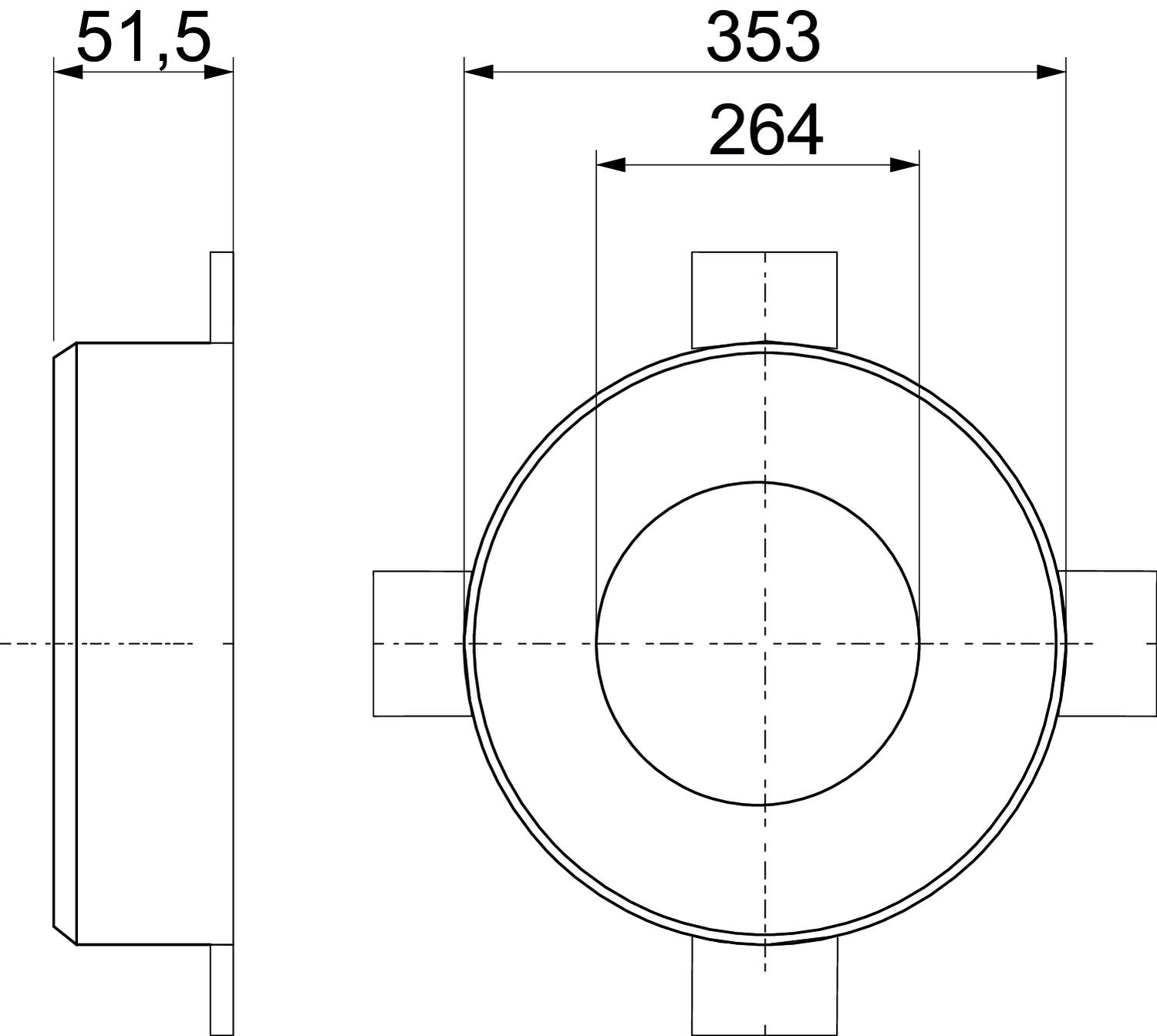

Accessories required yes Dimension Ø250mm Dimension d 264 mm Dimension d min. 353 mm Dimension h 51,5 mm For pipe diameter, max. 252 mm For pipe diameter, min. 250 mm Height 51,5 mm Length 353 mm Material Intumescent material Surface Strip galvanized Width 353 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Insulation layer creator in a cartridge
DSX-K 7202300 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
Data sheet TCX-250 / 7202215 , 0.24MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity TCX-250 / 7202215 , 0.11MB , pdfDeclaration of performance TCX-250 / 7202215 , 0.78MB , pdfDeclaration of performance TCX-250 / 7202215 , 0.73MB , pdfApproval certificate European Technical Approval, PYROCOMB® , 0.13MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfSafety data sheet Safety data sheet, PYROCOMB® pipe sleeve , 0.06MB , pdf
