Note: This article is discontinued.

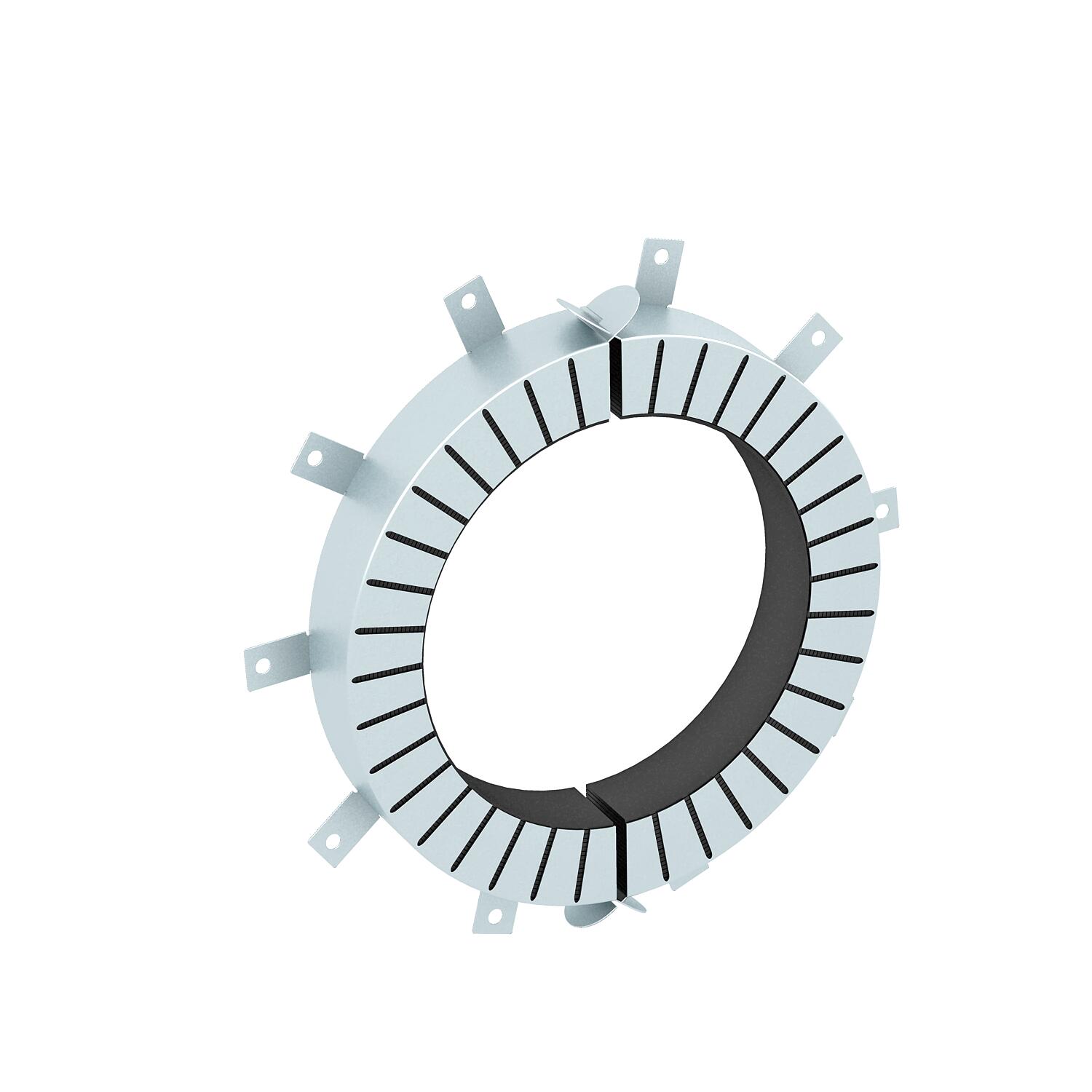

Pipe sleeve with 10 fastening straps

Item no. 7202213 | EAN 4012196086924

51.5 mm
Product description

Product description

Pipe sleeve for combustible pipes.

If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories required yes

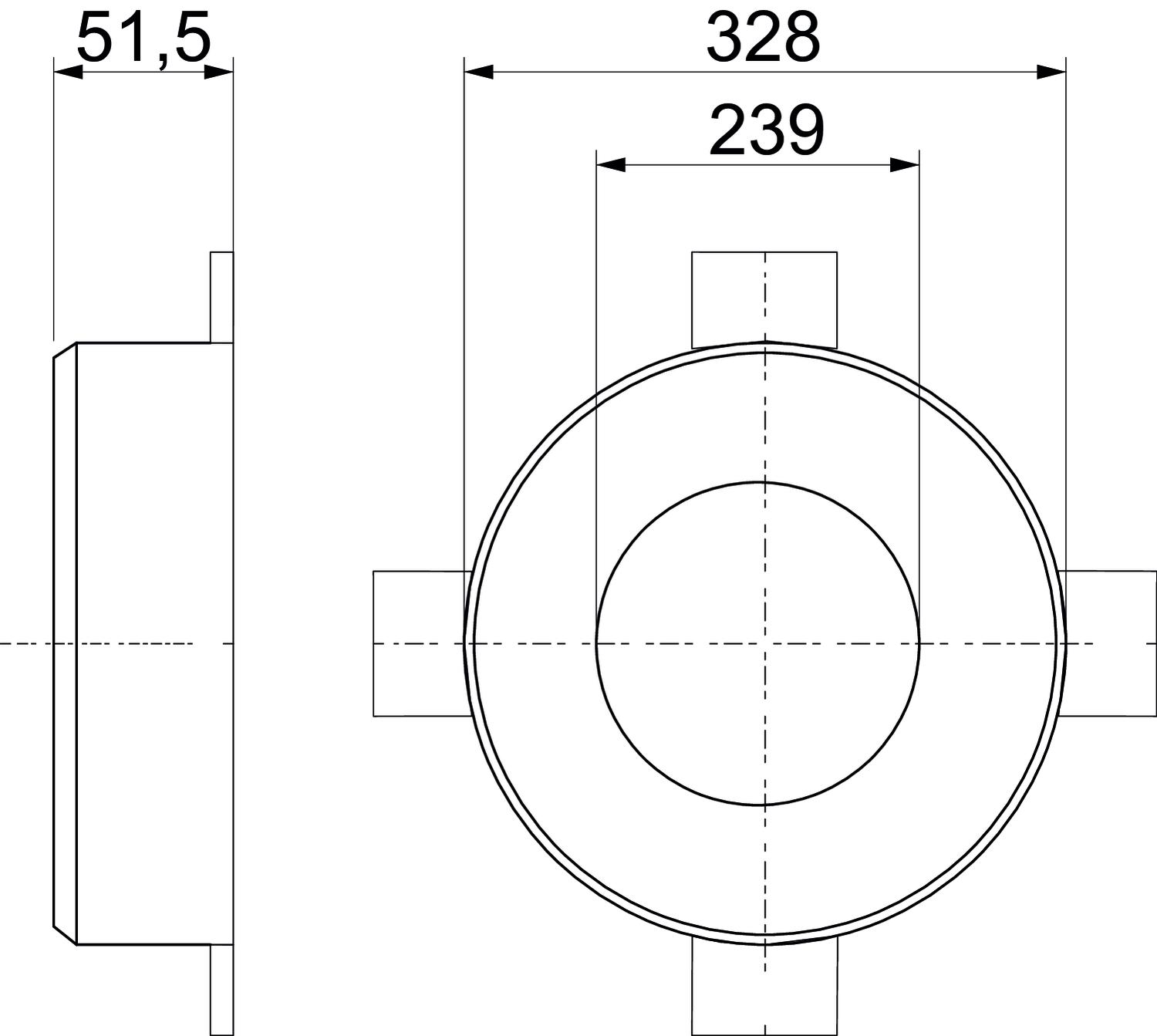

Dimension Ø225mm
Dimension d 239 mm
Dimension d min. 328 mm
Dimension h 51,5 mm
For pipe diameter, max. 227 mm
For pipe diameter, min. 225 mm
Height 51,5 mm
Length 328 mm
Material Intumescent material
Surface Strip galvanized
Width 328 mm
All types

All types

Types For pipe diameter, min. For pipe diameter, max. Dimension d min. Dimension d Dimension h Item no. Quantity SSU
TCX-225 225 mm 227 mm 328 mm 239 mm 51.5 mm 7202213
1 piece
TCX-250 250 mm 252 mm 353 mm 264 mm 51.5 mm 7202215
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Insulation layer creator in a cartridge Insulation layer creator in a cartridge DSX-K 7202300
1 piece
Identification plate DE Identification plate DE KS-S DE 7205425
1 piece
