Pipe end cap, splittable, PG, light grey

Item no. 2044542 | EAN 4012196594160

Product description

Product description

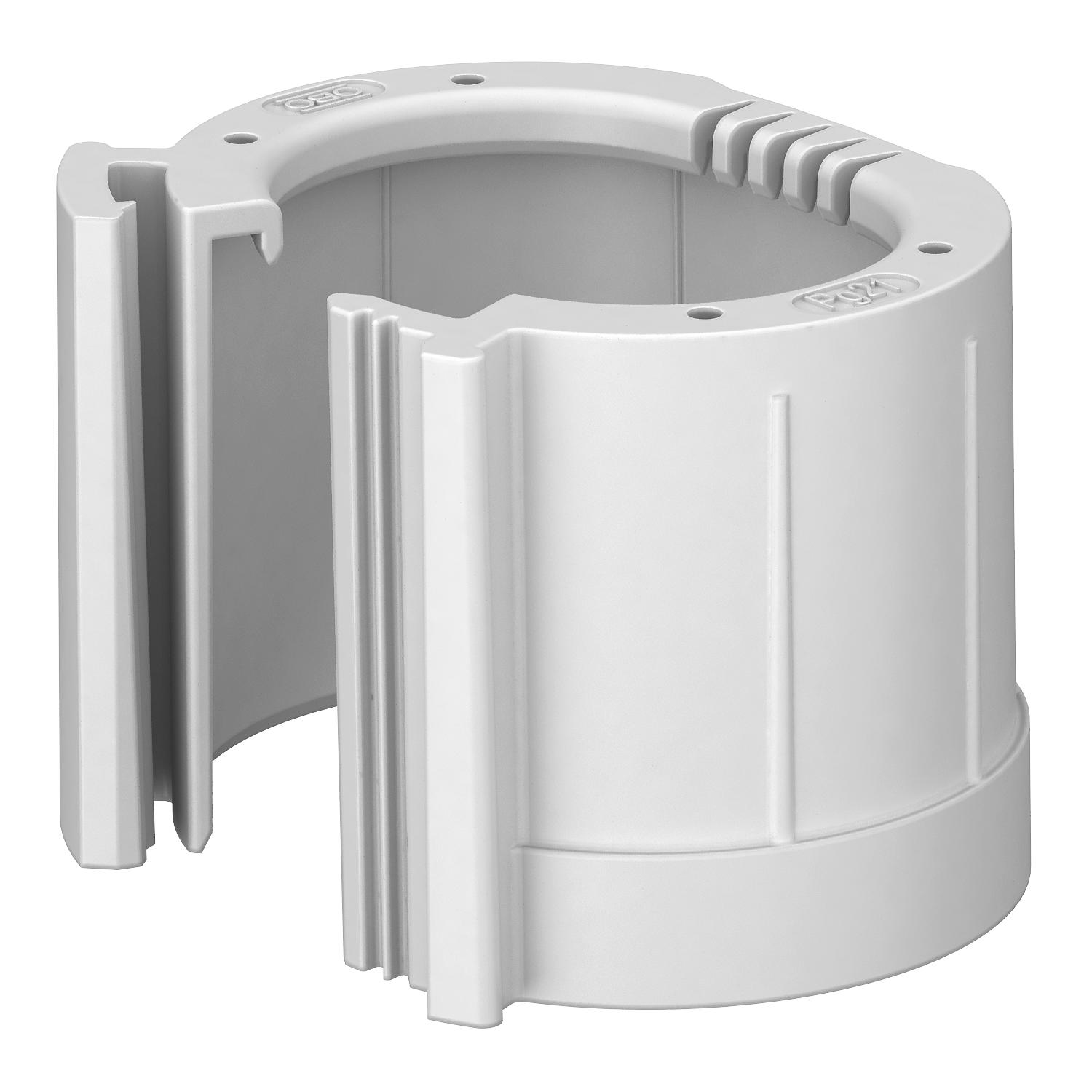

Separable pipe end cap to slot onto PG electrical installation pipes.

The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
  • Halogen-free; without chlorine, fluorine and bromine
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Brushed surface no
Colour Light grey; RAL 7035

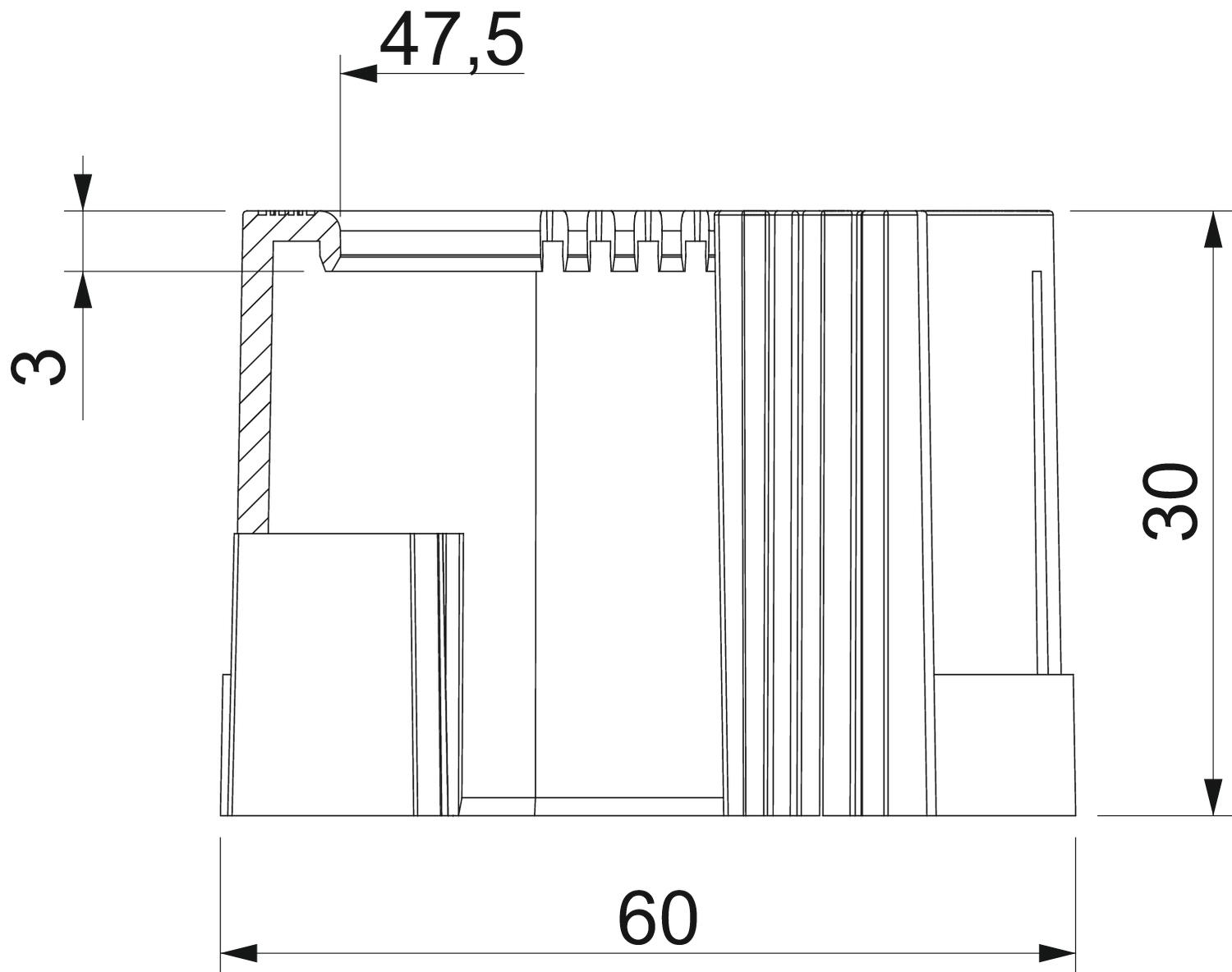

Dimension PG42
Dimension D1 60 mm
Dimension D2 47,5 mm
Dimension L1 30 mm
Dimension L2 3 mm
for pipe diameter 54 mm
Material Polyethylene
Polished surface no
Size PG42
Version for Connector
All types

All types

Types Size Item no. Quantity SSU
129 TB PG9 PG9 2044509
50 piece
129 TB PG11 PG11 2044511
50 piece
129 TB PG13,5 PG13,5 2044513
50 piece
129 TB PG16 PG16 2044516
50 piece
129 TB PG21 PG21 2044521
50 piece
129 TB PG29 PG29 2044529
50 piece
129 TB PG36 PG36 2044536
30 piece
129 TB PG42 PG42 2044542
30 piece
129 TB PG48 PG48 2044548
20 piece
