- Product description
-
Product description

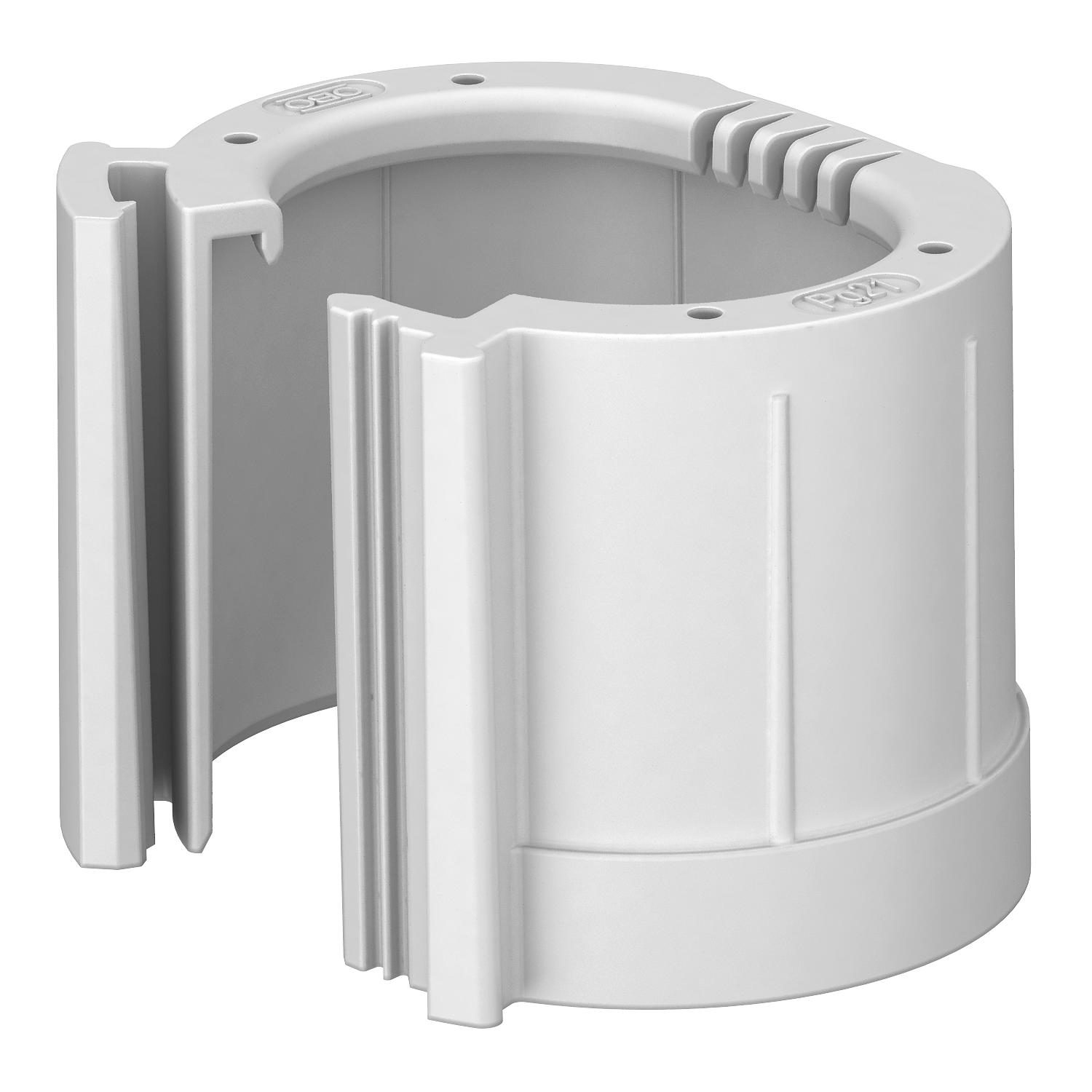

Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data
Brushed surface no Colour Light grey; RAL 7035 Dimension PG16 for pipe diameter 22,5 mm Material Polyethylene Polished surface no Size PG16 Version for Connector Dimensions

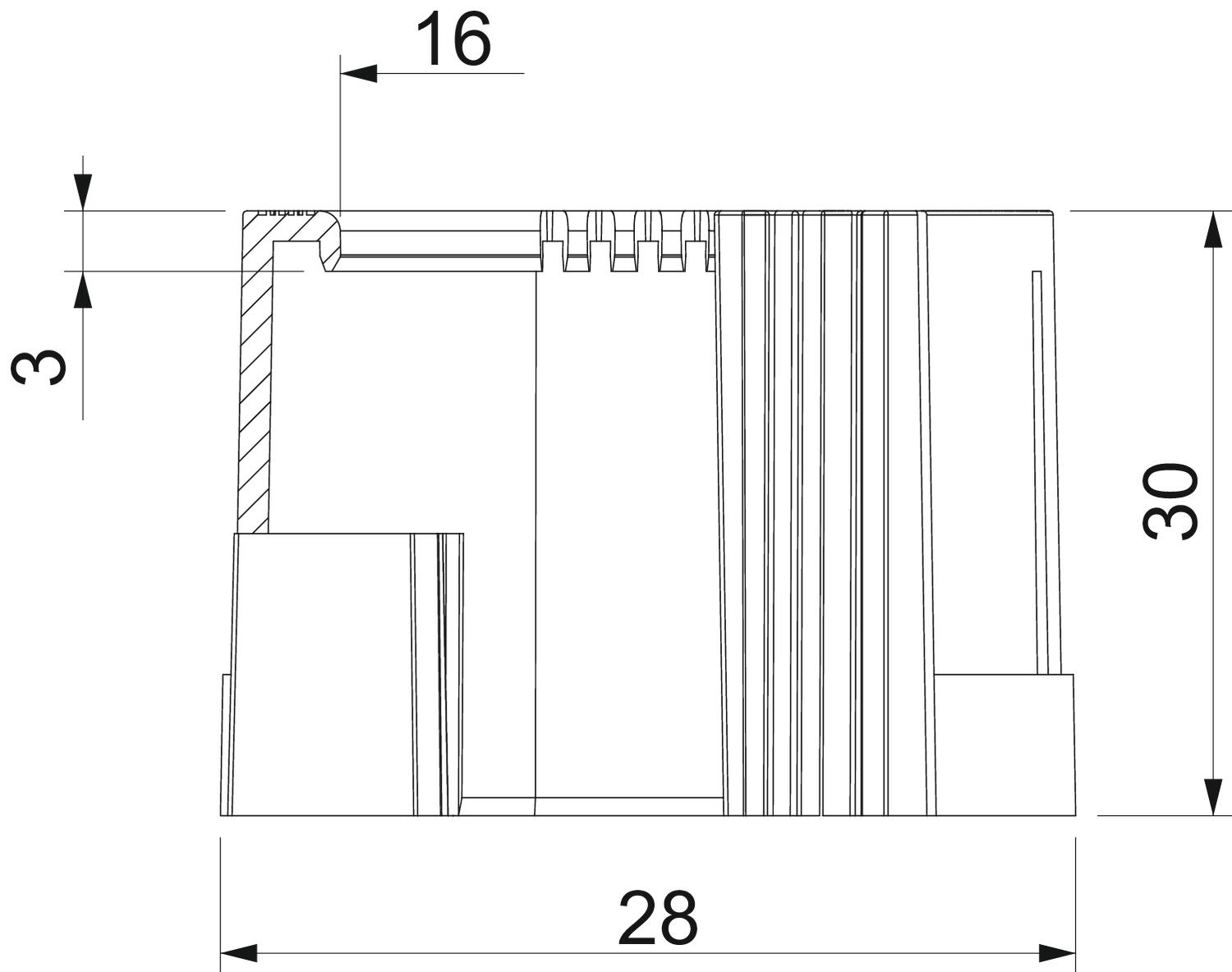

Dimension D1 28 mm Dimension D2 16 mm Dimension L1 30 mm Dimension L2 3 mm - All types
- Downloads
-
Data sheet 129 TB PG16 / 2044516 , 0.29MB , pdfREACH Declaration of conformity 129 TB PG16 / 2044516 , 0.12MB , pdfRoHS Declaration of conformity 129 TB PG16 / 2044516 , 0.12MB , pdf
