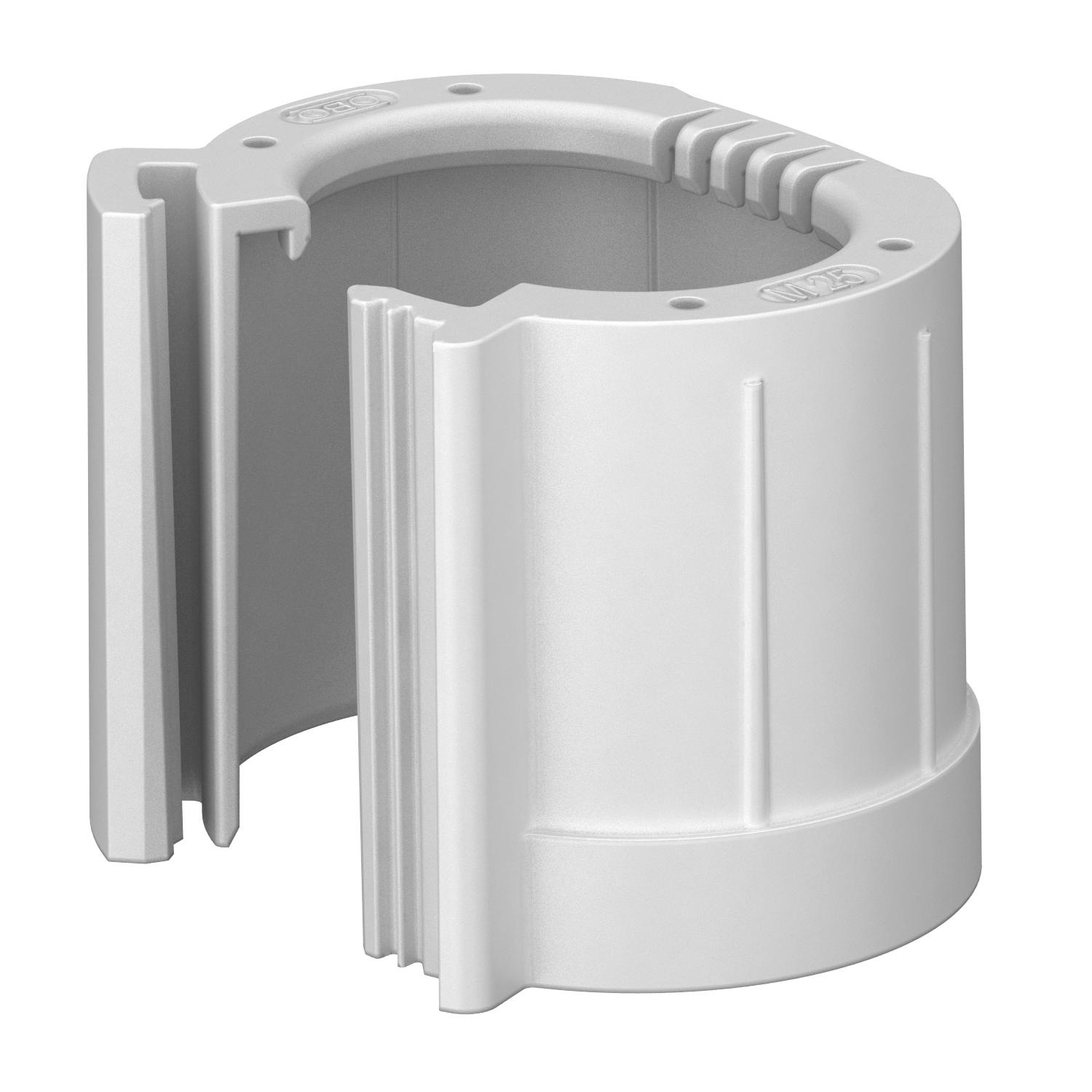

Pipe end cap, splittable, metric, light grey
Item no. 2047890 | EAN 4012196332311
- Product description
-
Product descriptionSeparable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

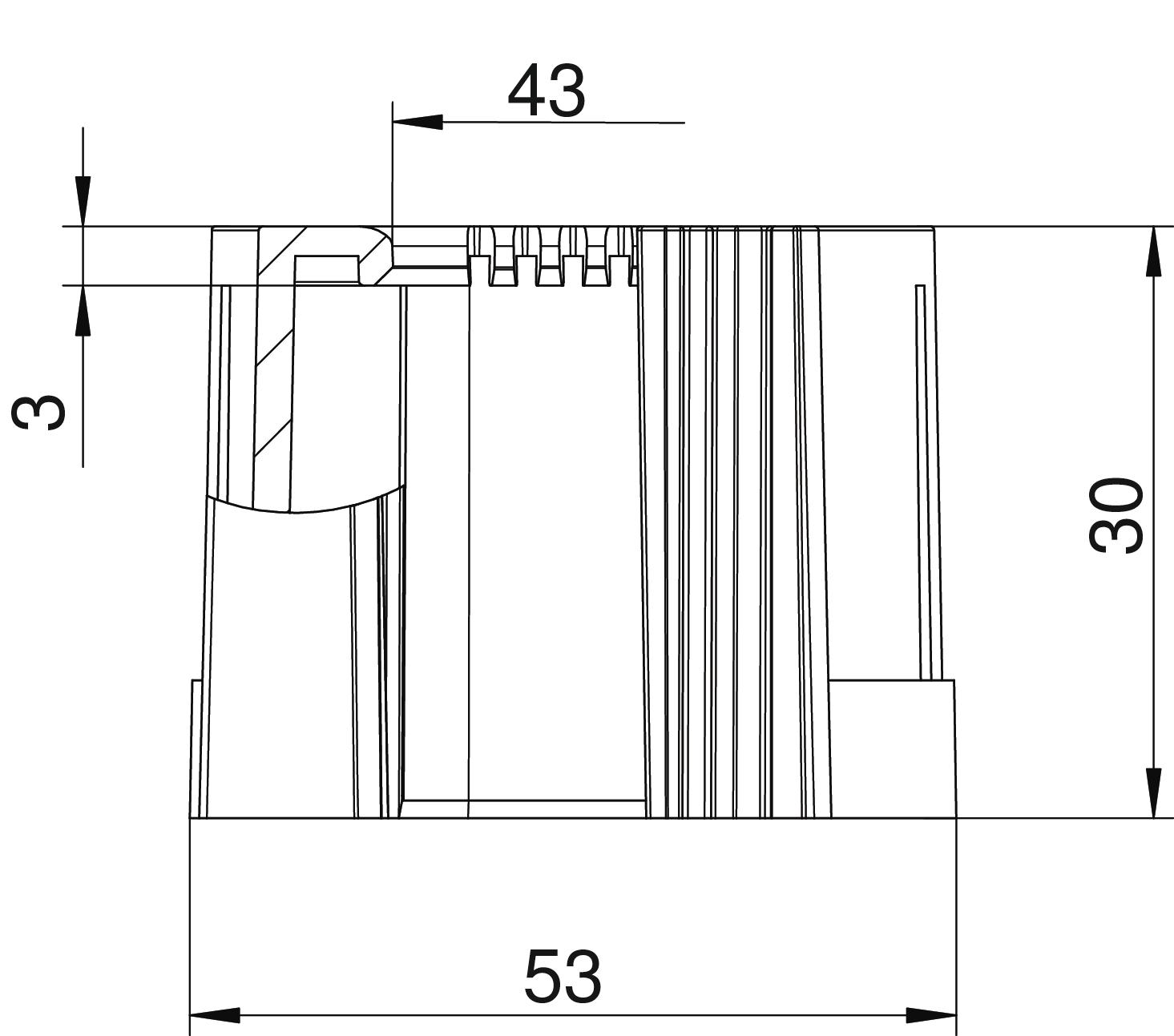

Brushed surface no Colour Light grey; RAL 7035 Dimension M50 Dimension D1 53 mm Dimension D2 43 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 50 mm Halogen-free yes Material Polyethylene Polished surface no Size M50 Version for Connector - All types
- Downloads
-
Data sheet 129 TB M50 / 2047890 , 0.20MB , pdfEU declaration of conformity 129 TB M50 / 2047890 , 0.05MB , pdfREACH Declaration of conformity 129 TB M50 / 2047890 , 0.12MB , pdfRoHS Declaration of conformity 129 TB M50 / 2047890 , 0.12MB , pdf
