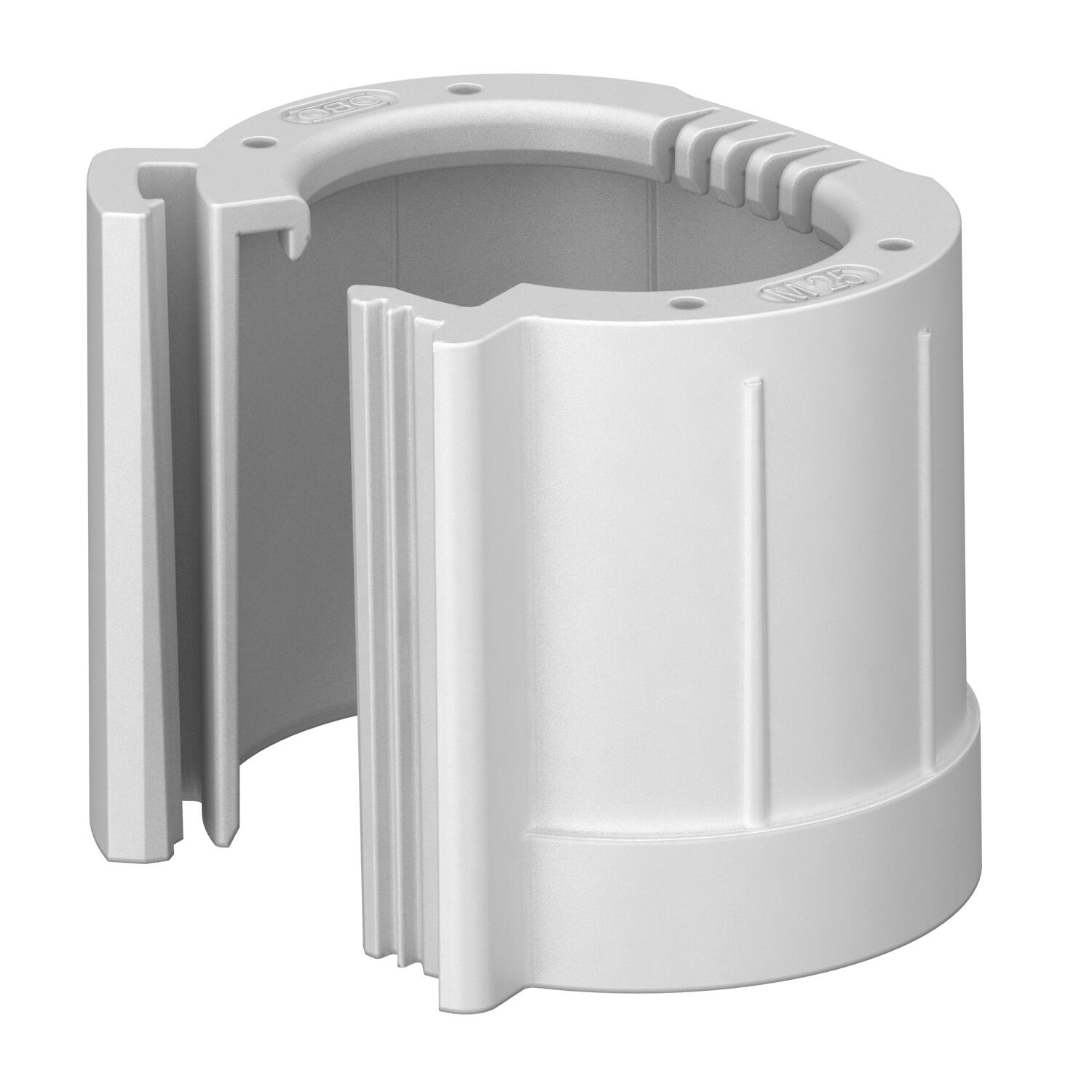

Pipe end cap, splittable, metric, light grey
Item no. 2047855 | EAN 4012196332274
- Product description
-
Product descriptionSeparable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

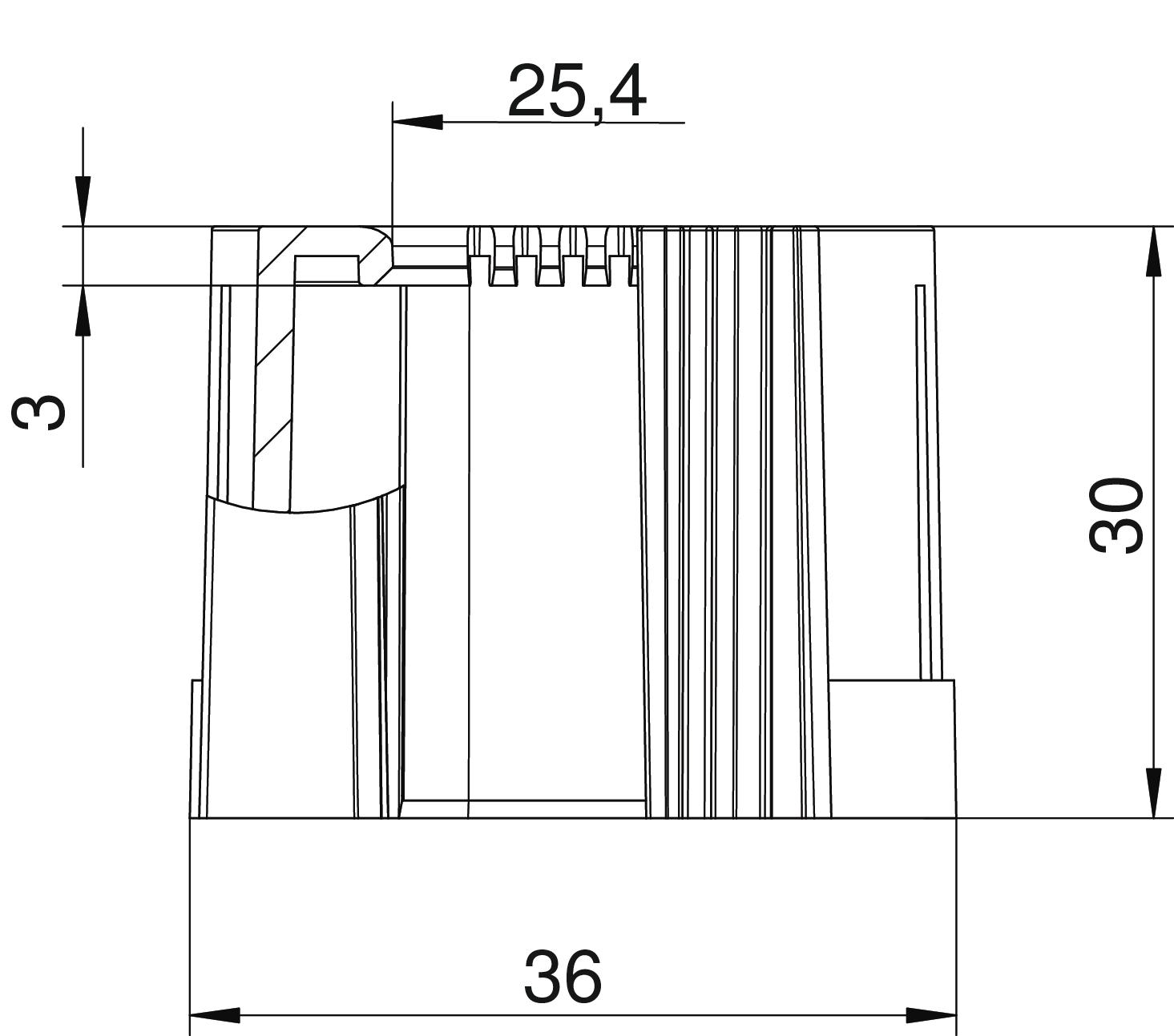

Brushed surface no Colour Light grey; RAL 7035 Dimension M32 Dimension D1 36 mm Dimension D2 25,4 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 32 mm Halogen-free yes Material Polyethylene Polished surface no Size M32 Version for Connector - All types
- Downloads
-
Data sheet 129 TB M32 / 2047855 , 0.20MB , pdfEU declaration of conformity 129 TB M32 / 2047855 , 0.05MB , pdfREACH Declaration of conformity 129 TB M32 / 2047855 , 0.12MB , pdfRoHS Declaration of conformity 129 TB M32 / 2047855 , 0.12MB , pdf
