Pipe end cap, splittable, metric, light grey M20

Pipe end cap, splittable, metric, light grey

Item no. 2047831 | EAN 4012196332250

Item no. / Types

Size

Product description

Product description

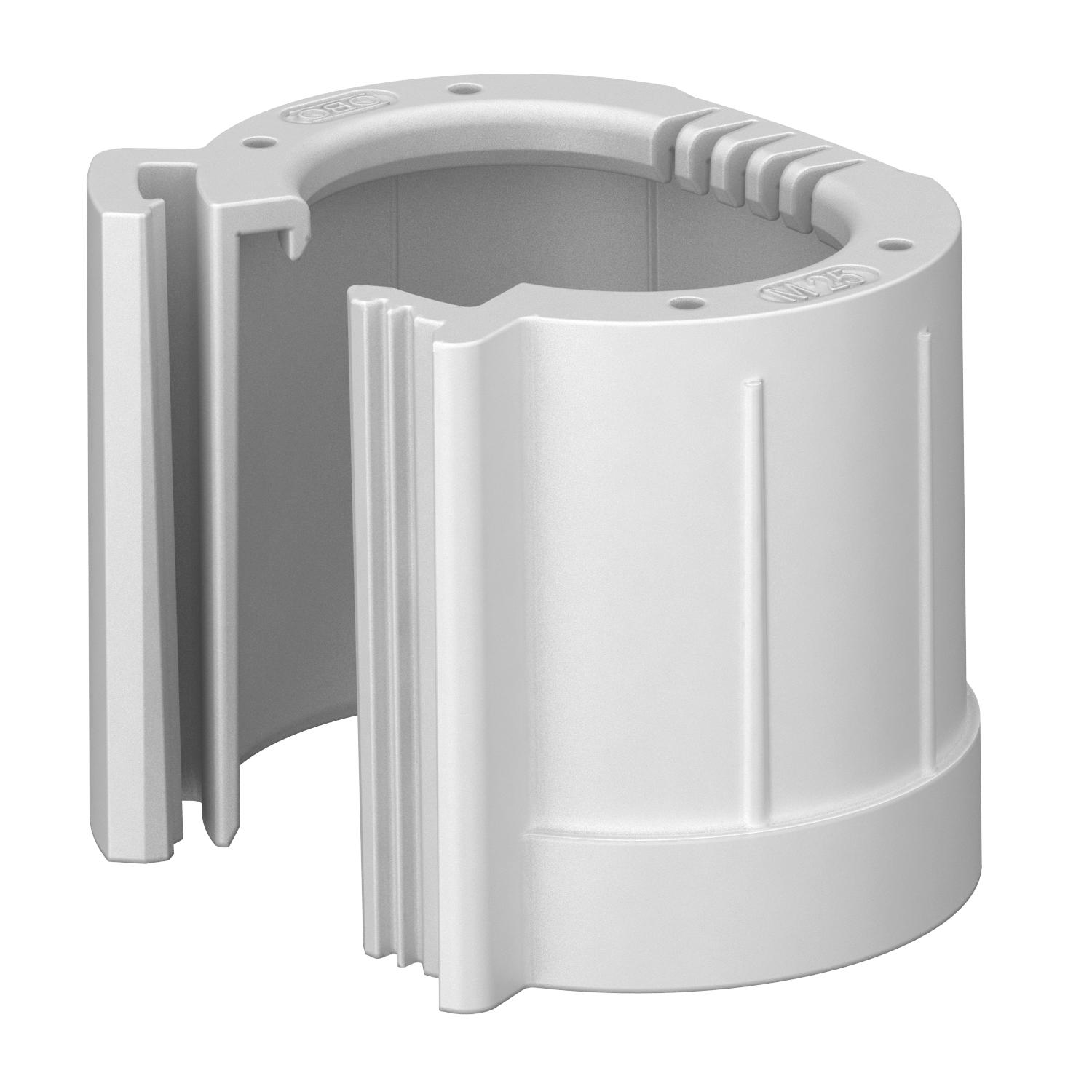

Separable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.

Technical data

Technical data

Brushed surface	no
Colour	Light grey; RAL 7035
Dimension	M20

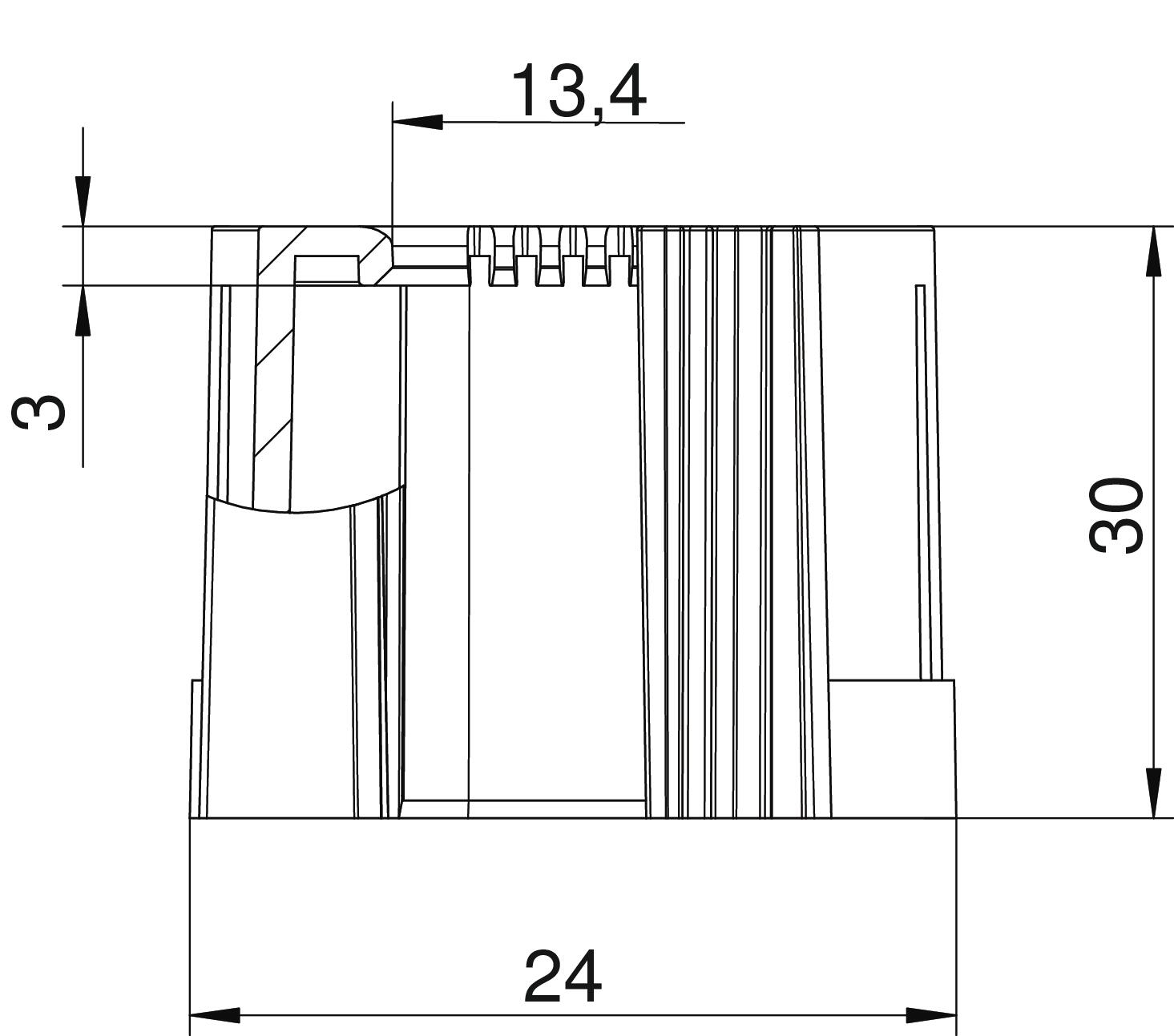

Dimension D1	24 mm
Dimension D2	13,4 mm
Dimension L1	30 mm
Dimension L2	3 mm

for pipe diameter	20 mm
Halogen-free	yes
Material	Polyethylene
Polished surface	no
Size	M20
Version for	Connector

All types

All types

Types	Size	Item no.	Quantity	SSU
129 TB M16	M16	2047812	piece	50 piece
129 TB M20	M20	2047831	piece	50 piece
129 TB M25	M25	2047839	piece	50 piece
129 TB M32	M32	2047855	piece	50 piece
129 TB M40	M40	2047863	piece	30 piece
129 TB M50	M50	2047890	piece	30 piece
129 TB M63	M63	2047898	piece	20 piece
