- Product description
-
Product description

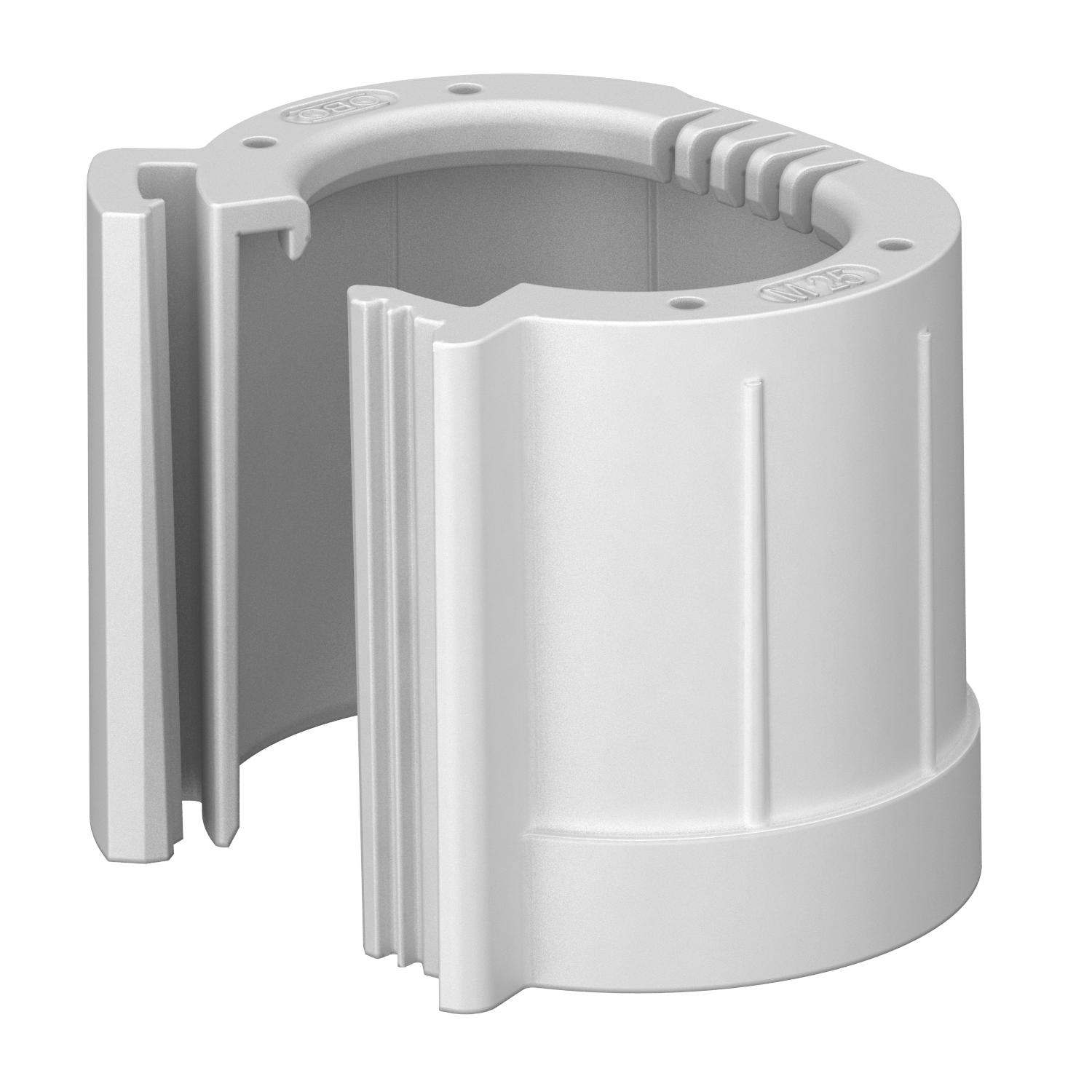

Separable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
- Technical data
-
Technical data

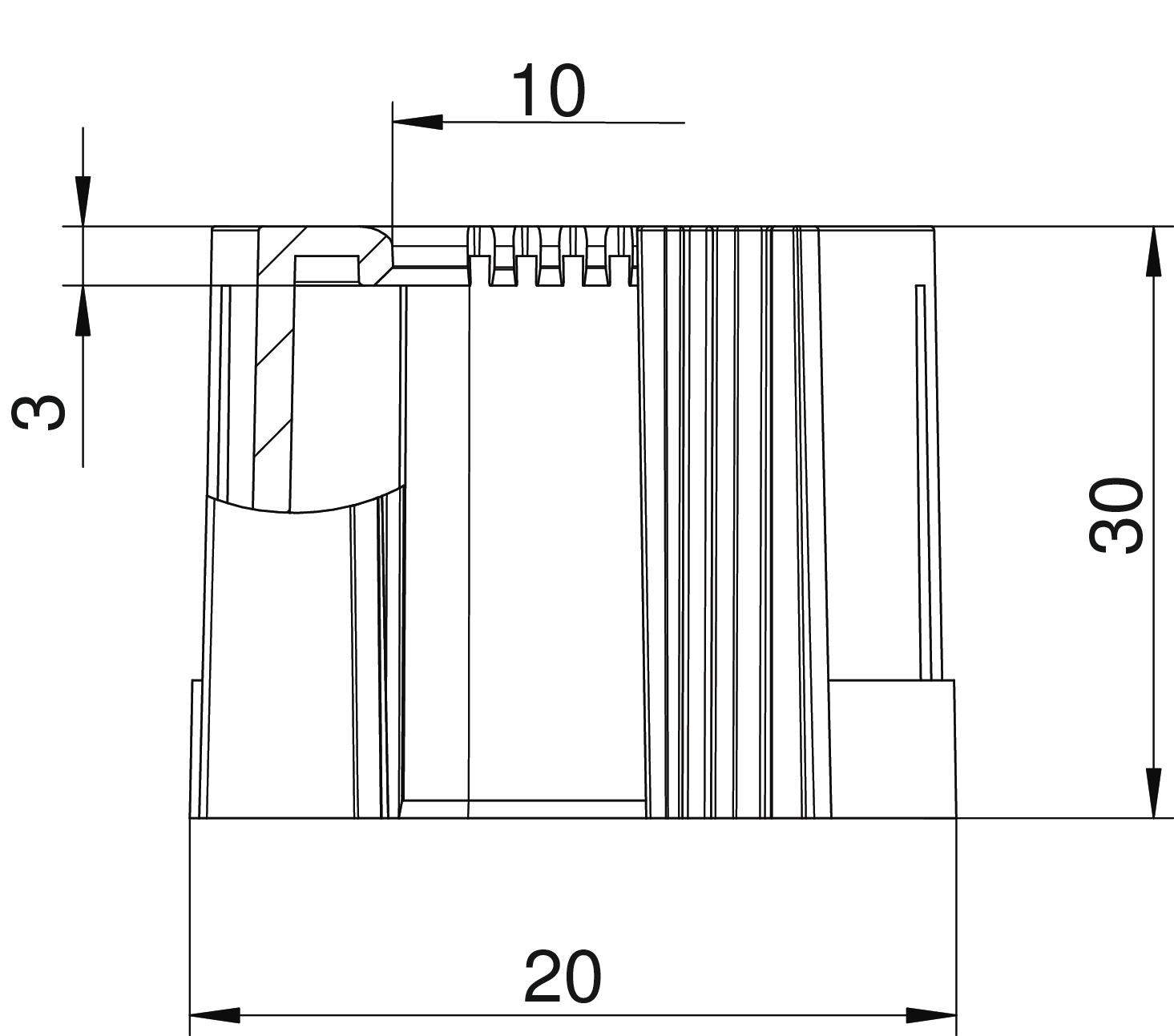

Brushed surface no Colour Light grey; RAL 7035 Dimension M16 Dimension D1 20 mm Dimension D2 10 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 16 mm Halogen-free yes Material Polyethylene Polished surface no Size M16 Version for Connector - All types
- Downloads
-
Data sheet 129 TB M16 / 2047812 , 0.20MB , pdfDeclaration of conformity 129 TB M16 / 2047812 , 0.05MB , pdfREACH Declaration of conformity 129 TB M16 / 2047812 , 0.12MB , pdfRoHS Declaration of conformity 129 TB M16 / 2047812 , 0.12MB , pdf
