- Product description
-
Product description

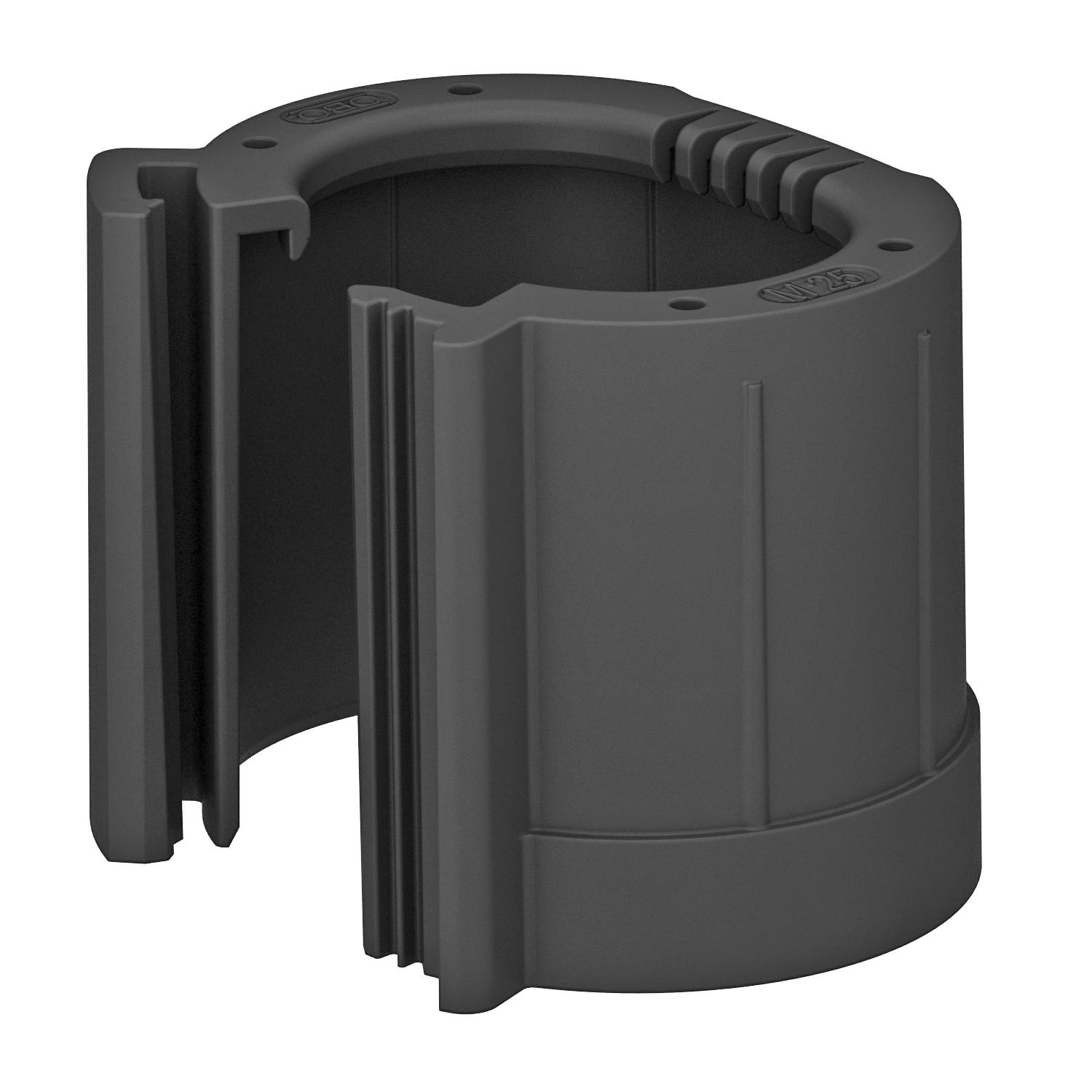

Separable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
- Technical data
-
Technical data

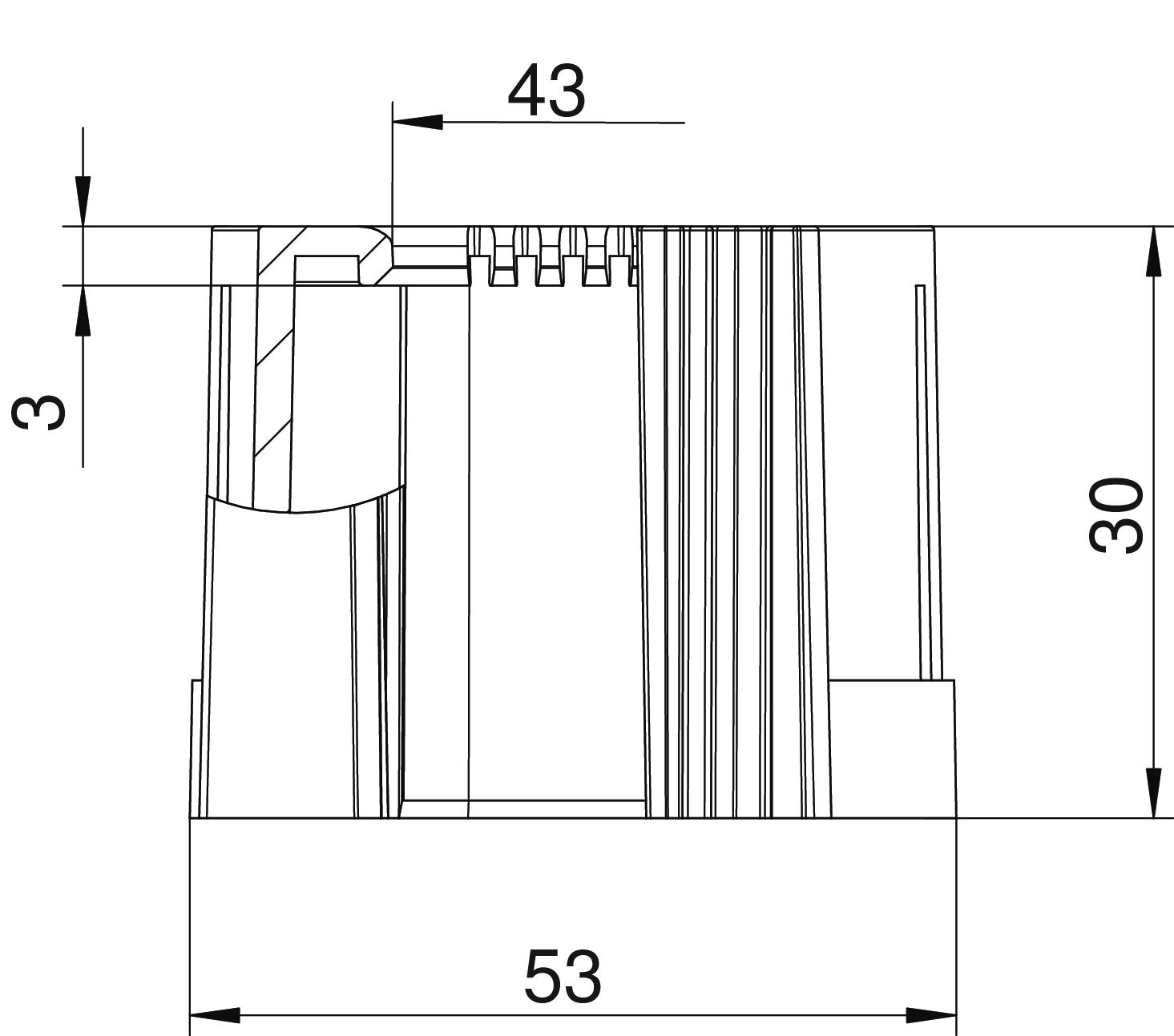

Brushed surface no Colour Black Dimension M50 Dimension D1 53 mm Dimension D2 43 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 50 mm Halogen-free yes Material Polyethylene Polished surface no Size M50 Version for Connector - All types
- Downloads
-
Data sheet 129 TB M50 SW / 2047987 , 0.22MB , pdfDeclaration of conformity 129 TB M50 SW / 2047987 , 0.05MB , pdfREACH Declaration of conformity 129 TB M50 SW / 2047987 , 0.12MB , pdfRoHS Declaration of conformity 129 TB M50 SW / 2047987 , 0.12MB , pdf
