Pipe end cap, splittable, metric, black

Item no. 2047971 | EAN 4012196332380

Product description

Product description

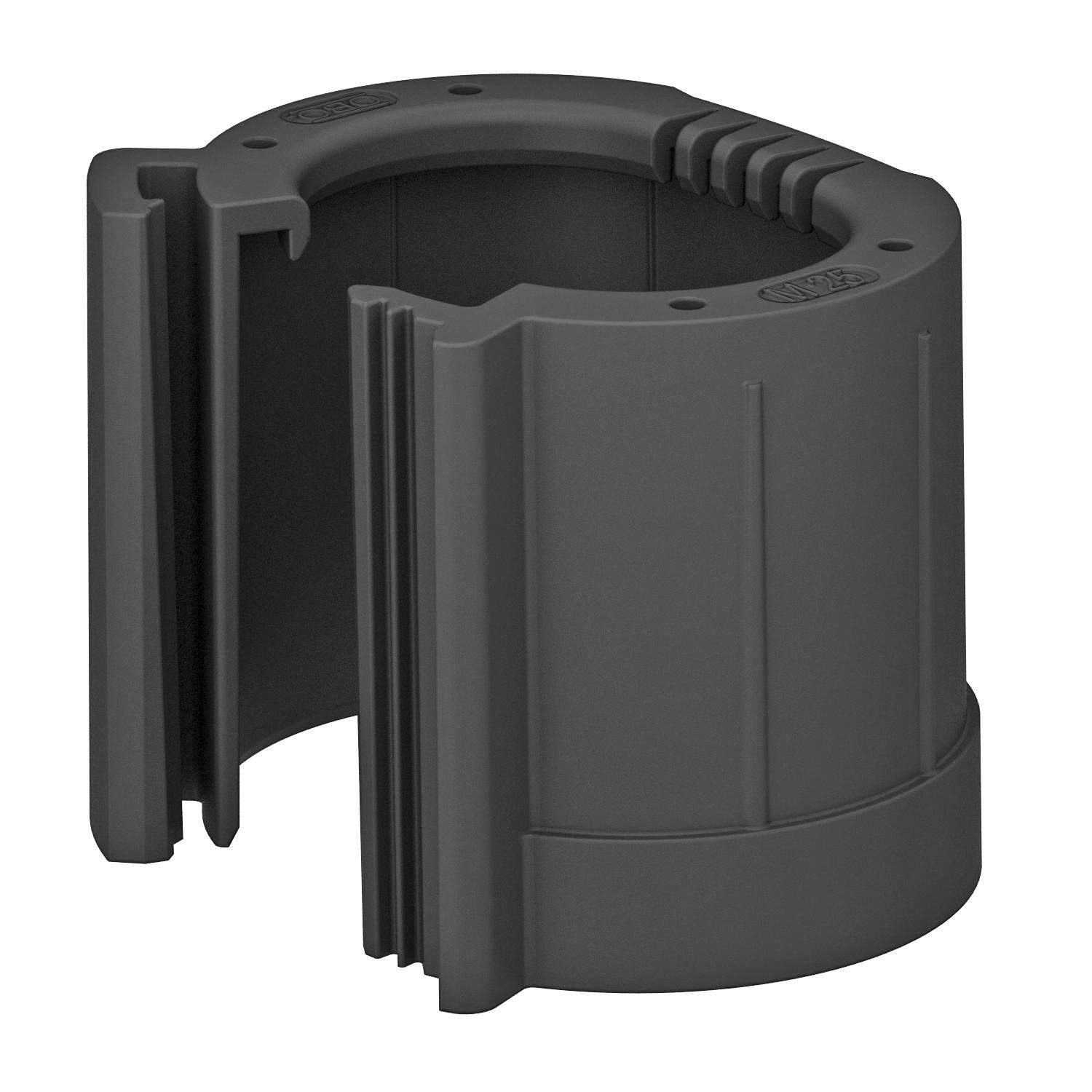

Separable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
  • Halogen-free; without chlorine, fluorine and bromine
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Brushed surface no
Colour Black

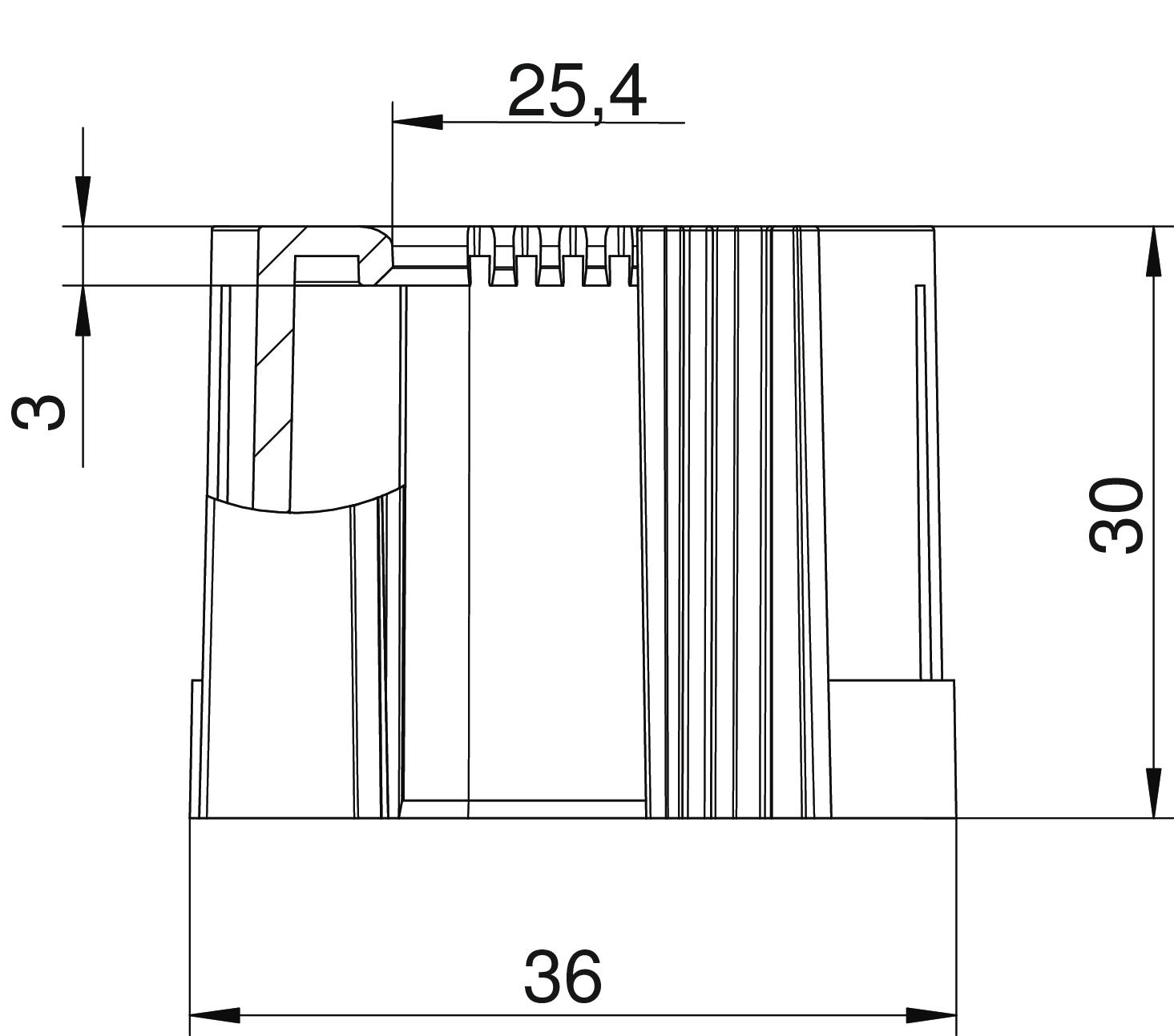

Dimension M32
Dimension D1 36 mm
Dimension D2 25,4 mm
Dimension L1 30 mm
Dimension L2 3 mm
for pipe diameter 32 mm
Halogen-free yes
Material Polyethylene
Polished surface no
Size M32
Version for Connector
All types

All types

Types Size Item no. Quantity SSU
129 TB M16 SW M16 2047936
50 piece
129 TB M20 SW M20 2047944
50 piece
129 TB M25 SW M25 2047952
50 piece
129 TB M32 SW M32 2047971
50 piece
129 TB M40 SW M40 2047979
30 piece
129 TB M50 SW M50 2047987
30 piece
129 TB M63 SW M63 2047995
20 piece
Downloads

Download

129 TB M32 SW / 2047971
Download
