Pipe end cap, splittable, metric, black M20

Pipe end cap, splittable, metric, black

Item no. 2047944 | EAN 4012196332342

Item no. / Types

Size

Product description

Product description

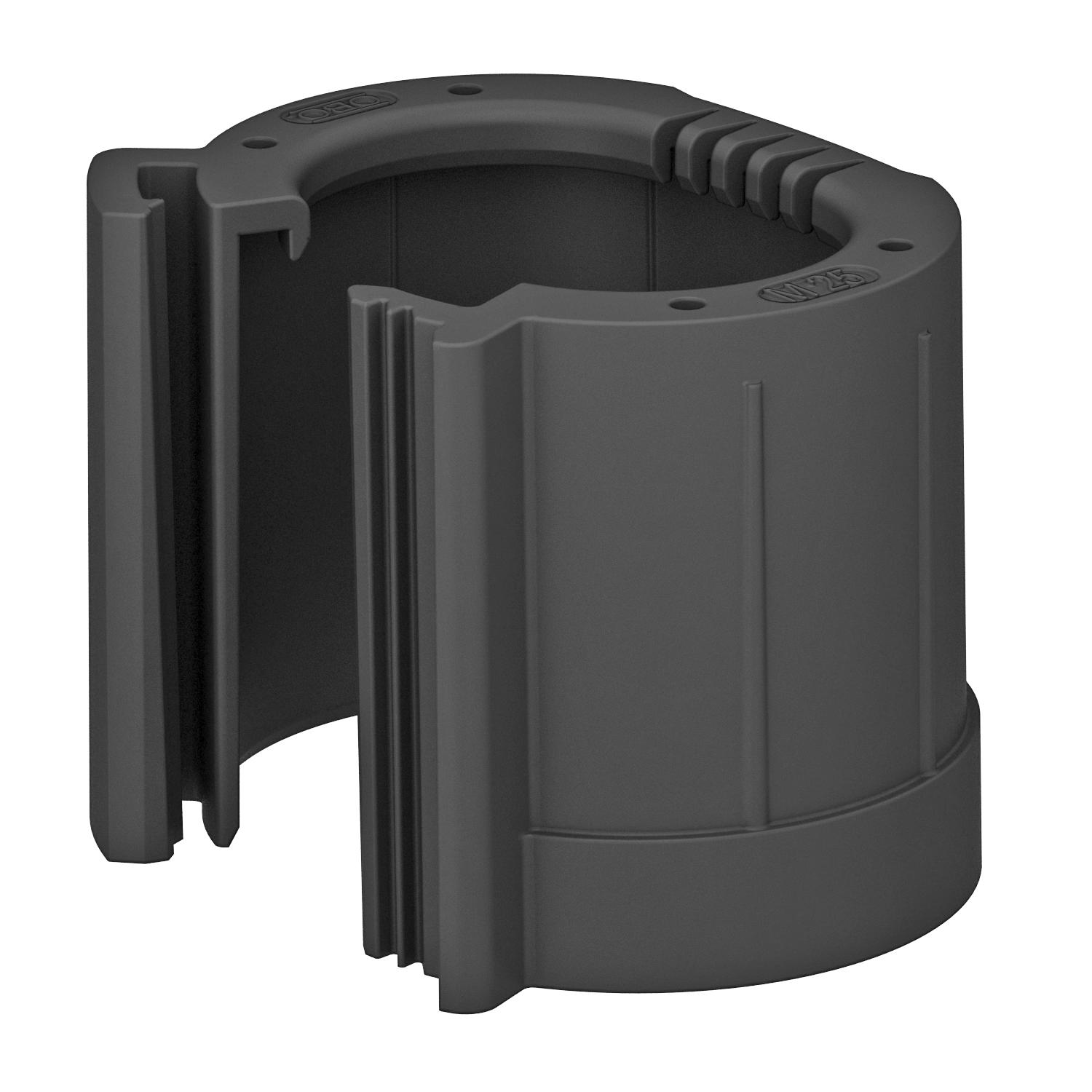

Separable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.

Technical data

Technical data

Brushed surface	no
Colour	Black
Dimension	M20

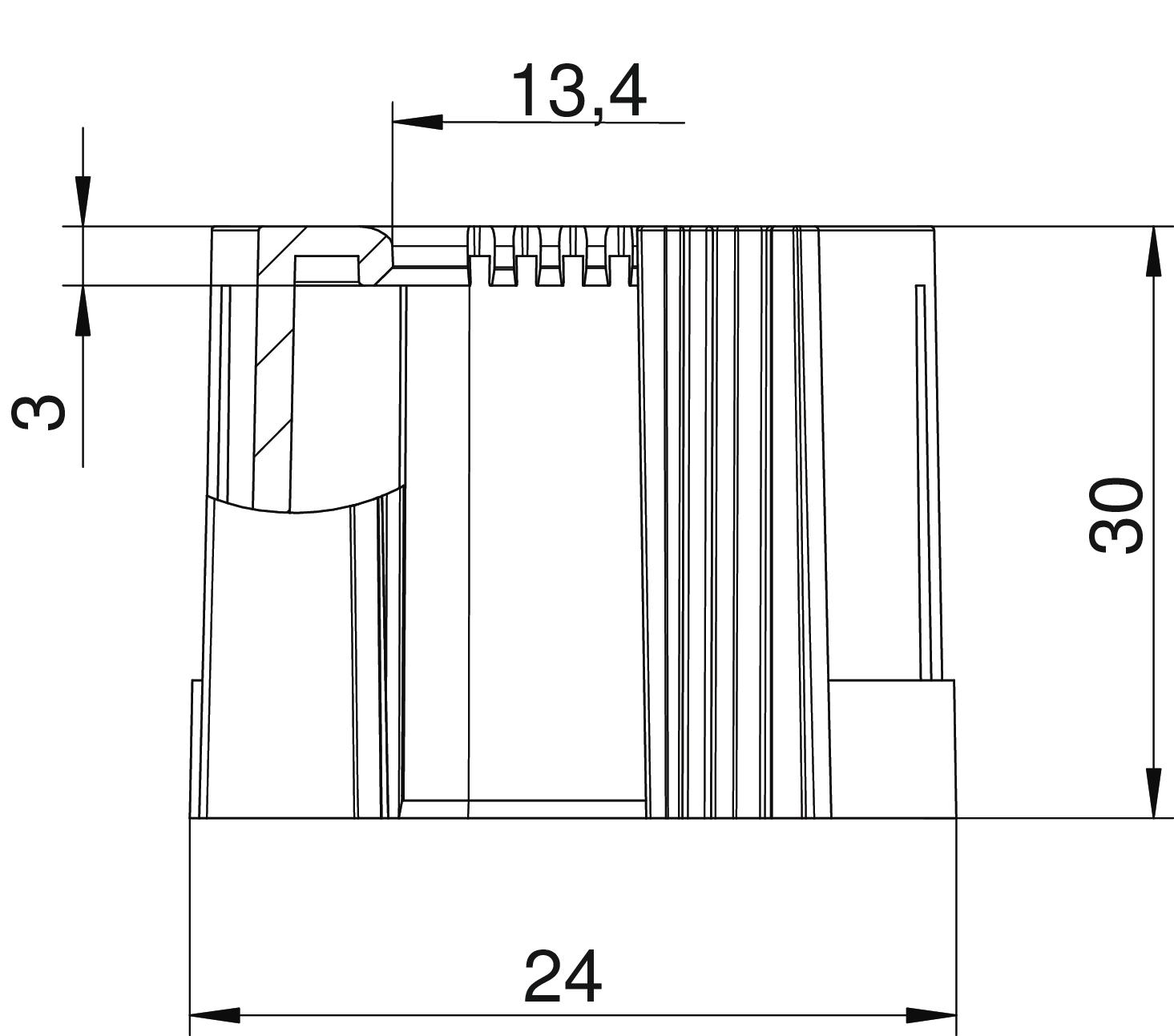

Dimension D1	24 mm
Dimension D2	13,4 mm
Dimension L1	30 mm
Dimension L2	3 mm

for pipe diameter	20 mm
Halogen-free	yes
Material	Polyethylene
Polished surface	no
Size	M20
Version for	Connector

All types

All types

Types	Size	Item no.	Quantity	SSU
129 TB M16 SW	M16	2047936	piece	50 piece
129 TB M20 SW	M20	2047944	piece	50 piece
129 TB M25 SW	M25	2047952	piece	50 piece
129 TB M32 SW	M32	2047971	piece	50 piece
129 TB M40 SW	M40	2047979	piece	30 piece
129 TB M50 SW	M50	2047987	piece	30 piece
129 TB M63 SW	M63	2047995	piece	20 piece
