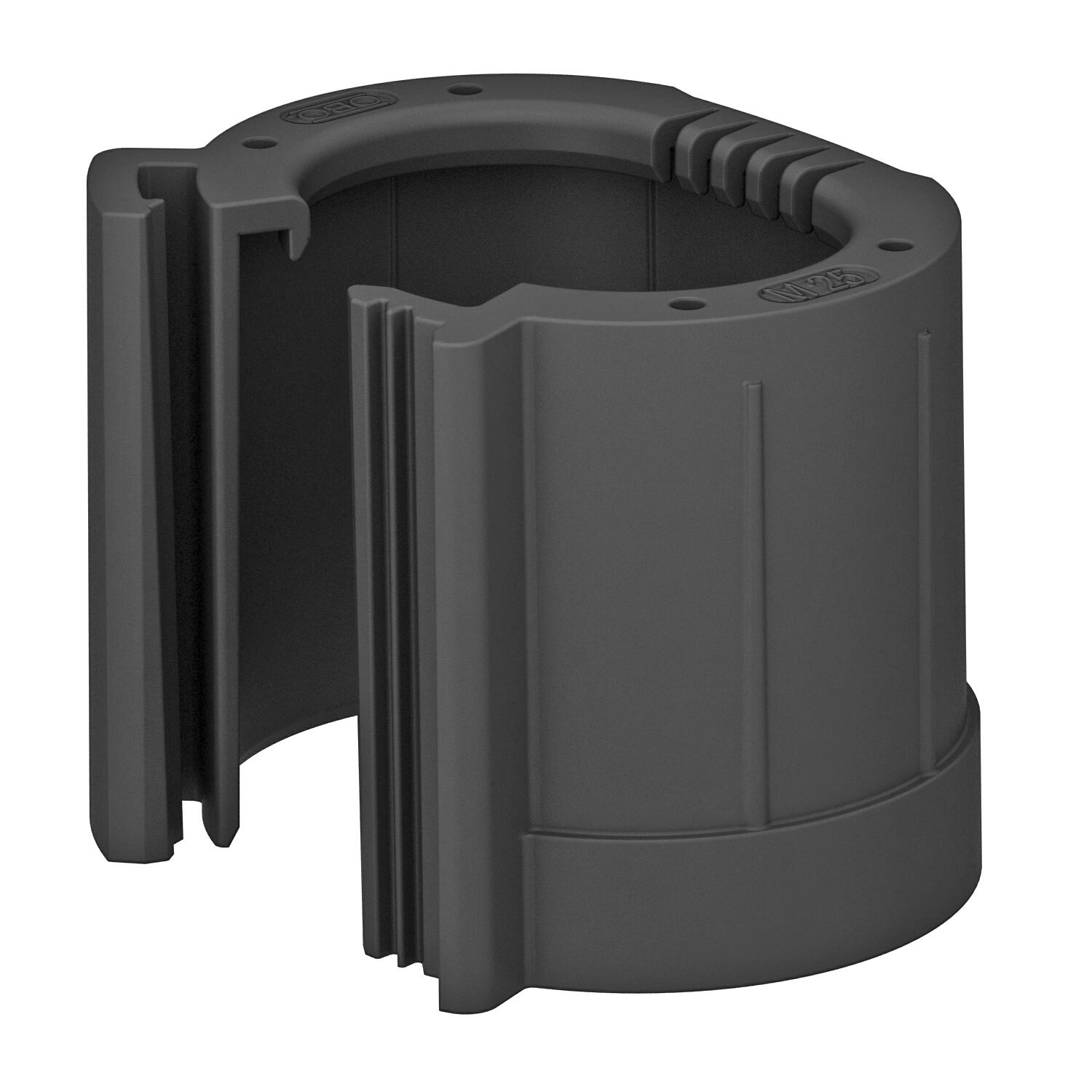

Pipe end cap, splittable, black
Item no. 2047936 | EAN 4012196332335
- Product description
-
Product descriptionSeparable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

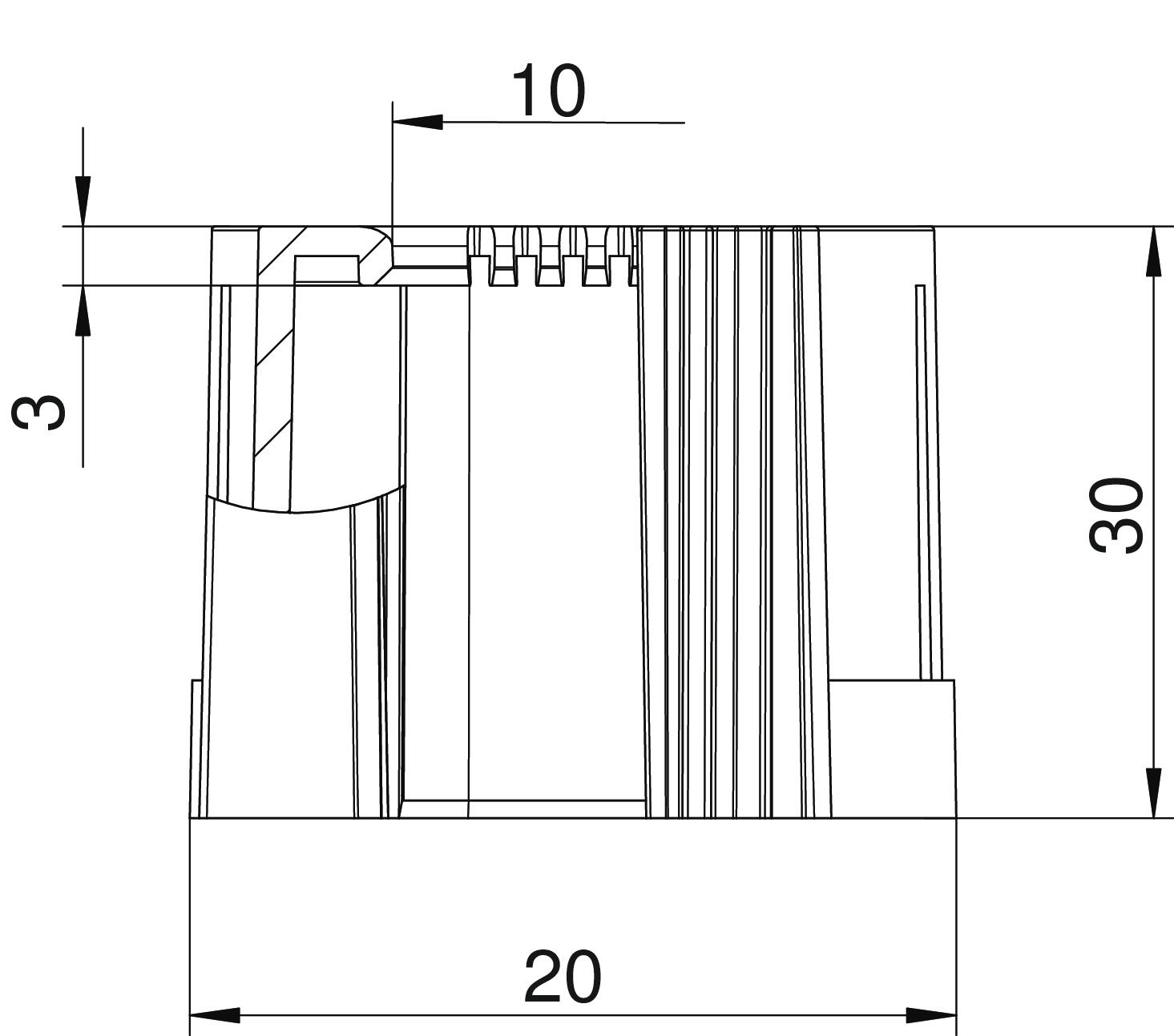

Brushed surface no Colour Black Dimension M16 Dimension D1 20 mm Dimension D2 10 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 16 mm Halogen-free yes Material Polyethylene Polished surface no Size M16 Version for Connector - All types
- Downloads
-
Data sheet 129 TB M16 SW / 2047936 , 0.24MB , pdfEU declaration of conformity 129 TB M16 SW / 2047936 , 0.05MB , pdfREACH Declaration of conformity 129 TB M16 SW / 2047936 , 0.12MB , pdfRoHS Declaration of conformity 129 TB M16 SW / 2047936 , 0.12MB , pdf
