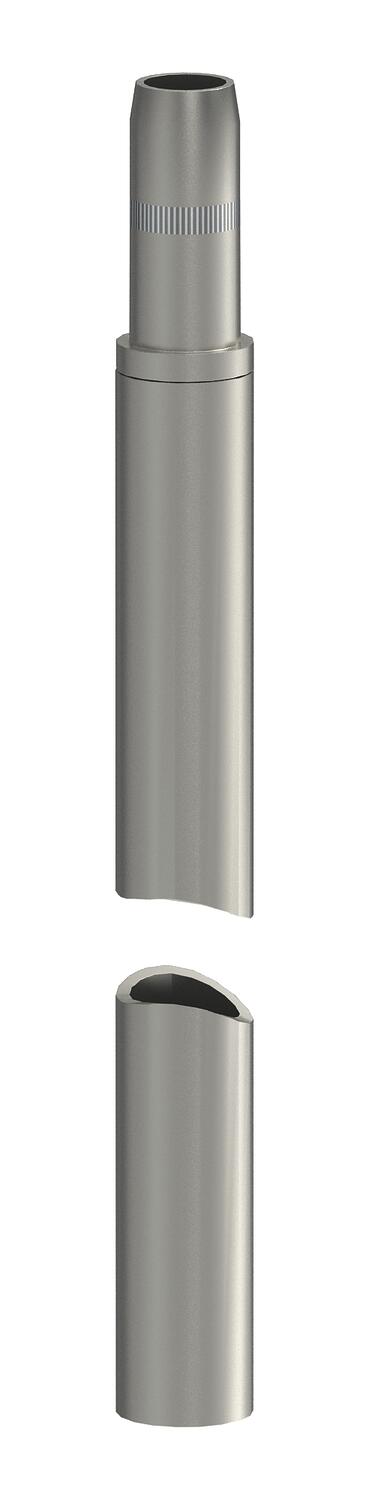

Pipe earth rod LE, A4

Item no. 5000335 | EAN 4012195708834

Item no. / Types	5000335 / LE ERDER V4A

Length	1500 mm

External diameter	25 mm

Product description

Product description

• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.

Technical data

Technical data

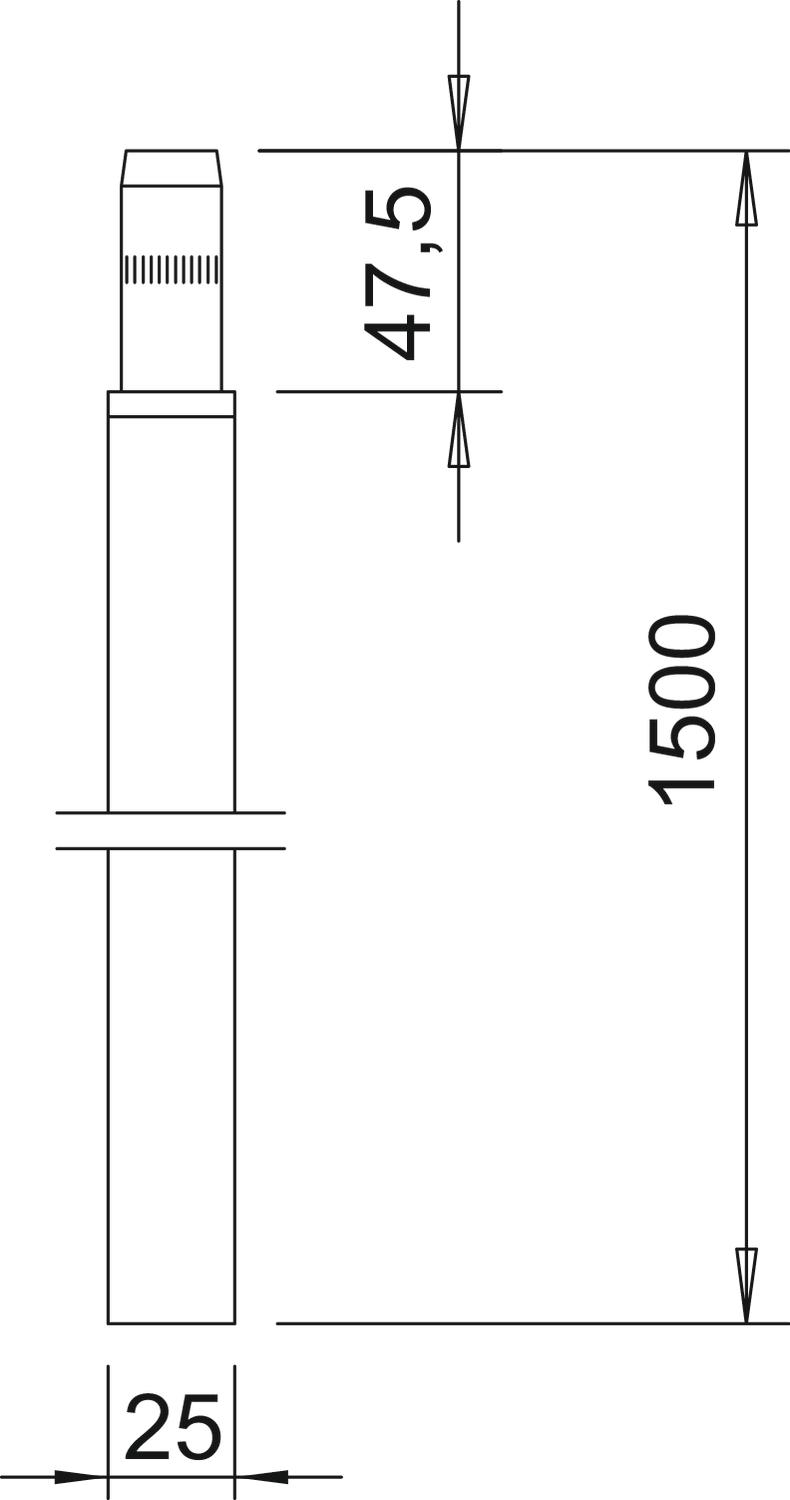

Dimension	1,5m
Dimension D	25 mm
Dimension L	1500 mm
External diameter	25 mm

Length	1500 mm
Material	Stainless steel
Profile type	Round D=25 mm

All types

All types

Types	Length	External diameter	Item no.	Quantity	SSU
LE ERDER V4A	1500 mm	25 mm	5000335	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Driving spike for pipe earth rod LE	LE SPITZE	3041409	piece	5 piece
Driving head for LightEarth earth rod	LE KOPF	3042308	piece	1 piece

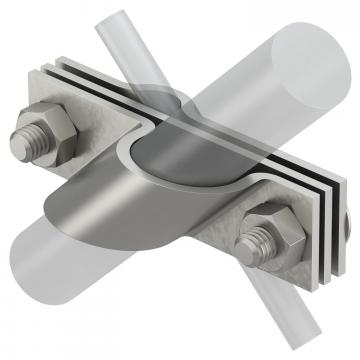

Connection clip for earth rod, universal A4	2760 20 V4A	5001633	piece	5 piece
