Perforated steel strap 9 | 12 x 0,7 | 5.1 |
morepic-1 morepic-2

Perforated steel strap

Item no. 1475912 | EAN 4012197312565

Product description

Product description

Perforated mounting strap in wave form, for the mounting of pipes on walls and ceiling, for example. In uncoiling box.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

Dimension 12 x 0,7
Dimension 12x0,7mm
Hole diameter 5,1 mm
Material Steel
per rolls 10
Perforation Round/rectangular
Size I
Surface Strip galvanized
Version for Perforated

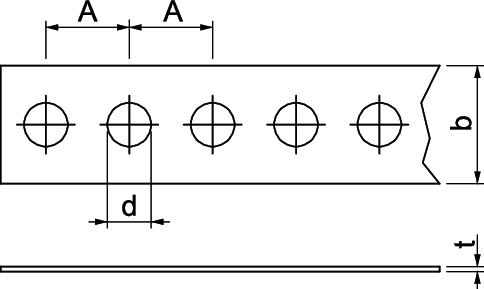

Dimensions

Dimension A 9 mm
Dimension b 12 mm
Dimension d 5,1 mm
Dimension t 0,7 mm
All types

All types

Types Dimension A Dimension Hole diameter Item no. Quantity SSU
5055 I12 FS 14.4 mm 12 x 1 5.2 mm 1470124
1 piece
5055 III26 FS 25 mm 26 x 1,2 8.5 mm 1470264
1 piece
MZ029 LI12 FS 9 mm 12 x 0,7 5.1 mm 1475912
1 piece
