Partition TWP
Item no. 6288264 | EAN 4012195147510
- Product description
-

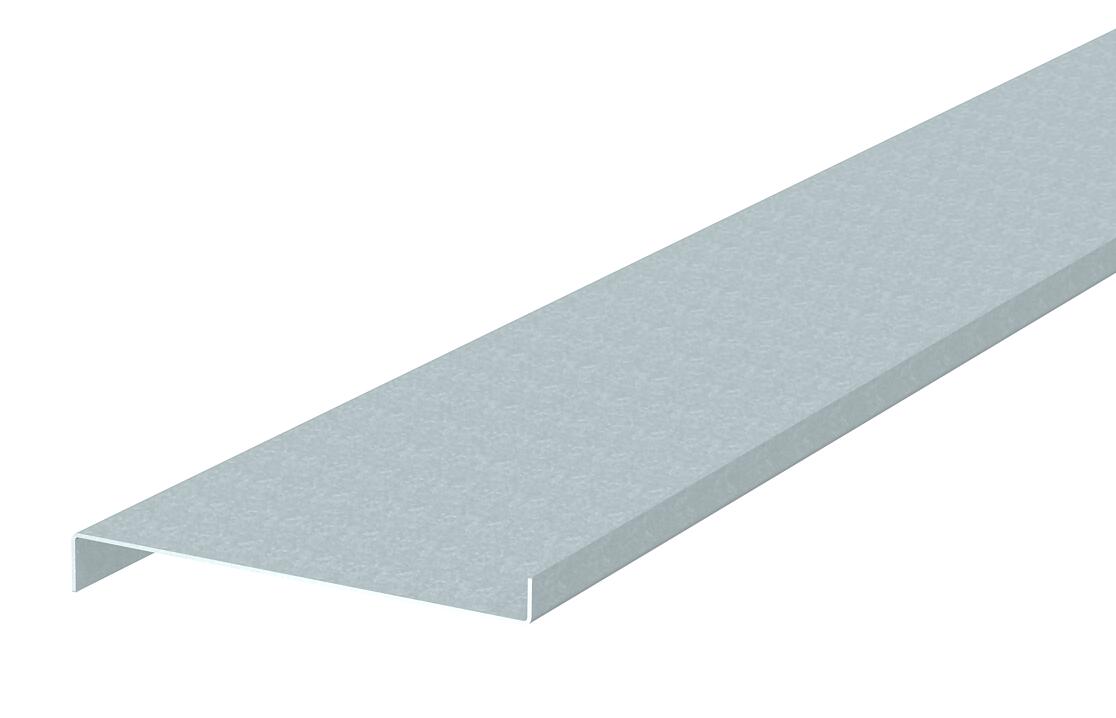

Product descriptionPartition for desk trunking to divide the trunking for different voltage levels.
-
- Technical data
-
Technical data

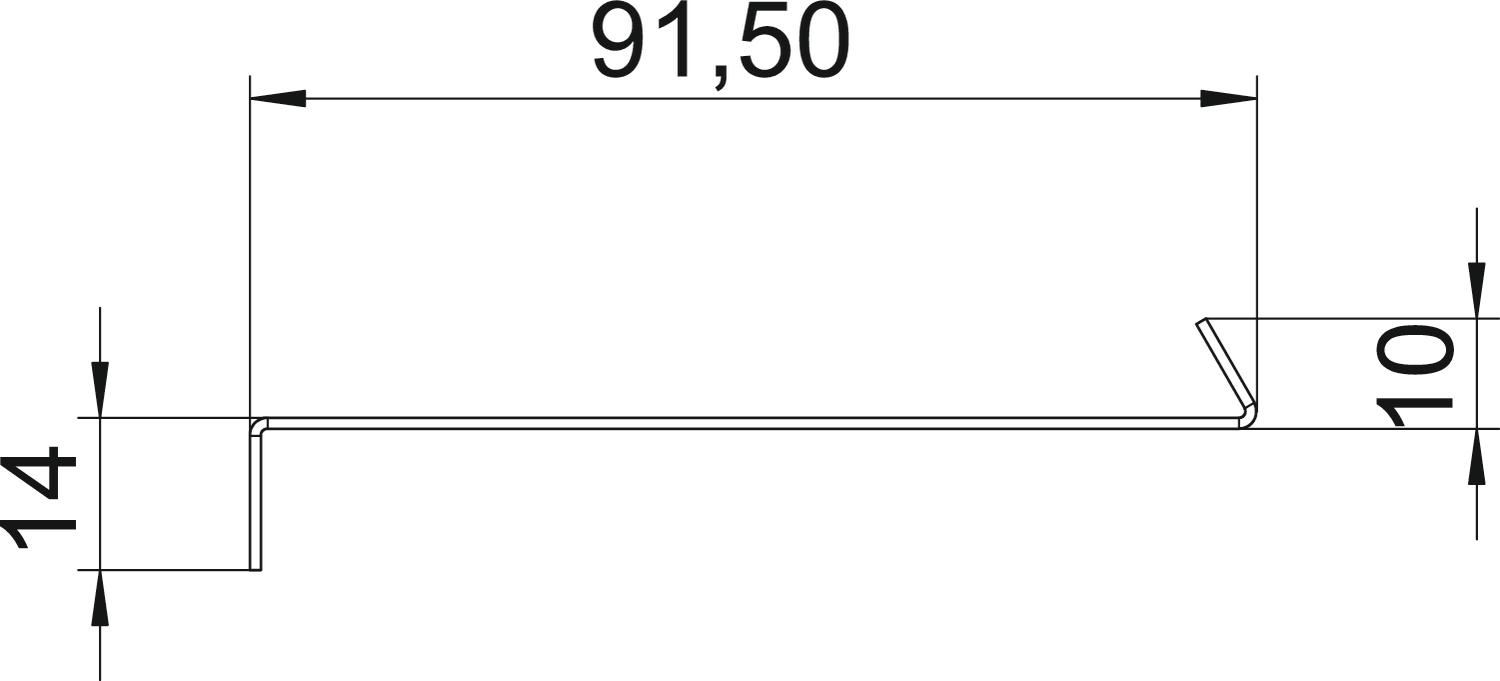

Dimension 14x92x2000 Fastening type Plug-in Halogen-free yes Height 92 mm Length 2000 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Suitable for duct depth 133 Surface Strip galvanized Version for Single Width 14 mm - All types
- Downloads
-
Data sheet TWP / 6288264 , 0.20MB , pdfEU declaration of conformity TWP / 6288264 , 0.13MB , pdfUK Declaration of Conformity TWP / 6288264 , 0.14MB , pdfREACH Declaration of conformity TWP / 6288264 , 0.12MB , pdfRoHS Declaration of conformity TWP / 6288264 , 0.12MB , pdfNo invitation to tender text is available for this product.
