Partition LKM TWS75

Item no. 6249880 | EAN 4012195762898

6249880 / LKM TWS75
2000 mm
Product description

Product description

Partition to divide the LKM cable routing trunking, 80 mm trunking height, for different voltage levels.


The loop perforation in the base transfers the equipotential bonding to the partition.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Dimension 75x2000mm

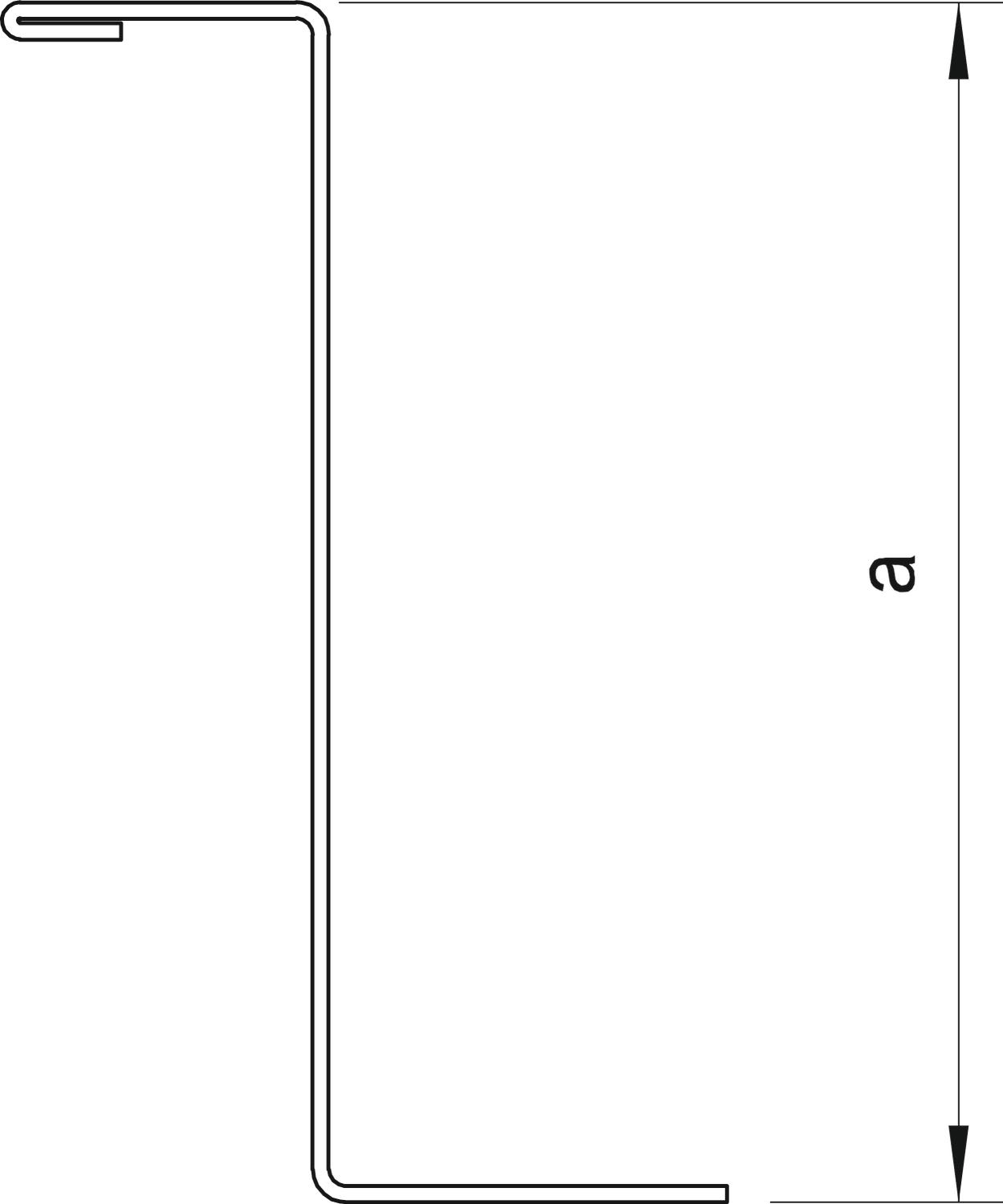

Dimension a 60 mm
Fastening type Plug-in
Halogen-free yes
Height 60 mm
Length 2000 mm
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Surface Strip galvanized
Trunking depth 80 mm
Version for Single
Width 34 mm
All types

All types

Types Length Item no. Quantity SSU
LKM TWS75 2000 mm 6249880
2 m
