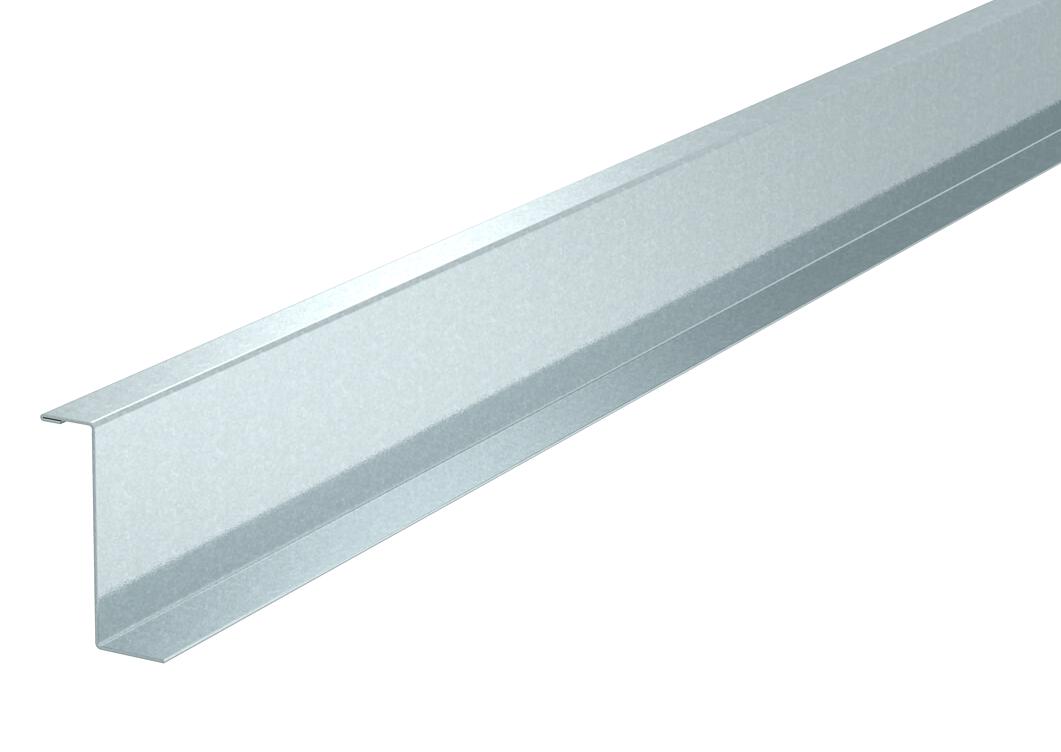

Partition LKM TWS55
Item no. 6249876 | EAN 4012196644896
- Product description
-
Product description
Partition to divide the LKM cable routing trunking, 60 mm trunking height, for different voltage levels.
The loop perforation in the base transfers the equipotential bonding to the partition.
-
- Technical data
-
Technical data
Antibacterial treatment no Dimension 55x2000mm Dimension a 55 mm Fastening type Plug-in Halogen-free yes Height 55 mm Length 2000 mm Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Surface Strip galvanized Trunking depth 60 mm Version for Single Width 34 mm - All types
- Downloads
-
Data sheet LKM TWS55 / 6249876 , 0.19MB , pdfDeclaration of conformity LKM TWS55 / 6249876 , 0.11MB , pdfUK Declaration of Conformity LKM TWS55 / 6249876 , 0.14MB , pdfREACH Declaration of conformity LKM TWS55 / 6249876 , 0.27MB , pdfRoHS Declaration of conformity LKM TWS55 / 6249876 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
