Partition LKM/TWS45
Item no. 6249871 | EAN 4012196678006
- Product description
-

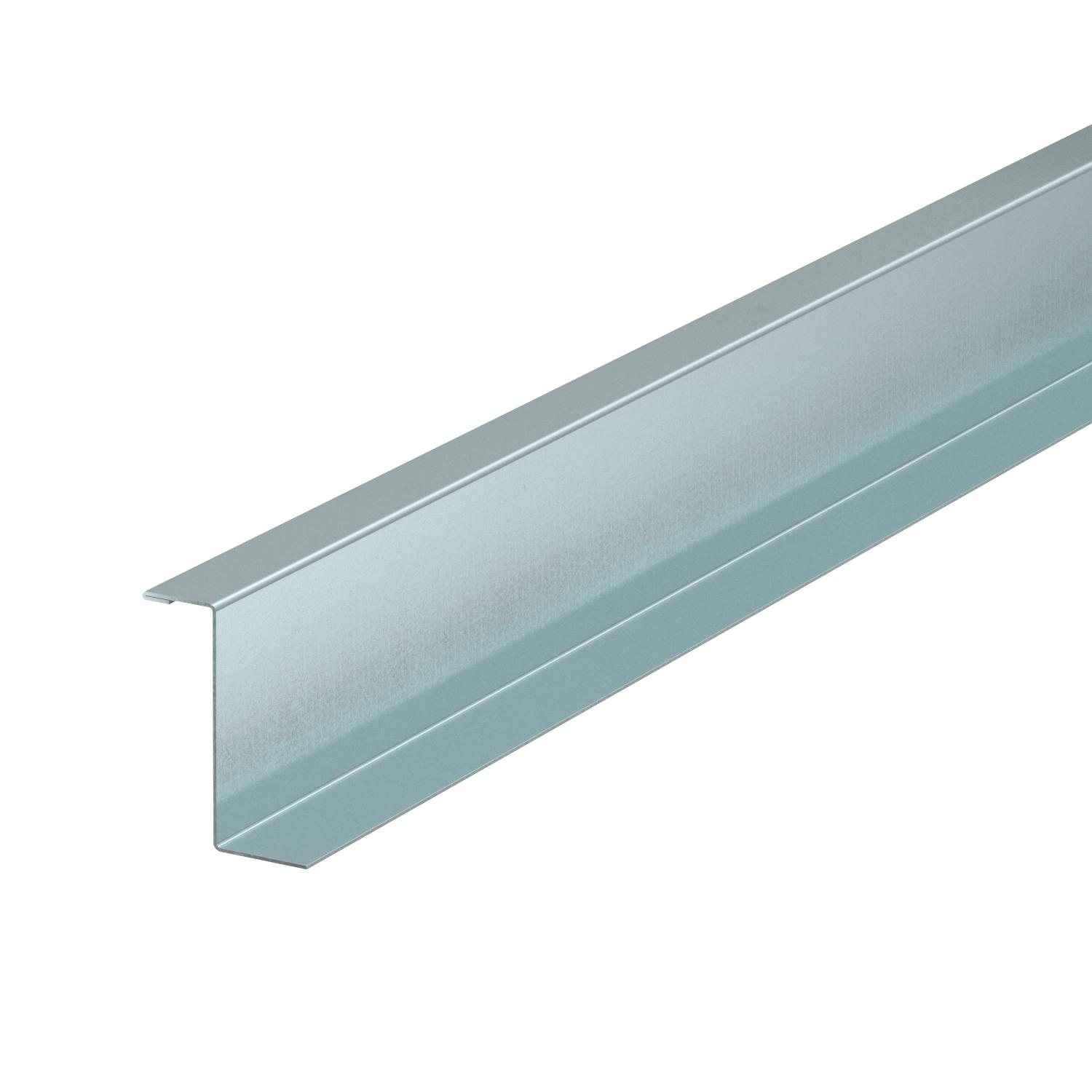

Product descriptionPartition to divide the LKM cable trunking, 60 mm trunking height, for different voltage levels.
The loop perforation in the base transfers the equipotential bonding to the partition.
-
- Technical data
-
Technical data
Antibacterial treatment no Dimension 45x2000mm Dimension a 45 mm Fastening type Plug-in Halogen-free yes Height 45 mm Length 2000 mm Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Surface Strip galvanized Trunking depth 60 mm Version for Single Width 34 mm - All types
- Downloads
-
Data sheet LKM TWS45 / 6249871 , 0.18MB , pdfEU declaration of conformity LKM TWS45 / 6249871 , 0.13MB , pdfUK Declaration of Conformity LKM TWS45 / 6249871 , 0.14MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
