- Product description
-

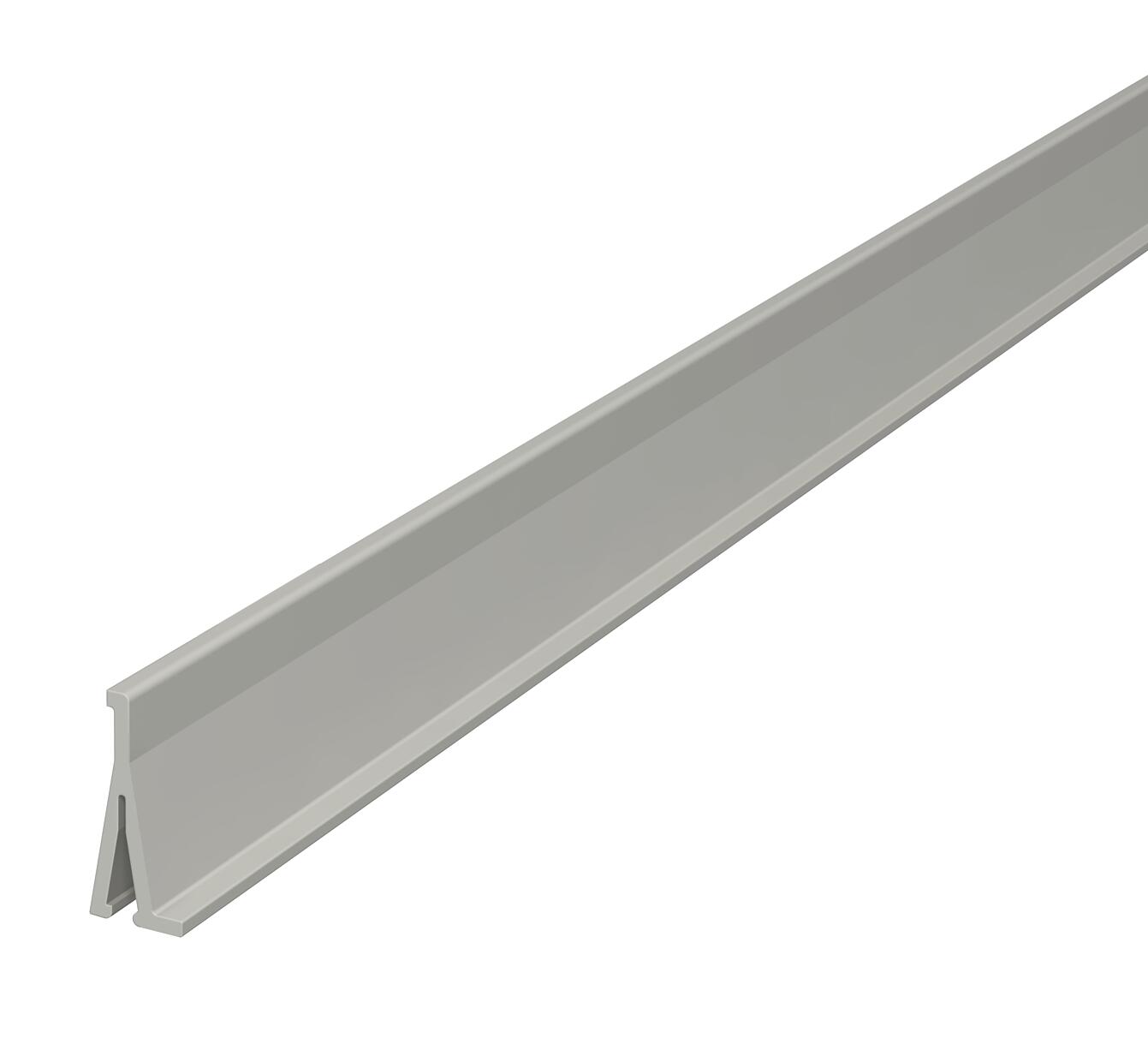

Product descriptionPartition to divide the WDKH trunking of 40 mm trunking height for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
- Technical data
-
Technical data

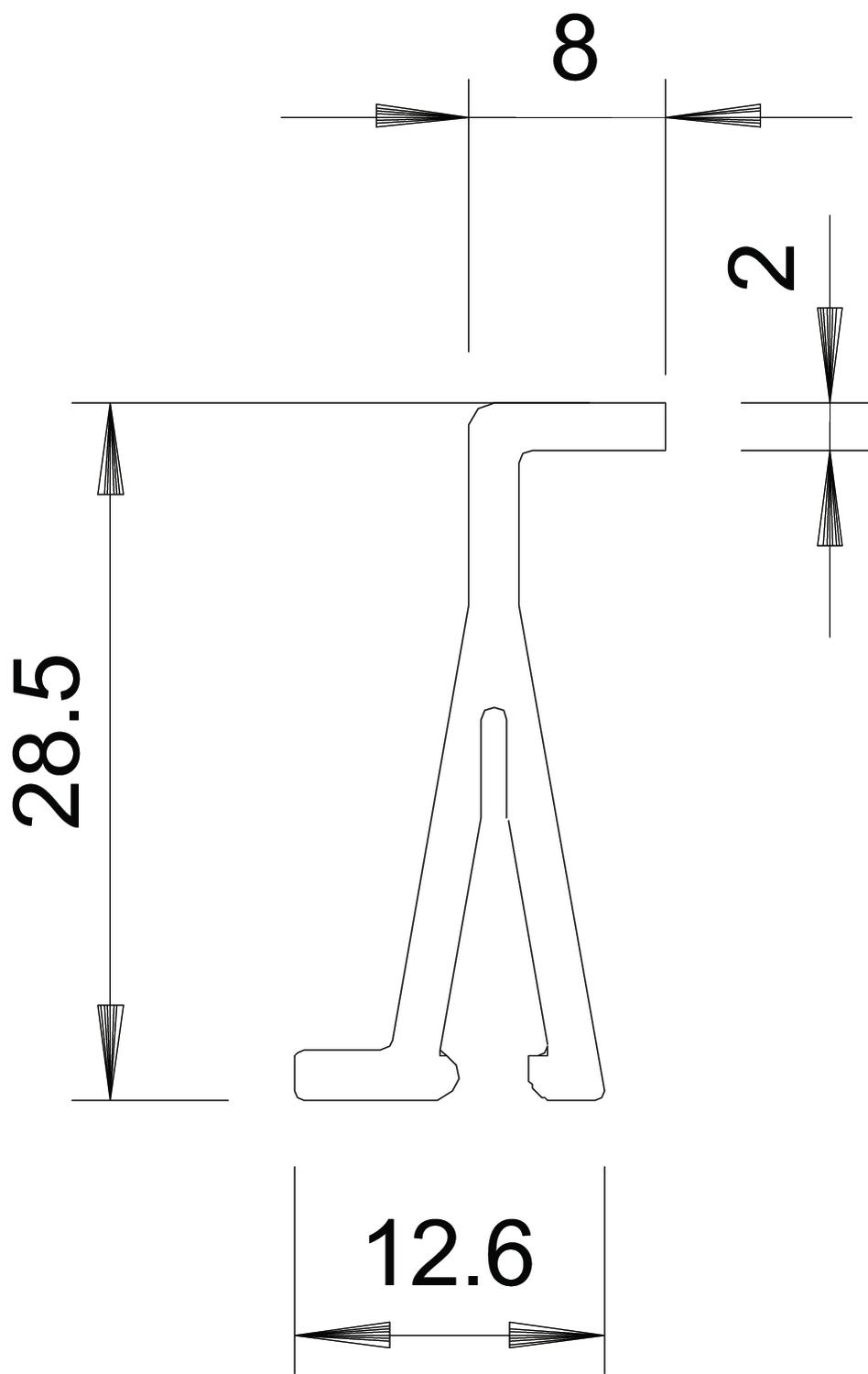

Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 15x28x2000 Dimension a 2000 mm Fastening type Lockable Halogen-free yes Height 28,5 mm Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Self-extinguishing yes Version for Single Width 12,6 mm - All types
- Downloads
-
Data sheet WDKH-TW40LGR / 6175500 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-TW40LGR / 6175500 , 0.10MB , pdfUK Declaration of Conformity WDKH-TW40LGR / 6175500 , 0.14MB , pdfREACH Declaration of conformity WDKH-TW40LGR / 6175500 , 0.12MB , pdfRoHS Declaration of conformity WDKH-TW40LGR / 6175500 , 0.12MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdf
