Partition GA-TW70
Item no. 6279711 | EAN 4012195770039
- Product description
-

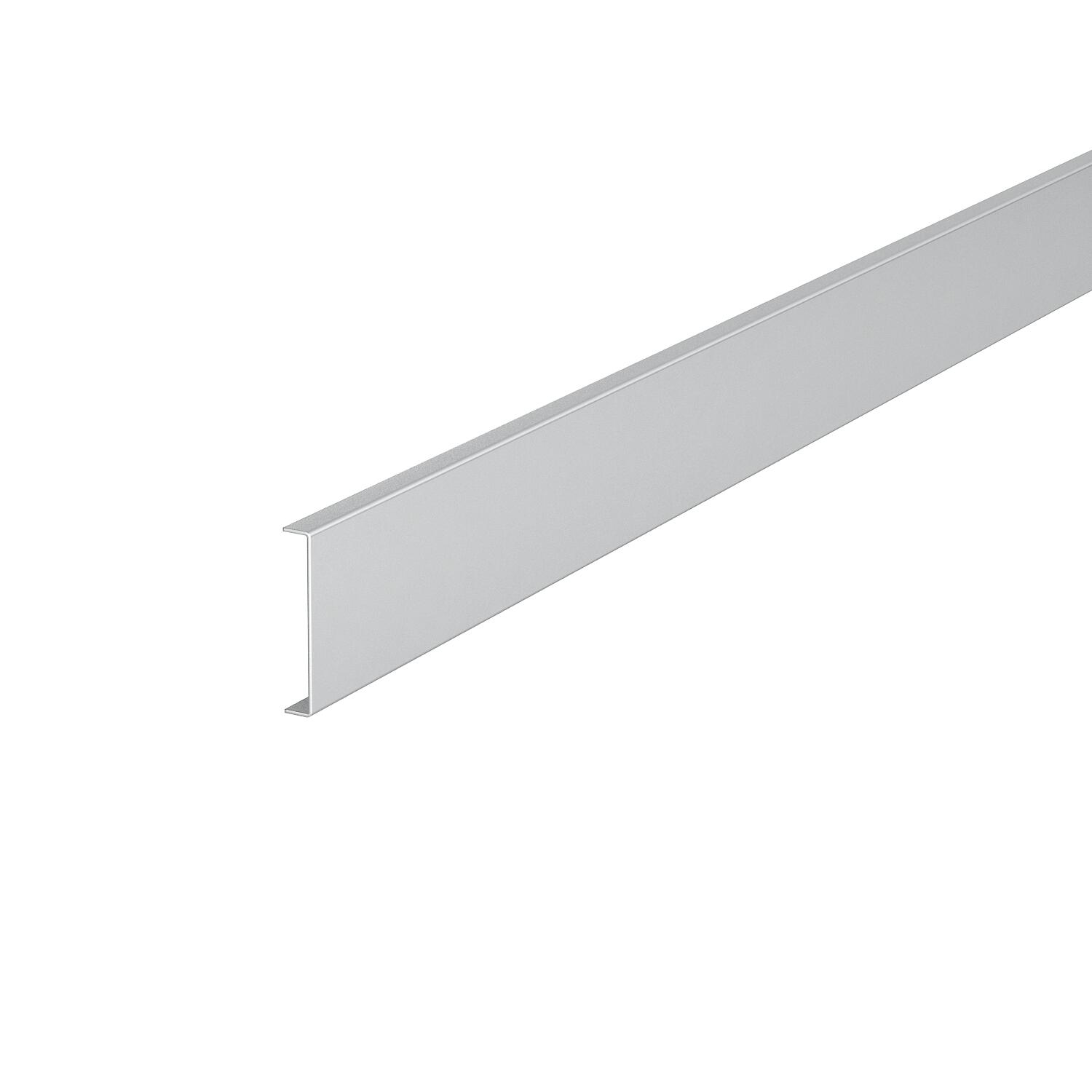

Product descriptionPartition to divide the Rapid 80 GA, Rapid IBIS aluminium device installation trunking and ISS service poles for the installation of different voltage levels.
For vertical mounting of device installation trunking and the installation of ISS service poles, the duct clamps, type KL80A, are required for secure fixing of the partition.
-
- Technical data
-
Technical data
Colour zinc Dimension 8,4x51x2000 Fastening type Insertable Halogen-free yes Height 8,4 mm Length 2000 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Suitable for duct depth 70 Surface Strip galvanized Version for Single Width 51 mm - All types
- Downloads
-
Data sheet GA-TW70 / 6279711 , 0.21MB , pdfEU declaration of conformity GA-TW70 / 6279711 , 0.13MB , pdfUK Declaration of Conformity GA-TW70 / 6279711 , 0.14MB , pdfREACH Declaration of conformity GA-TW70 / 6279711 , 0.27MB , pdfRoHS Declaration of conformity GA-TW70 / 6279711 , 0.28MB , pdfNo invitation to tender text is available for this product.
