- Product description
-
Product description

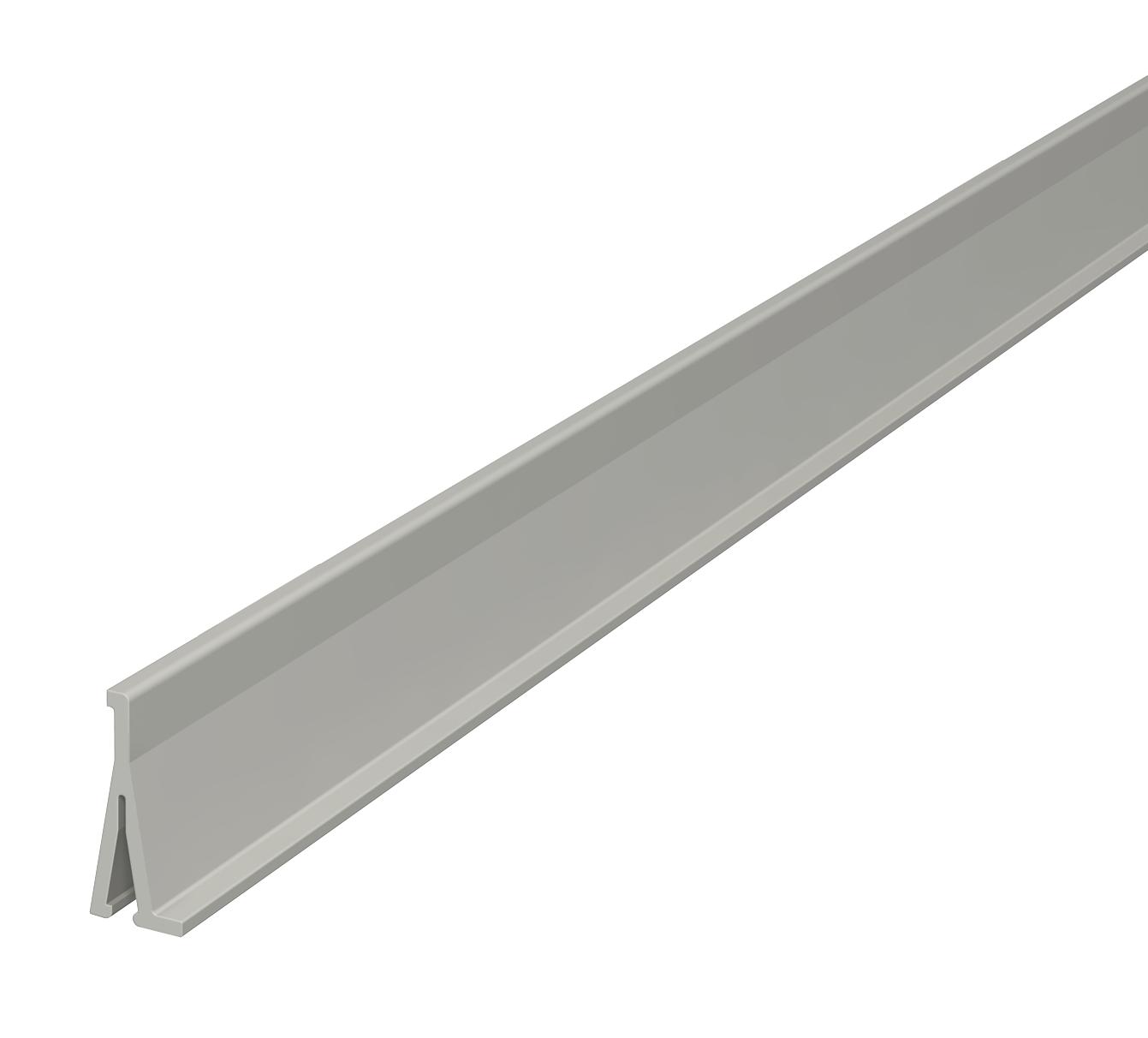

Partition to divide the WDK trunking, with 40 mm trunking height, and various ISS service poles for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
- Technical data
-
Technical data

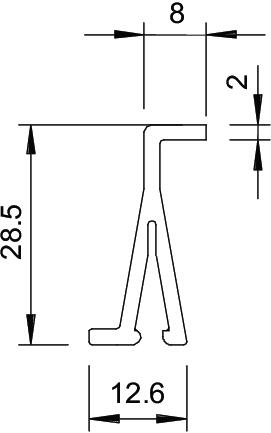

Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 40x2000mm Fastening type Plug-in Halogen-free no Height 28,5 mm Length 2000 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Self-extinguishing yes Trunking depth 40 mm Version for Single Width 12,6 mm - All types
- Downloads
-
Data sheet 2371 40 / 6023096 , 0.17MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity 2371 40 / 6023096 , 0.13MB , pdfUK Declaration of Conformity 2371 40 / 6023096 , 0.14MB , pdfREACH Declaration of conformity 2371 40 / 6023096 , 0.12MB , pdfRoHS Declaration of conformity 2371 40 / 6023096 , 0.12MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdf
