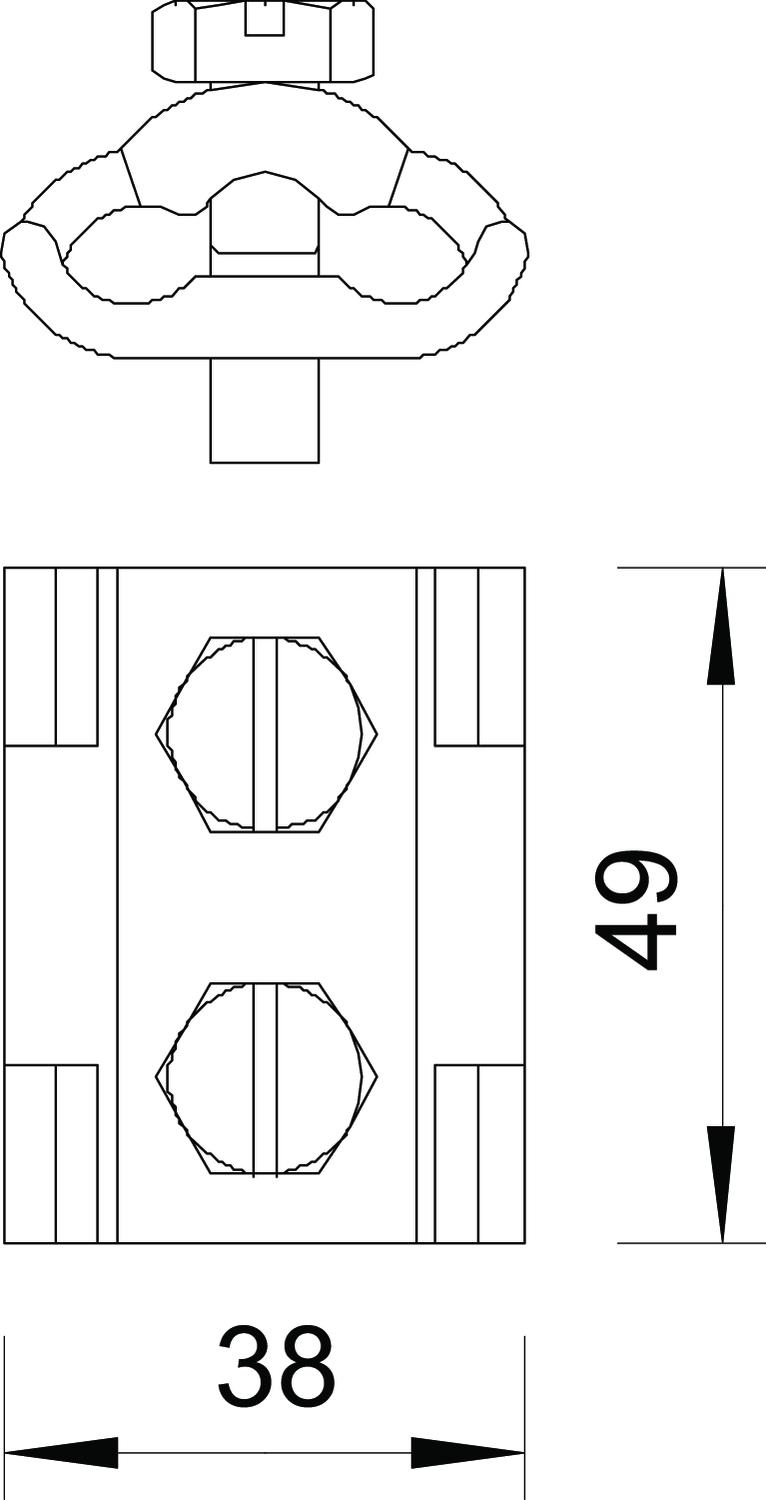

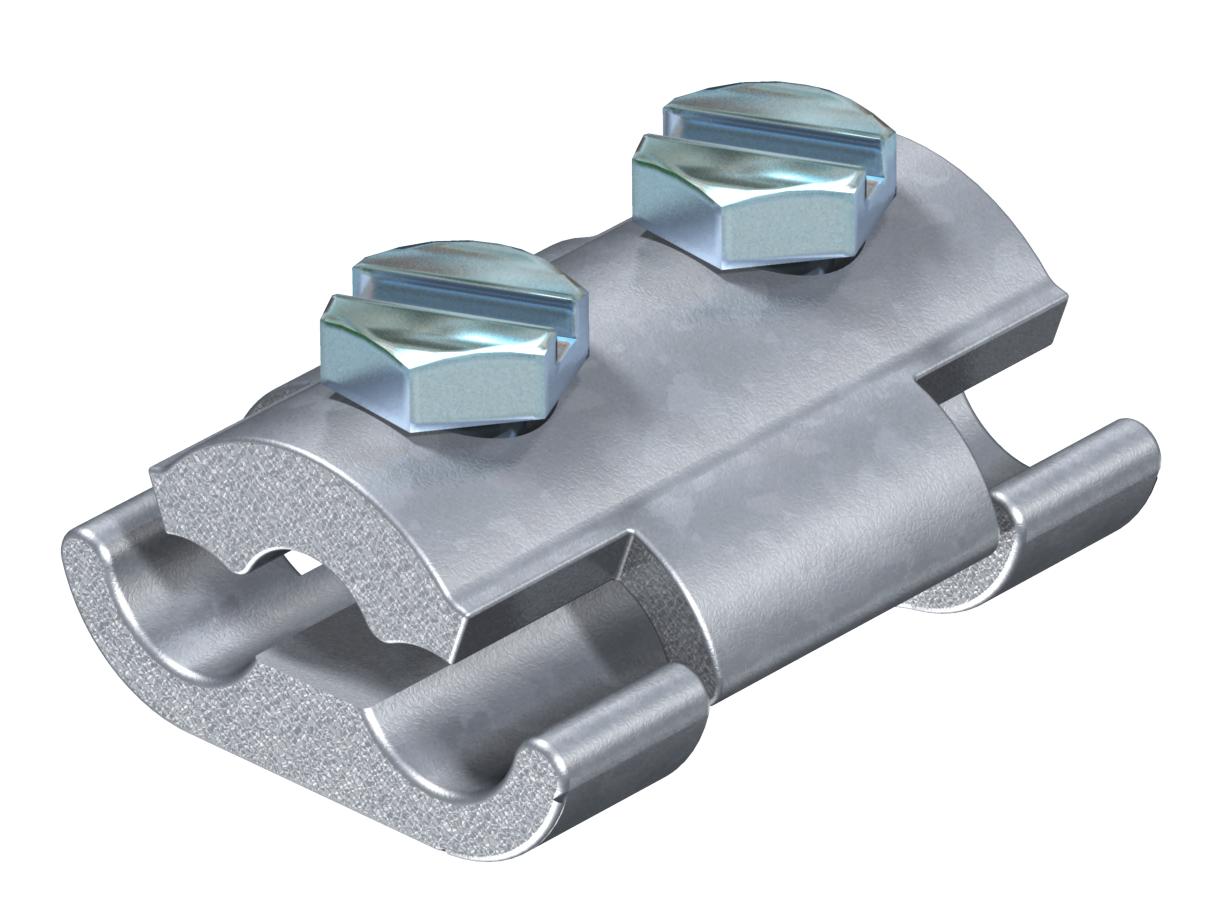

Parallel connector Rd 8−10 mm, M8 x 25
Item no. 5315506 | EAN 4012195419716
- Product description
-
Product description
• With two M8 x 25 hexagonal screws made of steel, zinc/nickel-coated
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material cast steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Zinc / nickel coated Type of connector Parallel connector Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 259 8-10 / 5315506 , 0.16MB , pdfDeclaration of conformity 259 8-10 / 5315506 , 0.06MB , pdfREACH Declaration of conformity 259 8-10 / 5315506 , 0.12MB , pdfRoHS Declaration of conformity 259 8-10 / 5315506 , 0.13MB , pdfMounting instructions Mounting instructions, 259 8-10 parallel connector , 1.00MB , pdf
