Pan head screw, steel 30 | 6 | Screw slot
morepic-1 morepic-2

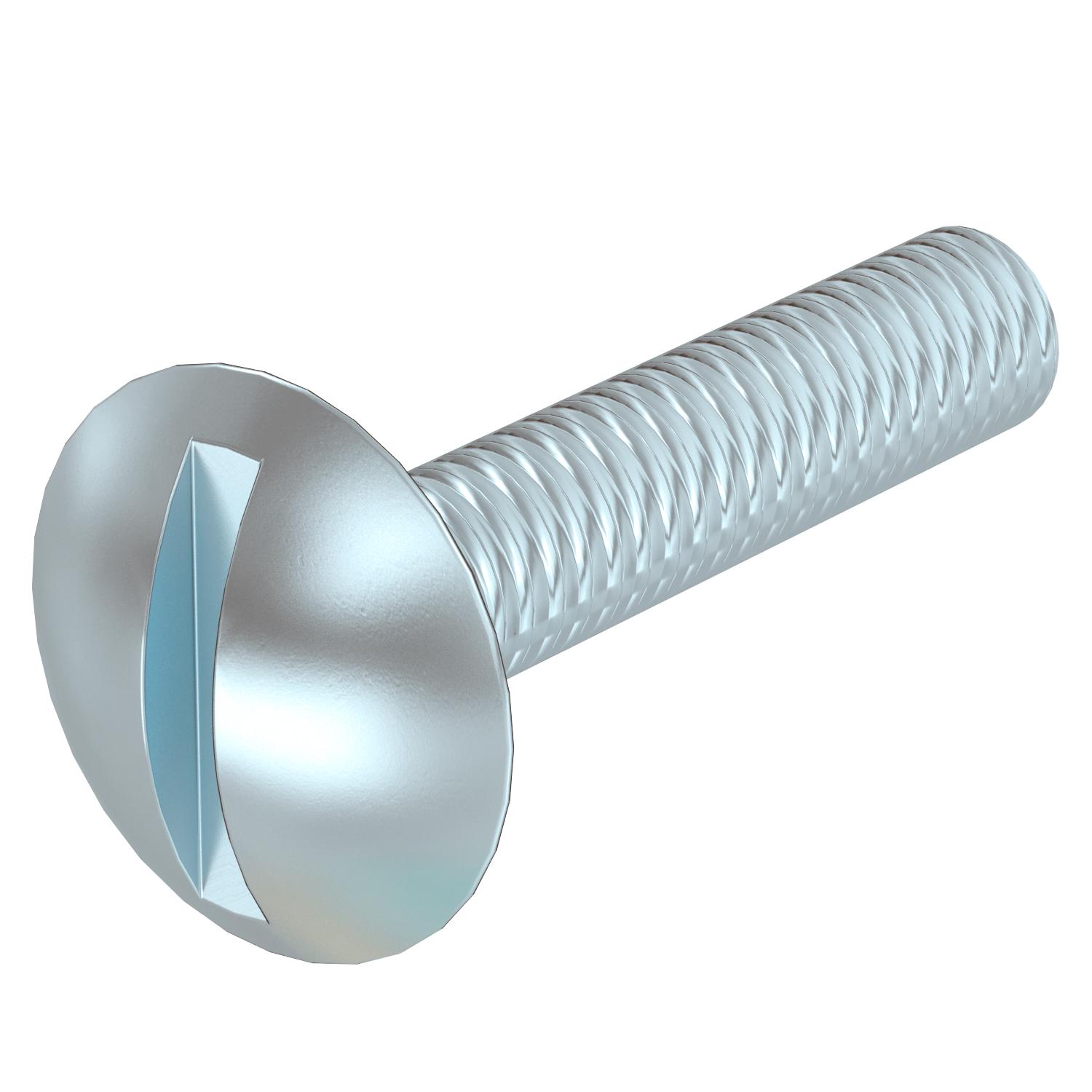

Pan head screw, steel

Item no. 1148898 | EAN 4012196429400

1148898 / BS M6x30 G
30 mm
6
Screw slot
Product description
Product description
The cup screw is used to connect two panels or to fasten cable sections on brackets. The flat, rounded head offers optimum cable protection.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Halogen-free; without chlorine, fluorine and bromine
  • Phillips screw
  • Pozidrive
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,02 kg CO₂e / 1 Piece

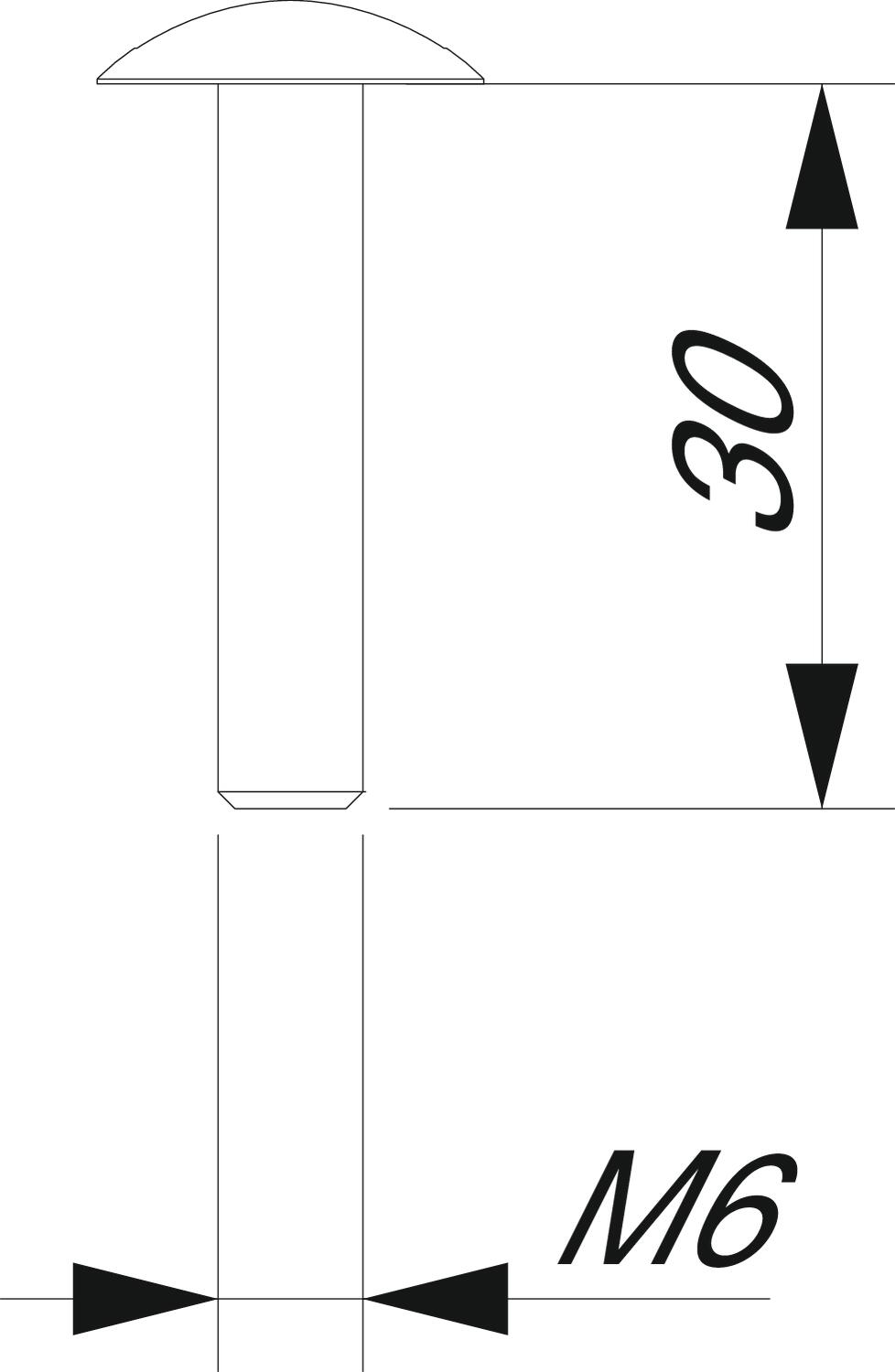

Dimension M6x30
Dimension M6x30
Length 30 mm
Material Steel
Screw system Screw slot
Surface Electrogalvanized
Thread M6
Thread metric 6
All types

All types

Types Length Thread metric Screw system Item no. Quantity SSU
BS M6x30 G 30 mm 6 Screw slot 1148898
100 piece
Downloads

Download

Download

REACH Declaration of conformity BS M6x30 G / 1148898 , 0.13MB , pdf
Download
RoHS Declaration of conformity BS M6x30 G / 1148898 , 0.13MB , pdf
Download

BS M6x30 G / 1148898
Download
