OBO anchor 15 | 4 | | 21

morepic-1

morepic-2

OBO anchor

Item no. 3105016 | EAN 4012195851059

Item no. / Types

Shank length

Dimension d min.	4 mm

Dimension L

Product description

Product description

Hardened steel, shiny without thread.

Technical data

Technical data

Dimension	L15mm
Dimension d min.	4 mm
Dimension L	21 mm
Flange diameter	10 mm

Hardened	yes
Length	21 mm
Material	Steel
Shank length	15

All types

All types

Types	Shank length	Dimension d min.	Dimension L	Item no.	Quantity	SSU
903 RB 15	15	4 mm	21 mm	3105016	piece	200 piece
903 RB 18	18	4 mm	24 mm	3105024	piece	200 piece
903 RB 22	22	4 mm	30 mm	3105032	piece	200 piece

Downloads

Data sheet 903 RB 15 / 3105016 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 903 RB 15 / 3105016 , 0.06MB , pdf

Download

REACH Declaration of conformity 903 RB 15 / 3105016 , 0.12MB , pdf

Download

RoHS Declaration of conformity 903 RB 15 / 3105016 , 0.13MB , pdf

Download

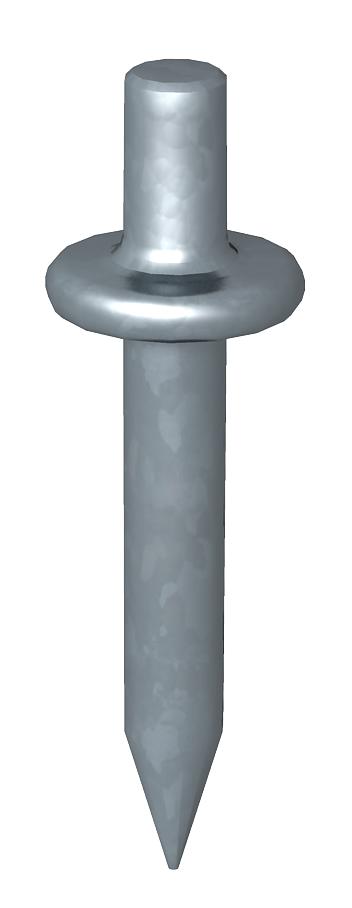

Product graphic 903 RB 15 / 3105016, 14.73 kB, jpg

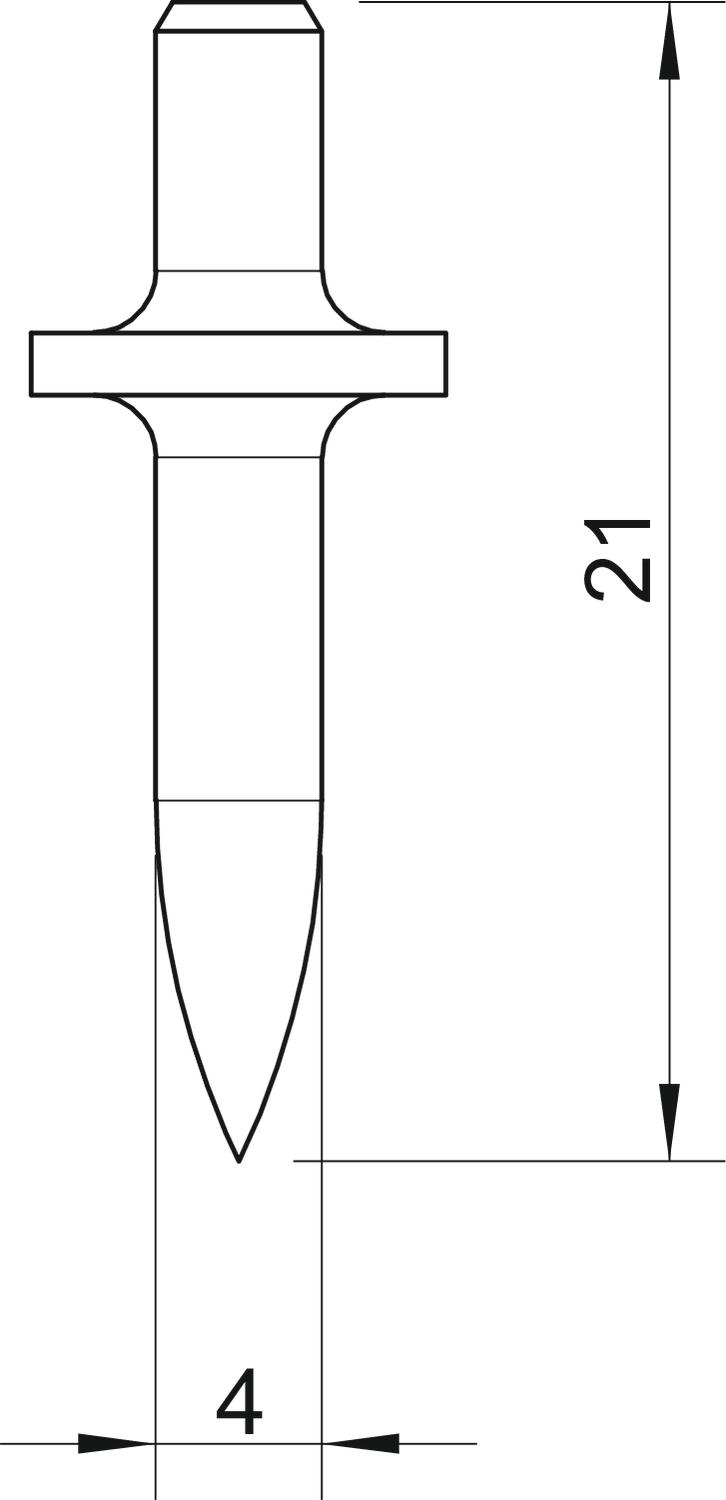

Scale drawing 903 RB 15 / 3105016, 30.00 kB, jpg

903 RB 15 / 3105016
