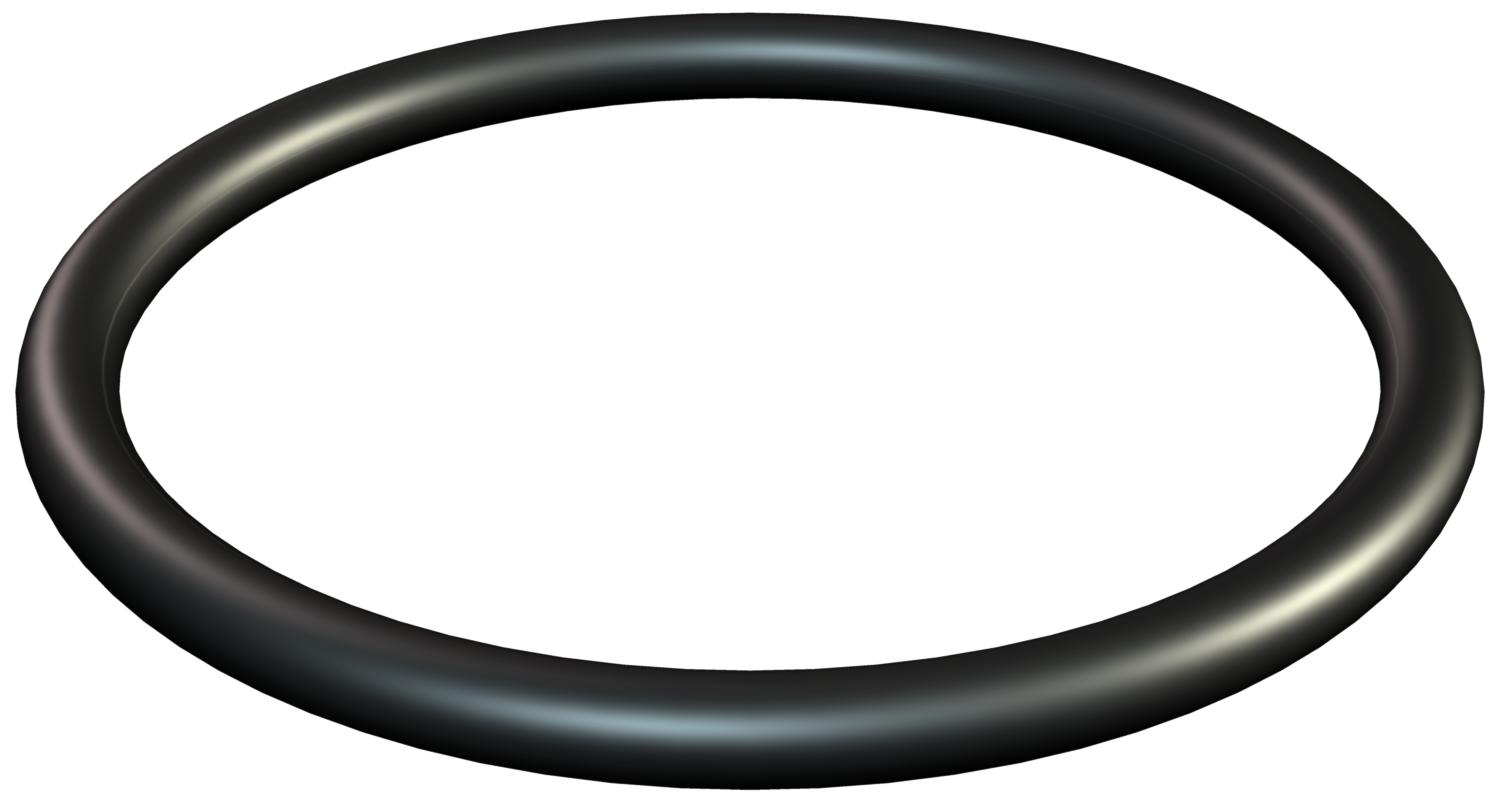

O sealing ring for PG connection thread
Item no. 2088819 | EAN 4012195192190
- Product description
-
Product description
O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with Pg connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
-
- Technical data
-
Technical data

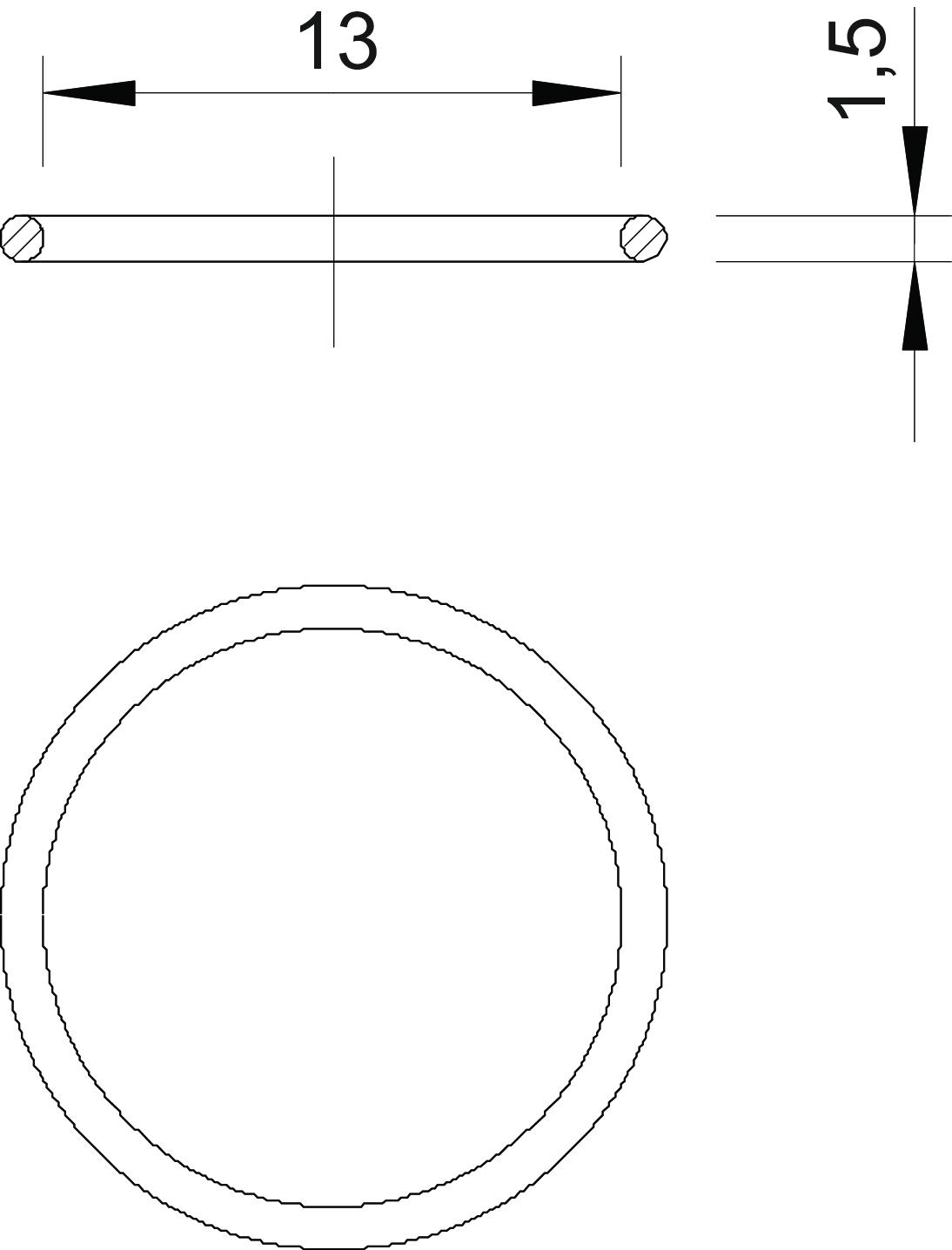

Dimension PG9 Dimension D 13 mm Dimension S 1,5 mm External diameter 14,5 mm Inner diameter 13 mm Material Nitrile rubber Screw for PG thread dimension 9 Thickness 1,5 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 PG 9 / 2088819 , 0.18MB , pdfDeclaration of conformity 171 PG 9 / 2088819 , 0.58MB , pdfREACH Declaration of conformity 171 PG 9 / 2088819 , 0.12MB , pdfRoHS Declaration of conformity 171 PG 9 / 2088819 , 0.12MB , pdf
